E03 — Piston ● Crankshaft

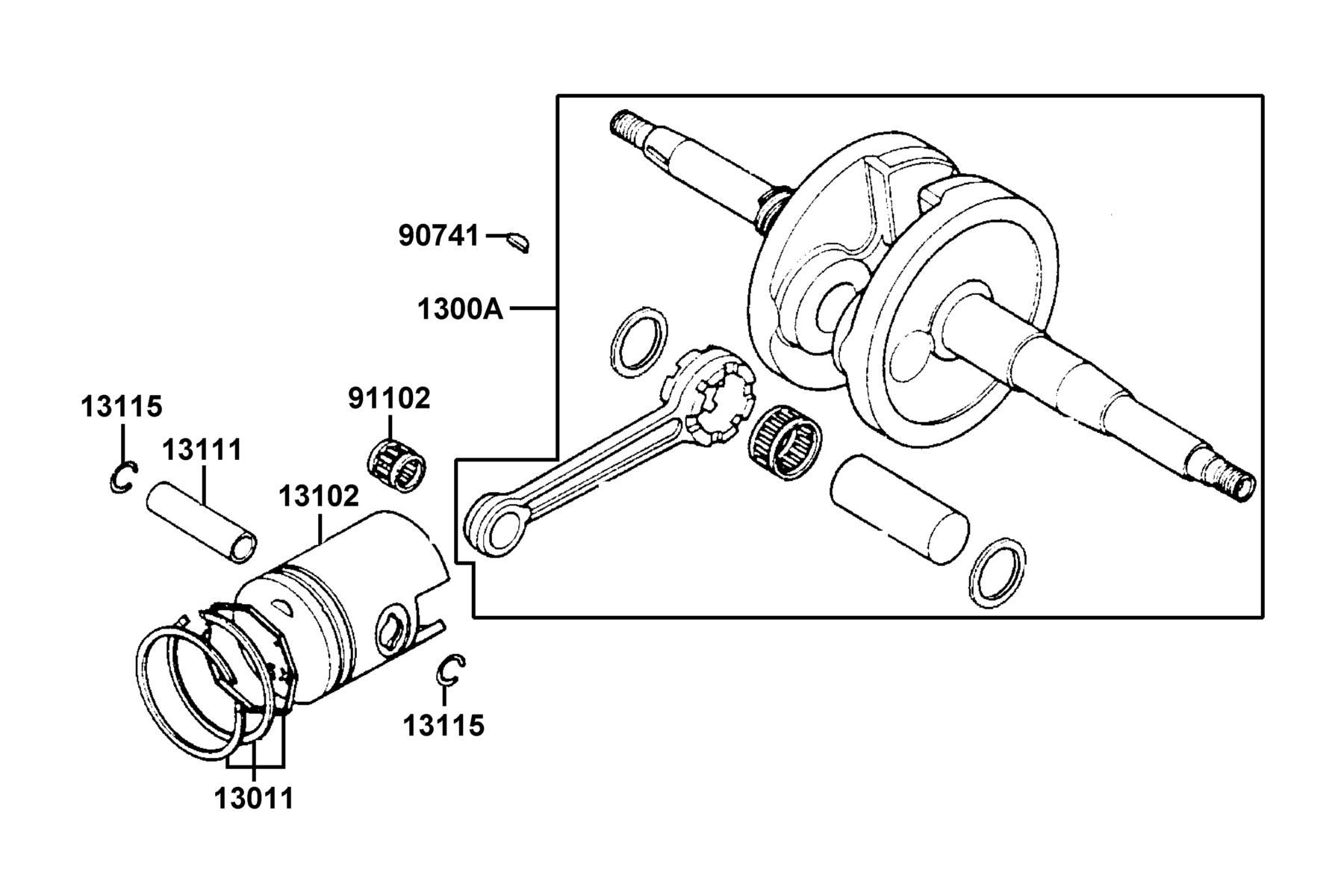

The Piston ● Crankshaft diagram contains 8 genuine OEM parts for the KYMCO LIKE 50 LX(2012~). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 1300A-GKAK-C00 | CRANK SHAFT ASSY | 1 | $248.37 USD | View product → | |
| 2 | 13011-GLW0-C00 | RING ASSY PISTON | 1 | $63.78 USD | View product → | |
| 3 | 13102-GLW0-901 | PISTON | 1 | $109.77 USD | View product → | |
| 4 | 13111-1F66-001 | PIN PISTON | 1 | $28.35 USD | View product → | |
| 5 | 13111-1F66-001(wrong) | PIN PISTON | 1 | $21.81 USD | View product → | |
| 6 | 13115-1F56-C00 | CLIP PISTON PIN 12MM | 1 | $4.26 USD | View product → | |
| 7 | 90741-0E35-C00 | KEY WOODRUFF | 1 | $20.79 USD | View product → | |
| 8 | 91102-GLW0-C00 | BRG CON-ROD S.E | 1 | $12.12 USD | View product → |
