E02 — Cylinder Head Cover ● Cylinder Head

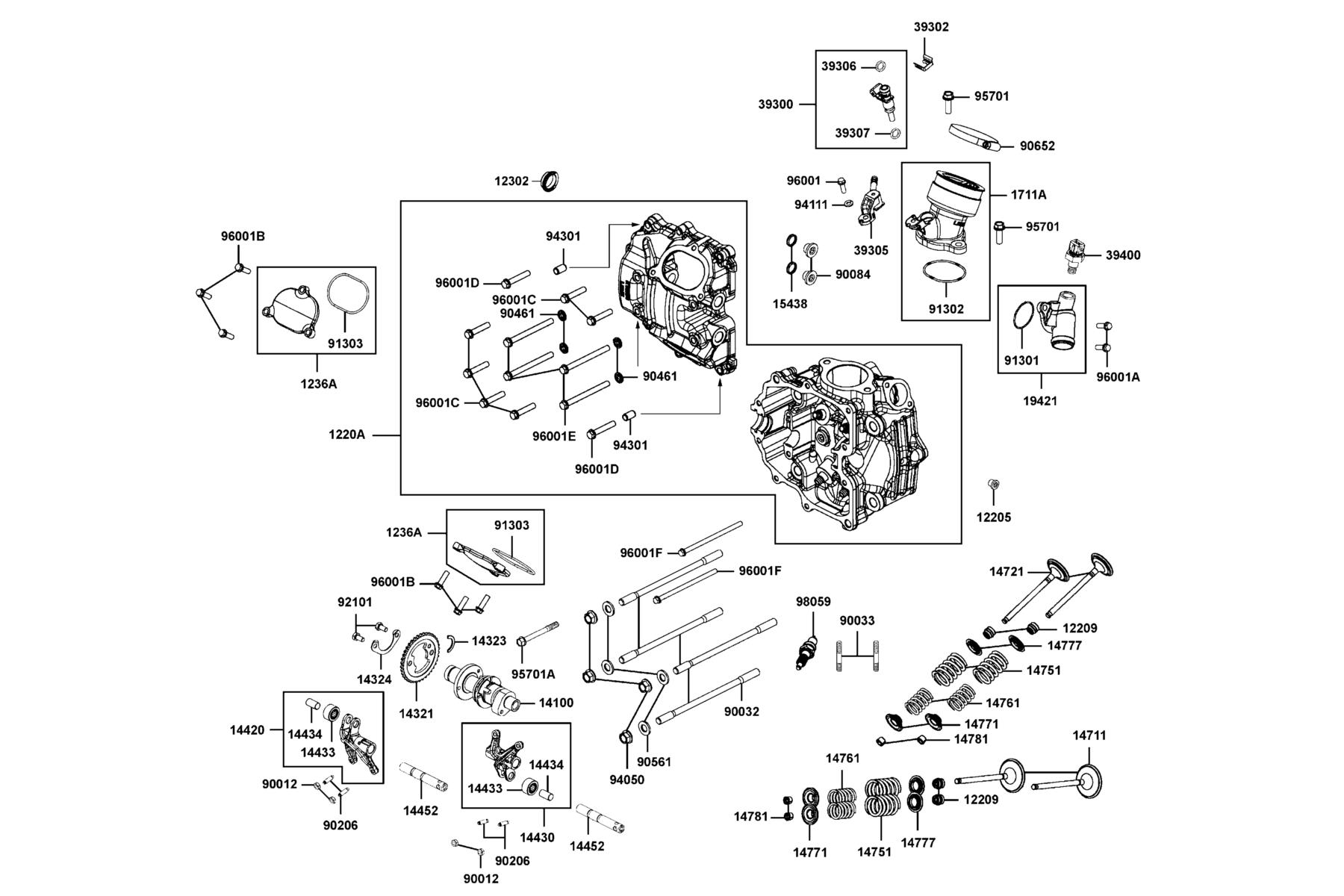

The Cylinder Head Cover ● Cylinder Head diagram contains 55 genuine OEM parts for the KYMCO UXV 700I (OFF ROAD) 2025 EPA. Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 12205-KHE8-301 | BOLT SEALING 12MM | 1 | $13.17 USD | View product → | |
| 2 | 12209-PUA5-E00 | Valve Stem Seal 6mm | 4 | $18.93 USD | View product → | |
| 3 | 1220A-LKM8-900 | HEAD ASSY CYLINDER | 1 | $739.16 USD | View product → | |
| 4 | 12302-PTA1-900 | PLUG HEAD | 1 | $48.00 USD | View product → | |
| 5 | 1236A-LKM5-E00 | HOLDER CAP ASSY TAPPET ADJUSTER | 2 | $59.82 USD | View product → | |
| 6 | 14100-LKM5-E00 | SHAFT COMP CAM | 1 | $560.28 USD | View product → | |
| 7 | 14321-LKM5-E00 | SPROCKET CAM SHAFT | 1 | $96.06 USD | View product → | |
| 8 | 14323-PWB1-900 | C-RING CAM RETAINER | 1 | $5.31 USD | View product → | |
| 9 | 14324-PWB1-900 | WASHER LOCK CAMSHAFT | 1 | $8.28 USD | View product → | |
| 10 | 14420-LKM5-E00 | ARM COMP EXH VALVE ROCKER | 1 | $173.31 USD | View product → | |
| 11 | 14430-LKM5-E00 | ARM COMP IN VALVE ROCKER | 1 | $173.31 USD | View product → | |
| 12 | 14433-LKM5-E00 | ARM VALVE ROCKER | 2 | $108.03 USD | View product → | |
| 13 | 14434-LKM5-E00 | PIN. ROCKER ARM | 2 | $47.22 USD | View product → | |
| 14 | 14452-LKM5-E00 | SHAFT. EXH. ROCKER ARM | 2 | $124.14 USD | View product → | |
| 15 | 14711-LKM5-E00 | VALVE. INLET | 2 | $96.90 USD | View product → | |
| 16 | 14721-LKM5-E00 | VALVE. EXHAUST | 2 | $142.59 USD | View product → | |
| 17 | 14751-LEH6-E00 | SPRING. OUTER VALVE | 4 | $31.44 USD | View product → | |
| 18 | 14761-LEH6-E00 | SPRING INNER VALVE | 4 | $13.95 USD | View product → | |
| 19 | 14771-LKM5-E00 | RETAINER VALVE SPRING | 4 | $42.48 USD | View product → | |
| 20 | 14777-LKM5-E00 | SEAT. VALVE SPRING | 4 | $29.01 USD | View product → | |
| 21 | 14781-LKM5-E00 | COTTER VALVE | 1 | $11.19 USD | View product → | |
| 22 | 15438-PWB1-900 | GASKET METAL COMPRESSION | 2 | $38.64 USD | View product → | |
| 23 | 1711A-LKM5-900 | PIPE ASSY INLET | 1 | $163.08 USD | View product → | |
| 24 | 19421-LKM5-E00 | JOINT COMP.. WATER HOSE | 1 | $73.38 USD | View product → | |
| 25 | 39300-LKM5-E00 | FUEL INJECTOR | 1 | $368.64 USD | View product → | |
| 26 | 39302-KKE3-900 | CLIP SPRING FUEL INJECTOR | 1 | $21.99 USD | View product → | |
| 27 | 39305-LKM5-E00 | HOLDER FUEL INJECTOR | 1 | $67.17 USD | View product → | |
| 28 | 39306-LEB2-305 | O-RING A INJECTOR /BLACK | 1 | $30.69 USD | View product → | |
| 29 | 39307-LEB2-305 | O-RING B INJECTOR /GREEN | 1 | $27.66 USD | View product → | |
| 30 | 39400-LEA6-800 | WATER TEMP SENSOR | 1 | $109.50 USD | View product → | |
| 31 | 90012-LKF5-E00 | SCREW TAPPET ADJUSTING | 4 | $34.92 USD | View product → | |
| 32 | 90032-LKM5-E00 | BOLT B STUD | 4 | $53.16 USD | View product → | |
| 33 | 90033-KGB4-C00 | BOLT STUD M8X40 (C) | 2 | $14.31 USD | View product → | |
| 34 | 90206-001-0010 | NUT TAPPET ADJG | 4 | $3.78 USD | View product → | |
| 35 | 90206-0A01-001 | NUT TAPPET ADJG | 4 | $4.92 USD | View product → | |
| 36 | 90461-AGA5-M00 | WASHER SEALING | 4 | $5.22 USD | View product → | |
| 37 | 90561-PWB1-900 | WASHER 21X10X2.2 | 4 | $5.31 USD | View product → | |
| 38 | 90652-LKM5-E00 | C-HOPE(50~70) | 1 | $37.80 USD | View product → | |
| 39 | 91301-KKE5-E00 | O RING 28.8x2.4 | 1 | $25.35 USD | View product → | |
| 40 | 91302-LKM5-E00 | O-RING | 1 | $0.78 USD | View product → | |
| 41 | 91303-LKM5-E00 | ORING INSPECTION CAP | 2 | $22.86 USD | View product → | |
| 42 | 92101-06012-0HN | BOLT HEX 6X12 | 2 | $4.92 USD | View product → | |
| 43 | 94050-10060 | NUT FLANGE 10MM | 4 | $5.67 USD | View product → | |
| 44 | 94111-06800 | WASHER SPRING 6MM | 1 | $4.92 USD | View product → | |
| 45 | 94301-08140 | DOWEL PIN 8*14 | 2 | $3.00 USD | View product → | |
| 46 | 95701-08025-06 | BOLT FLANGE 8*25 | 1 | $5.31 USD | View product → | |
| 47 | 95701-08035-06 | BOLT FLANGE 8*35 | 1 | $5.88 USD | View product → | |
| 48 | 96001-06016-06 | BOLT FLANGE SH 6X16 | 1 | $12.12 USD | View product → | |
| 49 | 96001-06018-06 | BOLT FLANGE SH 6*18 | 1 | $12.12 USD | View product → | |
| 50 | 96001-06020-06 | BOLT FLANGE SH 6*20 | 1 | $3.27 USD | View product → | |
| 51 | 96001-06030-06 | BOLT FLANGE SH 6X30 | 1 | $4.92 USD | View product → | |
| 52 | 96001-06035-06 | BOLT FLANGE SH 6*35 | 1 | $3.93 USD | View product → | |
| 53 | 96001-06120-06 | BOLT FLANGE SH 6*120 | 1 | $3.54 USD | View product → | |
| 54 | 96001-AGA5-M00 | BOLT FLANGE SH 6X70 | 4 | $5.58 USD | View product → | |
| 55 | 98059-57916-00 | SPARK PLUG (CR7E) | 1 | $38.37 USD | View product → |
