F21 — Frame Body

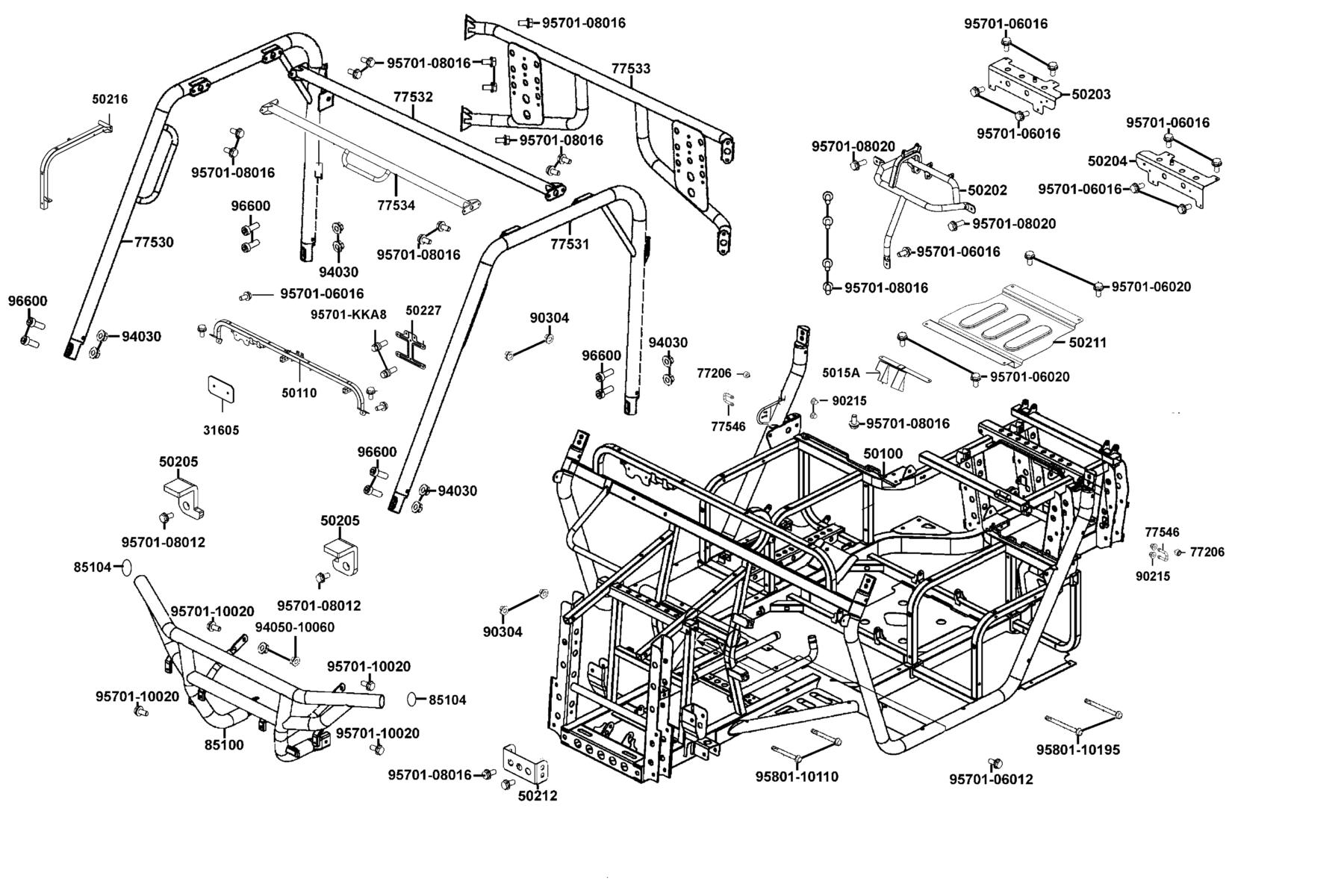

The Frame Body diagram contains 36 genuine OEM parts for the KYMCO UXV 700I (OFF ROAD) 2025 EPA. Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 31605-LKM8-E00 | STAY REG REC COMP | 1 | $54.36 USD | View product → | |
| 2 | 50100-AGA5-M00-M2S | BODY COMP FRAME | 1 | $2904.58 USD | View product → | |
| 3 | 50110-LKM8-700 | SUB CROSS PIPE FRAME | 1 | $315.93 USD | View product → | |
| 4 | 5015A-LKM8-F20 | STAY， PROTECTOR ASSY. | 1 | $108.39 USD | View product → | |
| 5 | 50202-AGA6-M00 | PIPE COMP ENGINE FRONT | 1 | $151.26 USD | View product → | |
| 6 | 50203-LEE8-E00 | BRKT R SEAT UPPER | 1 | $126.39 USD | View product → | |
| 7 | 50204-LEE8-E00 | BRKT L SEAT UPPER | 1 | $126.39 USD | View product → | |
| 8 | 50205-LEE8-E00 | STAY LATCH | 2 | $17.82 USD | View product → | |
| 9 | 50211-LKM8-F20 | BRKT PROTECTOR | 1 | $73.53 USD | View product → | |
| 10 | 50212-LEE8-E00 | BRKT DIFFERENTIAL GEAR | 1 | $35.25 USD | View product → | |
| 11 | 50216-LKM8-700 | SUPPORT PIPE SEAT INSIDE | 1 | $153.06 USD | View product → | |
| 12 | 50227-LKA8-E00 | STAY. ECU | 1 | $35.85 USD | View product → | |
| 13 | 77206-LKB9-900 | RUBBER SEAT CUSH | 2 | $4.77 USD | View product → | |
| 14 | 77530-AGA5-M00 | R PIPE ASSY ROOF | 1 | $481.38 USD | View product → | |
| 15 | 77531-AGA5-M00 | L PIPE ASSY ROOF | 1 | $442.88 USD | View product → | |
| 16 | 77532-LKM8-E00 | CROSS PIPE COMP ROOF | 1 | $111.96 USD | View product → | |
| 17 | 77533-LKM8-E00-MAS | REAR PIPE COMP. ROOF | 1 | $408.87 USD | View product → | |
| 18 | 77534-LKM8-E00 | CROSS PIPE COMP FR ROOF | 1 | $120.30 USD | View product → | |
| 19 | 77546-AGA5-M00 | HOOK. DOOR | 2 | $24.21 USD | View product → | |
| 20 | 85100-AGA6-M00 | PIPE COMP FR BUMPER | 1 | $406.86 USD | View product → | |
| 21 | 85104-LEE8-E00 | CAP BUMPER | 2 | $9.78 USD | View product → | |
| 22 | 90215-KKC4-900 | NUT CAP 6MM | 4 | $5.67 USD | View product → | |
| 23 | 90304-GLW0-90A | NUT U FLANGE 10MM | 4 | $9.39 USD | View product → | |
| 24 | 94030-10080 | NUT HEX 10MM | 8 | $12.09 USD | View product → | |
| 25 | 94050-10060 | NUT FLANGE 10MM | 2 | $5.67 USD | View product → | |
| 26 | 95701-06012-06 | BOLT FLANGE 6X12 | 1 | $1.86 USD | View product → | |
| 27 | 95701-06016-06 | BOLT FLANGE 6X16 | 13 | $1.65 USD | View product → | |
| 28 | 95701-06020-06 | BOLT FLANGE 6*20 | 4 | $2.25 USD | View product → | |
| 29 | 95701-08012-06 | BOLT FLANGE 8*12 | 2 | $6.24 USD | View product → | |
| 30 | 95701-08016-06 | BOLT FLANGE 8*16 | 19 | $4.53 USD | View product → | |
| 31 | 95701-08020-06 | BOLT FLANGE 8*20 | 2 | $3.78 USD | View product → | |
| 32 | 95701-10020-06 | BOLT FLANGE 10*20 | 4 | $6.24 USD | View product → | |
| 33 | 95701-KKA8-900 | BOLT TORQUE 6X10 | 2 | $17.82 USD | View product → | |
| 34 | 95801-10110-06 | BOLT FLANGE 10*110 | 2 | $16.38 USD | View product → | |
| 35 | 95801-10195-06 | BOLT FLANGE 10*195 | 2 | $21.81 USD | View product → | |
| 36 | 96600-10028-06 | SOCKET BOLT 10X28 | 8 | $6.24 USD | View product → |
