F09 — Seat

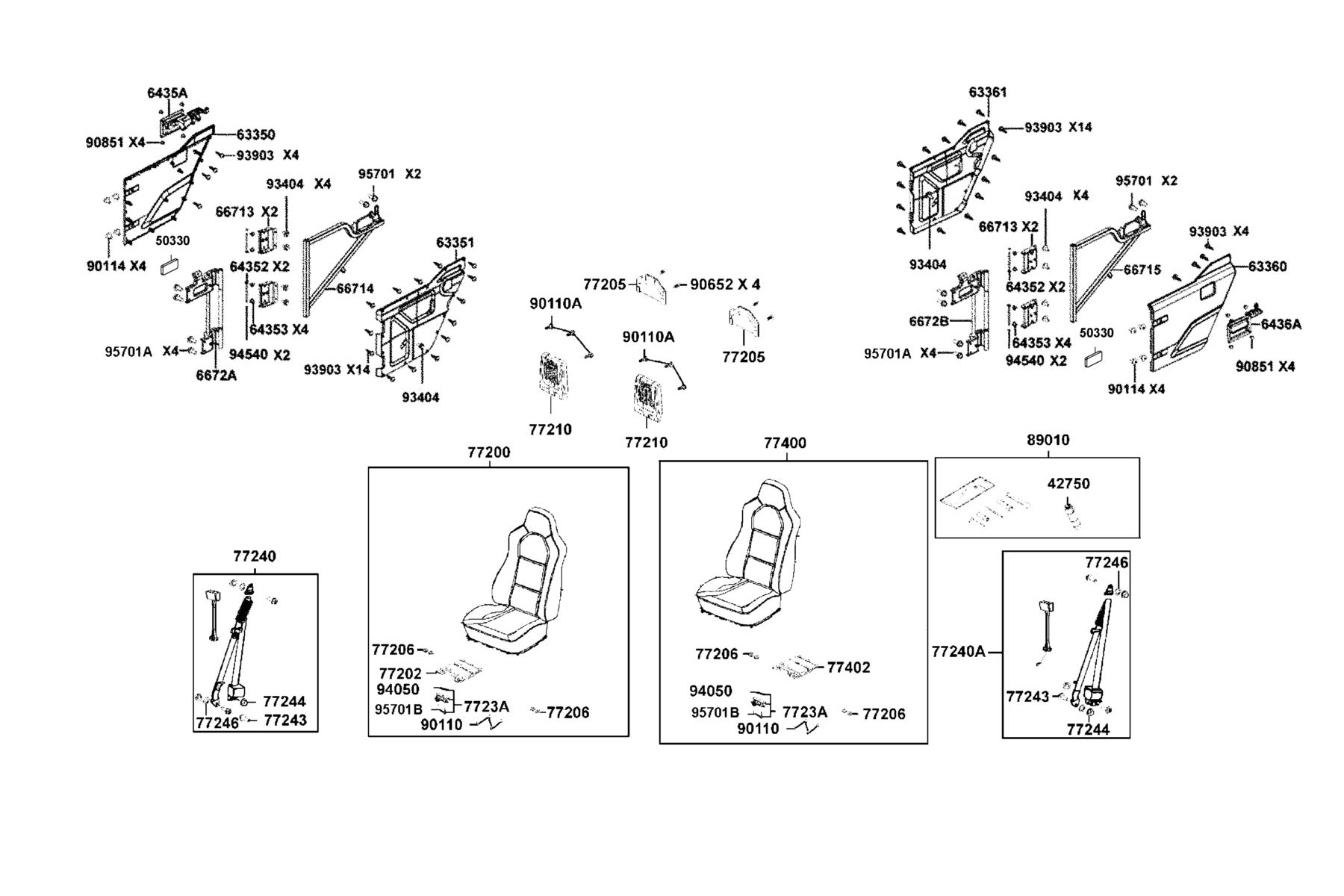

The Seat diagram contains 37 genuine OEM parts for the KYMCO UXV 700I (OFF ROAD) 2025 EPA. Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 42750-LEE8-E0A | GAUGE??? AIR PRESSURE | 1 | $77.07 USD | View product → | |
| 2 | 50330-AGA5-M00 | SPONGE FRAME | 2 | — | Part details → | |
| 3 | 64352-ZVA6-M00 | SHAFT??? DOOR HINGE | 4 | $17.34 USD | View product → | |
| 4 | 64353-ZVA6-M00 | DOOR BUSH | 8 | $17.34 USD | View product → | |
| 5 | 6435A-ZVA6-M00 | DOOR LATCH ASSY R | 1 | $122.85 USD | View product → | |
| 6 | 6436A-ZVA6-M00 | DOOR LATCH ASSY. L | 1 | $123.21 USD | View product → | |
| 7 | 66713-AGA5-M00 | BRKT DOOR HINGE | 4 | $40.71 USD | View product → | |
| 8 | 66714-AGA5-M00 | R PIPE COMP DOOR | 1 | — | Part details → | |
| 9 | 66715-AGA5-M00 | L PIPE COMP DOOR | 1 | $241.59 USD | View product → | |
| 10 | 6672A-AGA5-M00 | BRKT R COMP DOOR | 1 | — | Part details → | |
| 11 | 6672B-AGA5-M00 | BRKT L. COMP DOOR | 1 | — | Part details → | |
| 12 | 77200-ADG8-E01-T01 | SEAT ASSY R | 1 | $685.80 USD | View product → | |
| 13 | 77202-LEE8-800 | BOTTOM PLATE R SEAT | 1 | $101.88 USD | View product → | |
| 14 | 77205-ADG8-E00 | RUBBER ROLL CAGE | 2 | $15.72 USD | View product → | |
| 15 | 77206-LBA7-900 | RUBBER SEAT CUSH | 8 | $7.53 USD | View product → | |
| 16 | 77210-LEE8-900-T01 | HEADREST | 2 | $63.54 USD | View product → | |
| 17 | 7723A-LEE8-305 | LOCK ASSY SEAT | 2 | $123.42 USD | View product → | |
| 18 | 77240-AGA5-E00 | BELT SAFETY | 1 | $359.94 USD | View product → | |
| 19 | 77240-AGA5-M00 | BELT SAFETY | 1 | $359.94 USD | View product → | |
| 20 | 77243-LEE8-E00 | BOLT | 6 | $14.79 USD | View product → | |
| 21 | 77244-LEE8-E00 | NUT FLANGE | 8 | $4.92 USD | View product → | |
| 22 | 77246-LEE8-E00 | WASHER SPRING | 8 | $4.59 USD | View product → | |
| 23 | 77400-AGA5-M01-T01 | SEAT ASSY L | 1 | $685.80 USD | View product → | |
| 24 | 77402-LEE8-800 | BOTTOM PLATE L SEAT | 2 | $103.65 USD | View product → | |
| 25 | 89010-LEE8-E00 | TOOL SET | 1 | $122.46 USD | View product → | |
| 26 | 90110-ADG8-E00 | BOLT SPECIAL M8 | 8 | $7.53 USD | View product → | |
| 27 | 90110-PWB1-900 | SCREW SPECIAL 6X20 | 6 | $7.17 USD | View product → | |
| 28 | 90114-KED9-900 | CLIP MUDGUARD | 8 | $6.78 USD | View product → | |
| 29 | 90652-PWB1-900 | X'MAS TREE CLIP | 4 | $5.31 USD | View product → | |
| 30 | 90851-ZVA6-M00 | RIVET 4.8*12.8 | 8 | $2.19 USD | View product → | |
| 31 | 93404-06020-06 | BOLT WASHER 6X20 | 10 | $3.00 USD | View product → | |
| 32 | 93903-25260 | SCREW TAPPING 5*12 | 36 | $1.86 USD | View product → | |
| 33 | 94050-LEE8-E00 | NUT FLANGE 6MM | 4 | $6.06 USD | View product → | |
| 34 | 94540-04029 | E RING 4 | 2 | — | Part details → | |
