F03 — Fender Fr

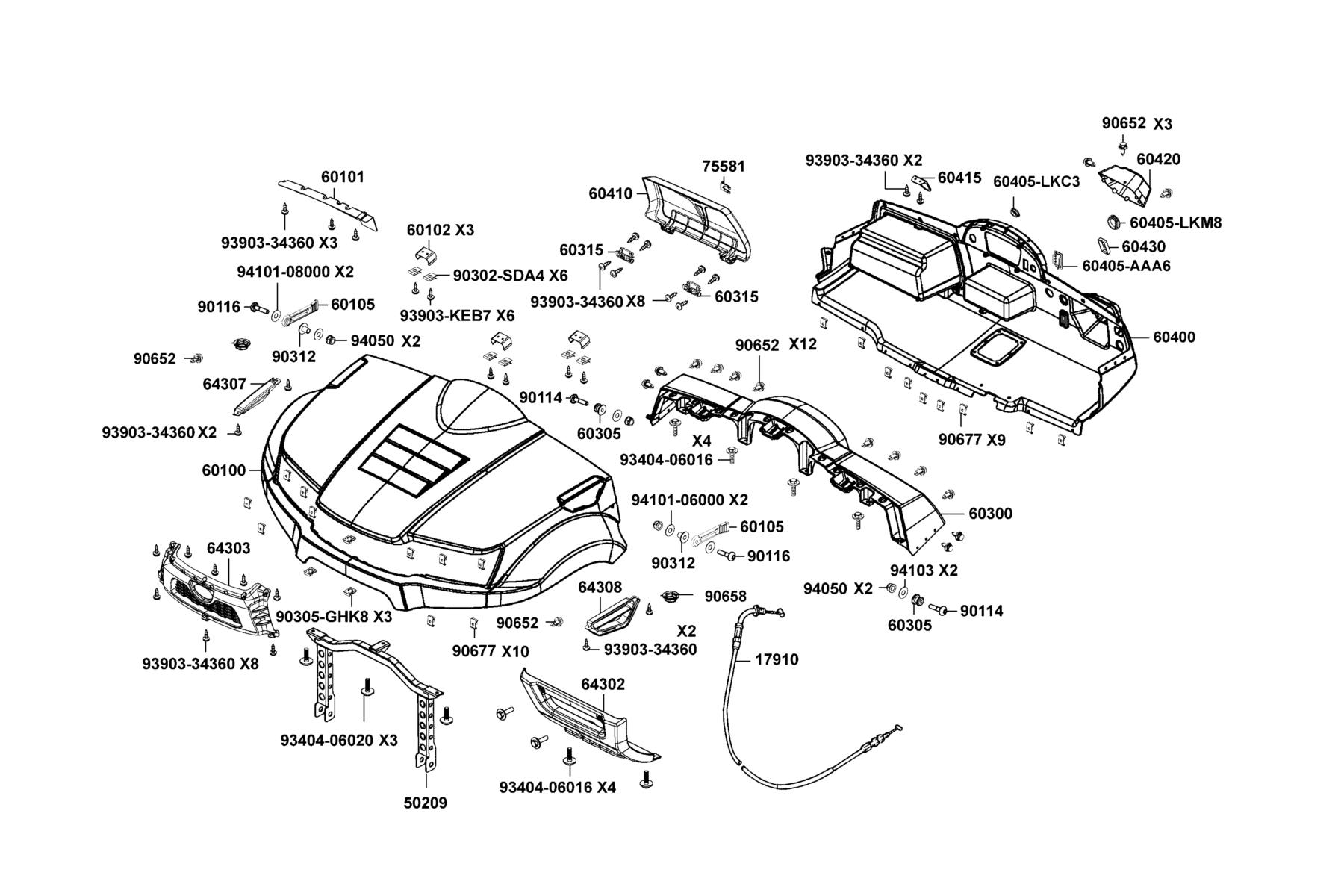

The Fender Fr diagram contains 37 genuine OEM parts for the KYMCO UXV 700I (OFF ROAD) 2025 EPA. Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 17910-LKM8-700 | CABLE COMP THROT | 1 | $110.73 USD | View product → | |
| 2 | 50209-LKM8-700 | BRKT FRONT FENDER | 1 | $160.26 USD | View product → | |
| 3 | 60100-LKM8-900-CXR | FENDER FRONT | 1 | $407.66 USD | View product → | |
| 4 | 60101-LKM8-900-N1R | PANEL SPLASH (Black) | 1 | $26.22 USD | View product → | |
| 5 | 60102-LKM8-900 | CLIP FENDER | 3 | $12.93 USD | View product → | |
| 6 | 60105-LEE8-E00 | LATCH FR FENDER | 2 | $9.15 USD | View product → | |
| 7 | 60300-LKM8-900-CXR | TOP COVER FRONT PANEL | 1 | $174.12 USD | View product → | |
| 8 | 60305-LEE8-E00 | LATCH HOLDER | 2 | $3.36 USD | View product → | |
| 9 | 60315-LEE8-E00 | HINGE LID | 2 | $23.43 USD | View product → | |
| 10 | 60400-AGA5-M00-N1R | PANEL FRONT (Black) | 1 | $315.45 USD | View product → | |
| 11 | 60405-AAA6-900 | CAP COVER | 1 | $77.91 USD | View product → | |
| 12 | 60405-LKC3-E00 | GROMMET.CHOCK HOLE | 1 | $5.79 USD | View product → | |
| 13 | 60405-LKM8-900 | GROMMET COVER | 1 | $6.69 USD | View product → | |
| 14 | 60410-LEE8-E01-N1R | LID GLOVE BOX (Black) | 1 | $46.74 USD | View product → | |
| 15 | 60415-LEE8-E00 | BRACKET COVER | 1 | $4.29 USD | View product → | |
| 16 | 60420-LEE8-910-N1R | CAP FRONT PANEL (Black) | 1 | $14.40 USD | View product → | |
| 17 | 64302-AGA5-M00 | COVER FRONT BUMPER | 1 | $288.39 USD | View product → | |
| 18 | 64303-LKM8-900-N1R | GRILLE FRONT (Black) | 1 | $62.70 USD | View product → | |
| 19 | 64307-LKM8-900-N1R | TRIM R FRONT (Black) | 1 | $18.00 USD | View product → | |
| 20 | 64308-LKM8-900-N1R | TRIM0 L FRONT (Black) | 1 | $18.00 USD | View product → | |
| 21 | 75581-KBCB-900 | SET SPG LOCK KEY | 1 | $11.04 USD | View product → | |
| 22 | 90114-LBA2-E00 | SCREW PAN 6*30 | 2 | $11.31 USD | View product → | |
| 23 | 90116-KED9-900 | SCREW PAN 6X24(??????) | 2 | $6.39 USD | View product → | |
| 24 | 90302-SA4-0040 | NUT SPRING 4MM | 6 | $4.26 USD | View product → | |
| 25 | 90305-GHK8-001 | NUT CLIP 6MM | 3 | $4.92 USD | View product → | |
| 26 | 90312-LEE8-E00 | COLLAR LATCH | 2 | $10.14 USD | View product → | |
| 27 | 90652-LEE8-E00 | RIVET | 15 | $4.92 USD | View product → | |
| 28 | 90658-PWA2-900 | NUT STAMPED | 2 | $6.06 USD | View product → | |
| 29 | 90677-GAR1-004 | NUT CLIP 5MM | 19 | $3.00 USD | View product → | |
| 30 | 93404-06016-06 | BOLT WASHER 6*16 | 8 | $7.89 USD | View product → | |
| 31 | 93404-06020-06 | BOLT WASHER 6X20 | 3 | $3.00 USD | View product → | |
| 32 | 93903-34360 | SCREW TAPPING 4X12 | 25 | $4.29 USD | View product → | |
| 33 | 93903-KEB7-900-06 | SCREW WASHER 4X12 | 6 | $1.86 USD | View product → | |
| 34 | 94050-PWA2-900 | NUT LOCK | 4 | $4.92 USD | View product → | |
| 35 | 94101-06000 | WASHER PLAIN 6MM | 2 | $4.92 USD | View product → | |
| 36 | 94101-08000 | WASHER PLAIN 8MM | 2 | $1.65 USD | View product → | |
| 37 | 94103-06800 | WASHER PLAIN 6MM | 2 | $4.92 USD | View product → |
