F06 — Cushion Assy Fr● Wheel Assy Steering

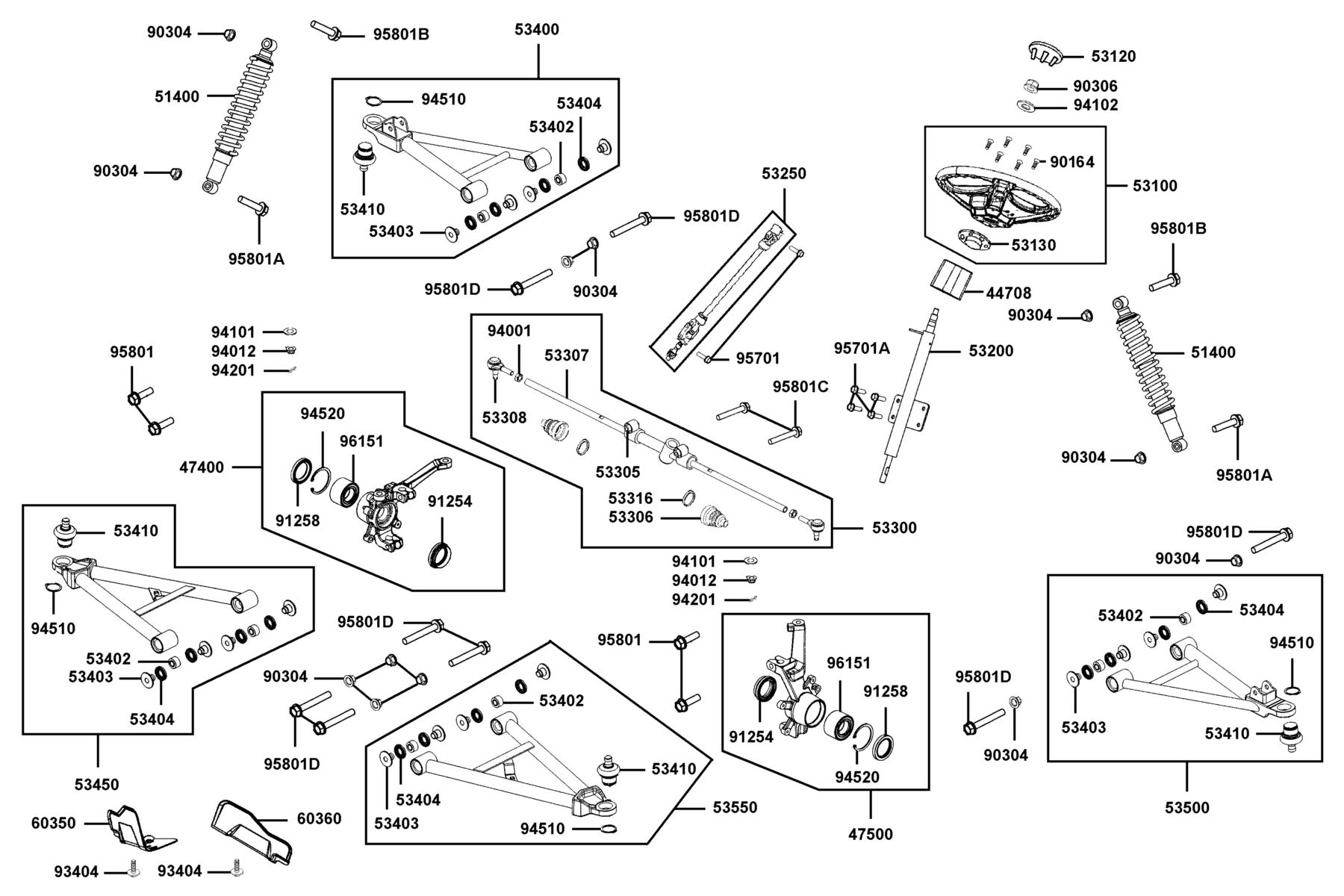

The Cushion Assy Fr● Wheel Assy Steering diagram contains 43 genuine OEM parts for the KYMCO UXV 700I (OFF ROAD) 2025 EPA. Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 44708-ALE8-E01 | SPACERWHEEL STEERING | 1 | $171.12 USD | View product → | |
| 2 | 47400-LEE8-900 | KNUCKLE ASSY STEERING-RH | 1 | $399.63 USD | View product → | |
| 3 | 47500-LEE8-900 | KNUCKLE ASSY STEERING-LH | 1 | $504.15 USD | View product → | |
| 4 | 51400-ADG8-E00-N1S | CUSHION ASSY???AFR | 2 | $788.44 USD | View product → | |
| 5 | 53100-ADG8-E00 | WHEEL ASSY STEERING | 1 | $276.21 USD | View product → | |
| 6 | 53120-ALE8-900 | COVER WHEEL | 1 | $124.71 USD | View product → | |
| 7 | 53130-ALE8-900 | PLATE | 1 | $43.17 USD | View product → | |
| 8 | 53200-LEE8-900 | COLUMN STEERING | 1 | $174.69 USD | View product → | |
| 9 | 53250-LEE8-E00 | STEERING SHAFT ASSY | 1 | $223.47 USD | View product → | |
| 10 | 53300-LEE8-E00 | STEERING ASSY | 1 | $461.91 USD | View product → | |
| 11 | 53305-LEE8-E00 | BUSH | 2 | $37.59 USD | View product → | |
| 12 | 53306-LEE8-E00 | BOOT | 2 | $37.59 USD | View product → | |
| 13 | 53307-LEE8-E00 | TIE ROD | 2 | $131.61 USD | View product → | |
| 14 | 53308-LEE8-E00 | BALL JOINT TIE ROD | 2 | $57.48 USD | View product → | |
| 15 | 53316-LEE8-E00 | BAND STRG ASSY | 2 | $32.85 USD | View product → | |
| 16 | 53400-ADG8-E00 | ARM ASSY FR R SWING UP | 1 | $306.48 USD | View product → | |
| 17 | 53402-LEE8-E00 | BEARING SPHERICAL PLAIN | 8 | $65.37 USD | View product → | |
| 18 | 53403-LEE8-E00 | COLLAR SWING ARM | 16 | $22.62 USD | View product → | |
| 19 | 53404-LEE8-E00 | DUST SEAL 16*30*4.5 | 16 | $23.49 USD | View product → | |
| 20 | 53410-PRB1-900 | BALL JOINT ASSY | 1 | $166.11 USD | View product → | |
| 21 | 53450-ADG8-E00 | A-ARM ASSY FR LOWER RH | 1 | $315.87 USD | View product → | |
| 22 | 53500-ADG8-E00 | ARM ASSY FR L SWING UP | 1 | $306.48 USD | View product → | |
| 23 | 53550-ADG8-E00 | A-ARM ASSY FR LOWER LH | 1 | $181.44 USD | View product → | |
| 24 | 90164-ADG8-E00 | BOLT M5X12 | 6 | $5.22 USD | View product → | |
| 25 | 90304-GLW0-90A | NUT U FLANGE 10MM | 12 | $9.39 USD | View product → | |
| 26 | 90306-GLW0-90A | NUT U FLANGE 12MM(C) | 1 | $17.55 USD | View product → | |
| 27 | 91258-LDB5-E00 | SEAL DUST HUB 38*55*7 | 2 | $18.72 USD | View product → | |
| 28 | 93404-06016-06 | BOLT WASHER 6*16 | 2 | $7.89 USD | View product → | |
| 29 | 94001-12280-0S | NUT HEX 12MM | 2 | $10.14 USD | View product → | |
| 30 | 94012-LLB1-900 | NUT CASTLE 10MM | 2 | $13.77 USD | View product → | |
| 31 | 94101-10800 | WASHER PLAIN 10MM | 2 | $2.61 USD | View product → | |
| 32 | 94102-12800 | WASHER PLAIN 12MM | 1 | $1.86 USD | View product → | |
| 33 | 94201-25300 | PIN SPLIT 2.5*30 | 2 | $1.86 USD | View product → | |
| 34 | 94510-PWB1-900 | CIRCLIP EX 29 | 4 | $5.31 USD | View product → | |
| 35 | 94520-55000 | CIR CLIP IN 55 | 2 | $13.95 USD | View product → | |
| 36 | 95701-08028-06 | BOLT FLANGE 8*28 | 2 | $4.53 USD | View product → | |
| 37 | 95701-10020-06 | BOLT FLANGE 10*20 | 4 | $6.24 USD | View product → | |
| 38 | 95801-10035-06 | BOLT FLANGE 10X35 | 4 | $10.92 USD | View product → | |
| 39 | 95801-10050-06 | BOLT FLANGE 10*50 | 2 | $9.39 USD | View product → | |
| 40 | 95801-10055-06 | BOLT FLANGE 10*55 | 2 | $13.56 USD | View product → | |
