F08 — Rear Wheel

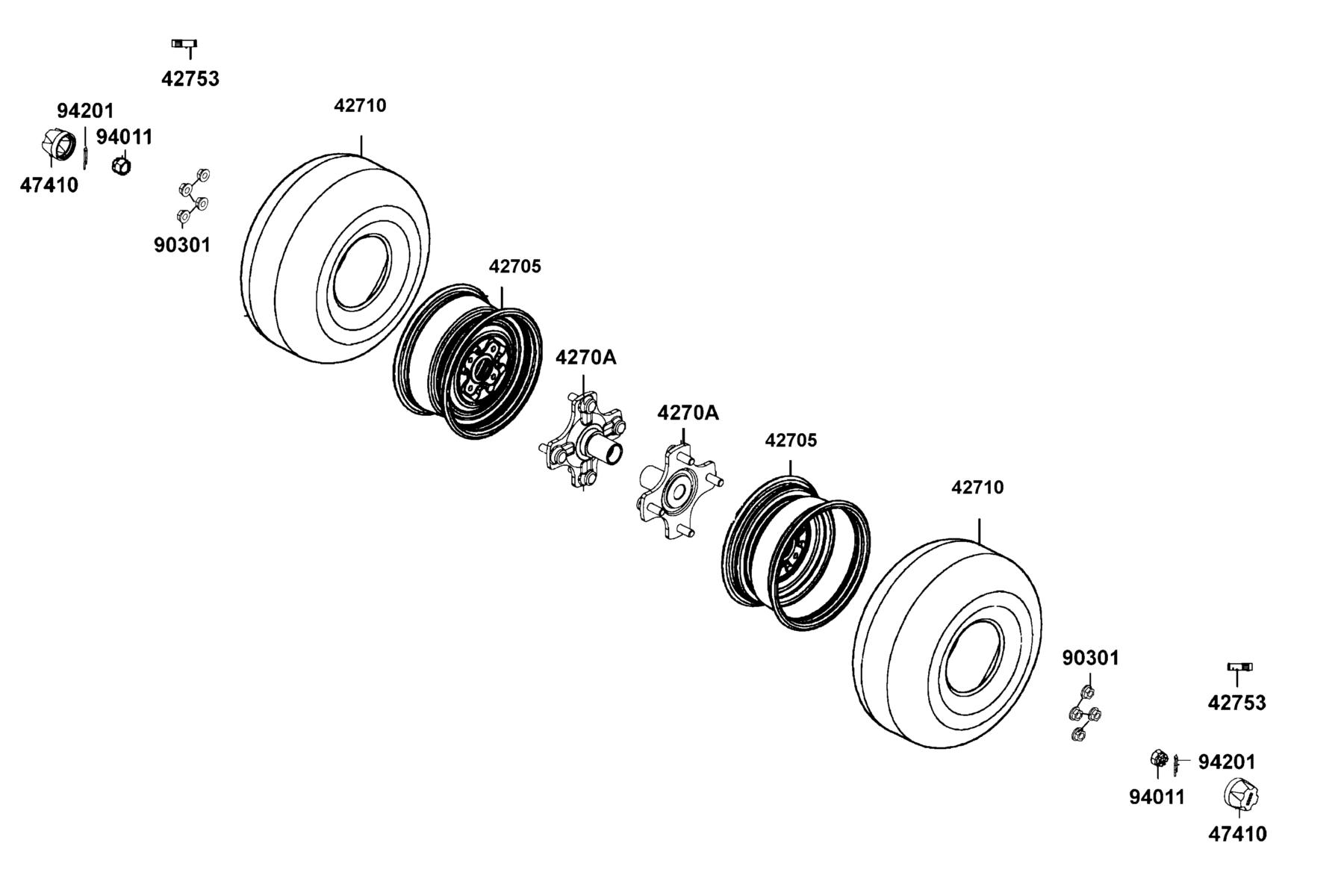

The Rear Wheel diagram contains 8 genuine OEM parts for the KYMCO UXV 700I (OFF ROAD) 2025 EPA. Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 42705-LEE8-E00-MAS | RIM COMP RR WHEEL | 2 | $204.66 USD | View product → | |
| 2 | 4270A-LEE8-900 | HUB ASSY REAR WHEEL | 1 | $164.73 USD | View product → | |
| 3 | 42710-LKM8-900 | TIRE ASSY RR 25*10.00-12 4PR | 2 | $599.61 USD | View product → | |
| 4 | 42753-KNBN-90B | VALVE RIM (TR412) | 2 | $17.70 USD | View product → | |
| 5 | 47410-LDB5-E00 | CAP WHEEL SHAFT | 2 | $15.06 USD | View product → | |
| 6 | 90301-LDB5-E00 | NUT WHEEL | 8 | $18.24 USD | View product → | |
| 7 | 94011-PWB1-900 | NUT CASTLE FLANGE M22x1.5 | 2 | $52.95 USD | View product → | |
| 8 | 94201-30400 | PIN SPLIT 3*40 | 2 | $10.14 USD | View product → |
