F27 — Canister-Pcv Assy

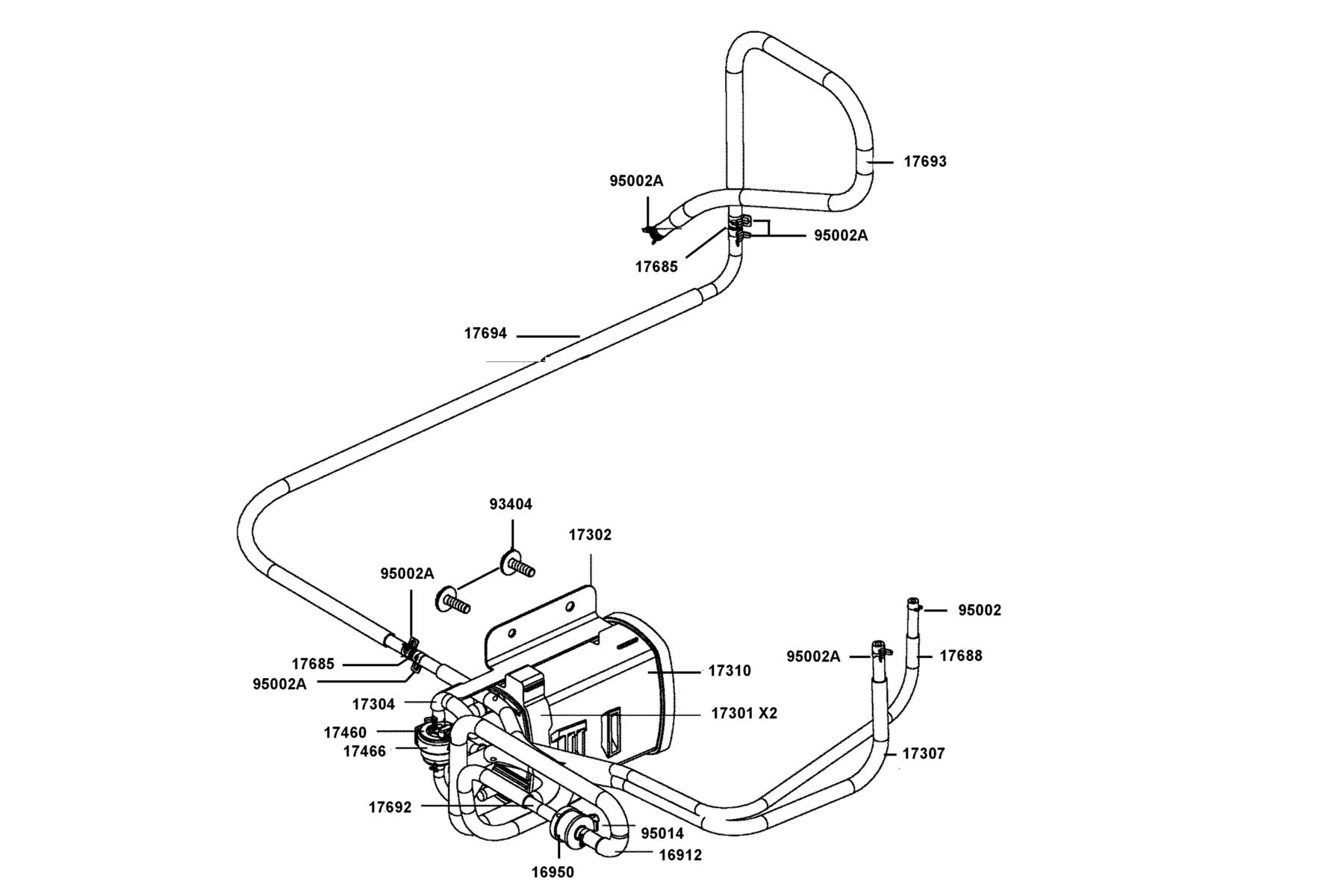

The Canister-Pcv Assy diagram contains 18 genuine OEM parts for the KYMCO UXV 700I (OFF ROAD) 2025 EPA. Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 16912-AGA6-M02 | HOSE ASSY CANISTER CHECK VALVE | 1 | — | Part details → | |
| 2 | 16950-PRA9-910 | VALVE CHECK | 1 | $50.10 USD | View product → | |
| 3 | 17301-AFB9-M02 | RUBBER CANISTER MOUNT | 2 | $8.94 USD | View product → | |
| 4 | 17302-AGA6-M02 | STAY CANISTER | 1 | — | Part details → | |
| 5 | 17304-AGA6-M02 | TUBE ASSY CANISTER VCV | 1 | — | Part details → | |
| 6 | 17307-AGA6-M02 | HOSE ASSY CANISTER T JOINT | 1 | — | Part details → | |
| 7 | 17310-AFB9-M02 | CANISTER COMP | 1 | $169.02 USD | View product → | |
| 8 | 17460-AGA6-M01 | VALVE COMP VAPOR CONTROL | 1 | $43.62 USD | View product → | |
| 9 | 17466-AGA6-M01 | RUBBER VAPOR CONTROL MOUNT | 1 | — | Part details → | |
| 10 | 17685-GFY6-940 | JOINT COCK - CARB TUBE | 2 | $6.78 USD | View product → | |
| 11 | 17688-AGA6-M02 | TUBE ASSY VACUUM | 1 | — | Part details → | |
| 12 | 17692-AGA6-M02 | HOSE ASSY CHECK VALVE 2 WAY JOINT | 1 | — | Part details → | |
| 13 | 17693-AGA6-M02 | HOSE ASSY A BREATHER | 1 | — | Part details → | |
| 14 | 17694-AGA6-M02 | HOSE ASSY B BREATHER | 1 | — | Part details → | |
| 15 | 93404-06016-07G | BOLT WASHER 6*16 (KG) | 2 | $2.31 USD | View product → | |
| 16 | 95002-02070 | CLIP B7 TUBE | 1 | $1.86 USD | View product → | |
| 17 | 95002-40800-08G | CLAMP D8 TUBE | 6 | $8.52 USD | View product → | |
| 18 | 95014-PRB3-900 | STRAP CABLE | 1 | $9.51 USD | View product → |
