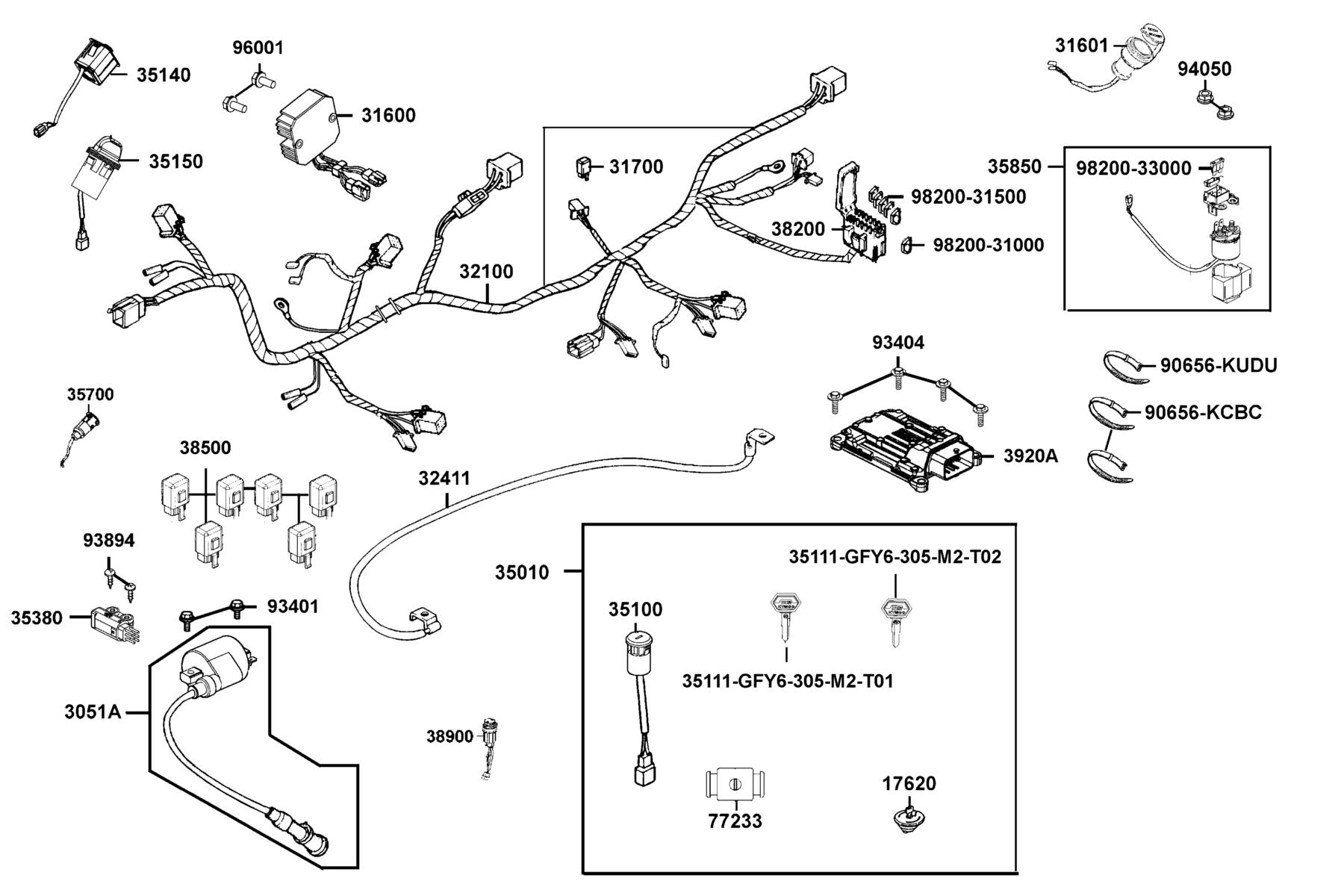

F20 — Harness Wire
The Harness Wire diagram contains 31 genuine OEM parts for the KYMCO UXV 700I (OFF ROAD) 2025 EPA. Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 17620-ALE8-M00 | CAP COMP.??? FUEL FILLER | 1 | $115.23 USD | View product → | |
| 2 | 3051A-LKM8-E00 | COIL ASS'Y IGNITION | 1 | $177.66 USD | View product → | |
| 3 | 31600-PRB2-900 | REG RECT COMP | 1 | $325.98 USD | View product → | |
| 4 | 31601-LDB5-E00 | SOCKET COMP DC 12V | 1 | $71.67 USD | View product → | |
| 5 | 31700-KEC8-E0B | RECTIFIER COMP DIODE | 1 | $42.75 USD | View product → | |
| 6 | 32100-AGA5-M00 | HARNESS WIRE | 1 | $614.76 USD | View product → | |
| 7 | 32411-LEE8-E00 | CABLE BAT | 1 | $42.72 USD | View product → | |
| 8 | 35010-ALE8-M00 | KEY SET | 1 | $164.67 USD | View product → | |
| 9 | 35100-ACB2-305 | SW ASSY COMB START | 1 | $123.18 USD | View product → | |
| 10 | 35111-GFY6-305-M2-T01 | KEY COMP /SD/R CUT | 1 | $37.11 USD | View product → | |
| 11 | 35111-GFY6-305-M2-T02 | KEY COMP /SD/L CUT | 1 | $37.11 USD | View product → | |
| 12 | 35140-ALE8-E00 | SW UNIT 2WD/4WD/LOCK | 1 | $179.31 USD | View product → | |
| 13 | 35150-LEE8-E00 | SW UNIT LIGHTING | 1 | $157.68 USD | View product → | |
| 14 | 35380-LEA2-900 | SENSOR ANGLE DETECT | 1 | $193.92 USD | View product → | |
| 15 | 35700-ALE8-E00 | SAFETY BELT SY | 1 | $72.33 USD | View product → | |
| 16 | 35850-LDB5-E00 | SET START MAG | 1 | $99.51 USD | View product → | |
| 17 | 38200-KHE7-900 | BOX COMP FUSE | 1 | $19.65 USD | View product → | |
| 18 | 38500-LGL3-90F | RELAY ASSY LIGHT/D113(12V 20A) | 6 | — | Part details → | |
| 19 | 38900-AEG6-E00 | CONTROLLER USB CHARGER | 1 | $112.29 USD | View product → | |
| 20 | 3920A-AGA5-M00 | MODULE ASS'Y ECU | 1 | $472.02 USD | View product → | |
| 21 | 77233-KBCB-305 | LOCK SET INNER BOX | 1 | $84.18 USD | View product → | |
| 22 | 90656-KCBC-900 | BAND OIL HANDLE 8X146 | 2 | $3.93 USD | View product → | |
| 23 | 90656-KUDU-900-N1R | BAND HARNESS WIRE (Black) | 1 | $4.92 USD | View product → | |
| 24 | 93401-04025-06 | BOLT WASHER 4*25 | 2 | $13.95 USD | View product → | |
| 25 | 93404-06020-06 | BOLT WASHER 6X20 | 4 | $3.00 USD | View product → | |
| 26 | 93894-04022-06 | SCREW WASHER 4X22 | 1 | $11.46 USD | View product → | |
| 27 | 94050-06080 | NUT FLANGE 6MM | 2 | $2.31 USD | View product → | |
| 28 | 96001-06016-06 | BOLT FLANGE SH 6X16 | 1 | $12.12 USD | View product → | |
| 29 | 98200-31000 | BLADE FUSE 10A | 1 | $4.92 USD | View product → | |
| 30 | 98200-31500 | BLADE FUSE 15A | 5 | $4.92 USD | View product → | |
| 31 | 98200-33000 | BLADE FUSE 30A | 1 | $4.92 USD | View product → |
