F23 — Radiator

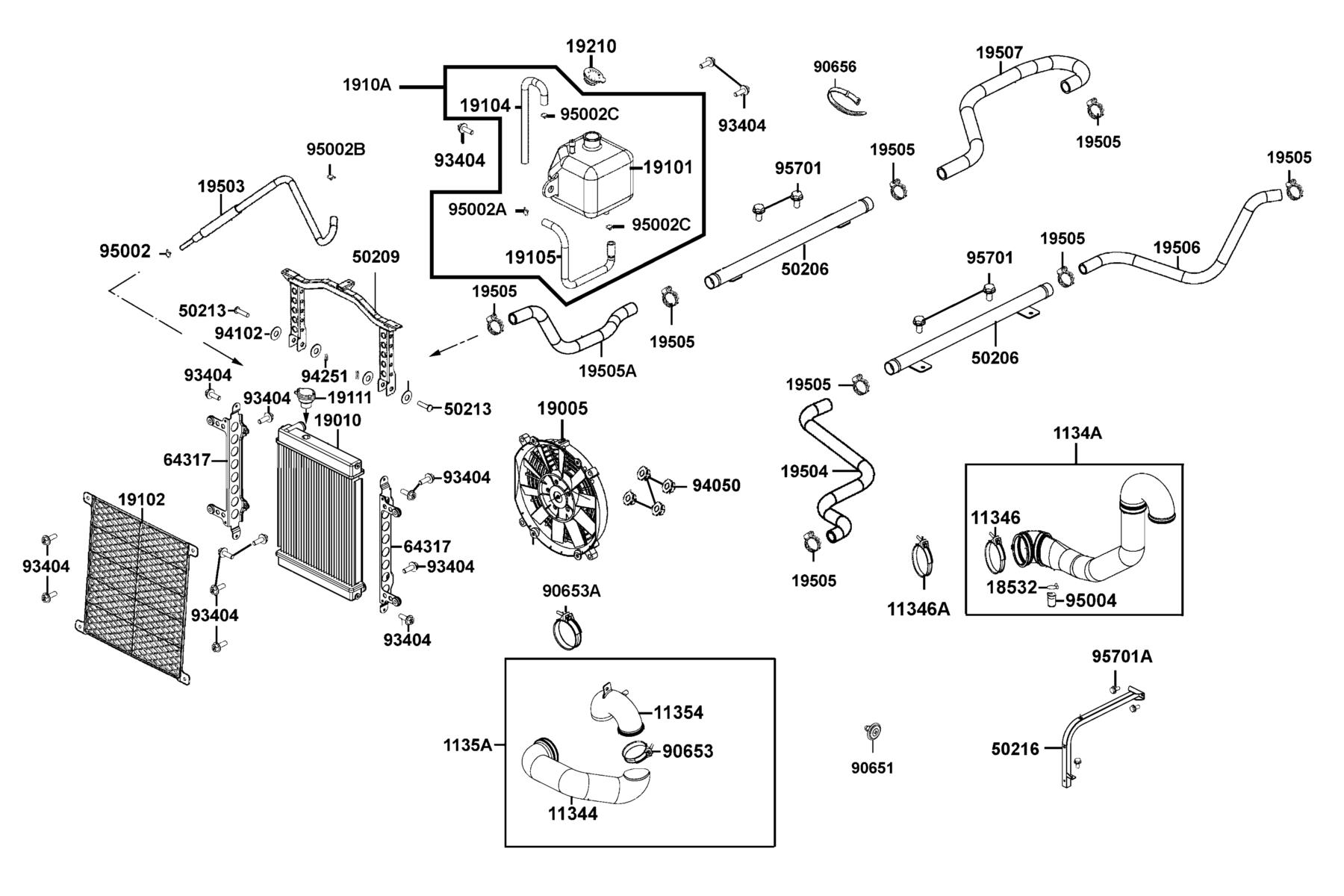

The Radiator diagram contains 42 genuine OEM parts for the KYMCO UXV 700I (OFF ROAD) 2025 EPA. Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 11344-LKM8-E00 | DUCT B L CASE | 1 | $176.22 USD | View product → | |
| 2 | 11346-LDB5-E00 | BAND 56X96 FRONT CVT TUBE | 1 | $19.35 USD | View product → | |
| 3 | 11346-LKM5-E00 | BAND 75X105 FRONT CVT TUBE | 1 | $30.33 USD | View product → | |
| 4 | 1134A-LKM8-E00 | DUCT A ASS L CASE | 1 | $189.45 USD | View product → | |
| 5 | 11354-LKM8-E00 | CHAMBER DUCT B L COVER | 1 | $55.74 USD | View product → | |
| 6 | 1135A-LKM8-E00 | DUCT B ASSY L CASE | 1 | $184.02 USD | View product → | |
| 7 | 18532-6D34-671 | CLIP AIR HOSE 21.5 | 1 | $4.53 USD | View product → | |
| 8 | 19005-LEE8-E0A | SHROUD ASSY | 1 | $266.49 USD | View product → | |
| 9 | 19010-LKM8-700 | RADIATOR COMP | 1 | $318.33 USD | View product → | |
| 10 | 19101-LDB5-E00 | TANK RESERVE | 1 | $64.38 USD | View product → | |
| 11 | 19102-LEE8-E00-N1R | GRILLE RADIATOR (Black) | 1 | $28.95 USD | View product → | |
| 12 | 19104-LEE8-E00 | HOSE ASSY DRAIN | 1 | $37.41 USD | View product → | |
| 13 | 19105-LEE8-E00 | HOSE ASSY WATER | 1 | $41.97 USD | View product → | |
| 14 | 1910A-LEE8-E00 | TANK ASSY RESERVE | 1 | $60.09 USD | View product → | |
| 15 | 19111-GBE2-004 | CAP COMP | 1 | $47.31 USD | View product → | |
| 16 | 19210-KKC4-900 | CAP RESERVE TANK | 1 | $9.39 USD | View product → | |
| 17 | 19503-LKM8-900 | HOSE ASSYWATER | 1 | $46.68 USD | View product → | |
| 18 | 19504-LEE8-E00 | HOSE WATER D | 1 | $81.57 USD | View product → | |
| 19 | 19505-LBA2-E00 | CLAMP WATER HOSE | 8 | $15.06 USD | View product → | |
| 20 | 19505-LEE8-E00 | HOSE WATER F PIPE-RADIATOR | 1 | $65.40 USD | View product → | |
| 21 | 19506-LEE8-E00 | HOSE WATER G | 1 | $72.93 USD | View product → | |
| 22 | 19507-LEE8-E00 | HOSE WATER H ENG-PIPE | 1 | $96.27 USD | View product → | |
| 23 | 50206-LEE8-E00 | WATER PIPE RADIAL | 2 | $73.38 USD | View product → | |
| 24 | 50209-LKM8-700 | BRKT FRONT FENDER | 1 | $160.26 USD | View product → | |
| 25 | 50213-LEE8-E00 | PIN FRONT FENDER | 2 | $18.24 USD | View product → | |
| 26 | 50216-LKC3-E01 | SUPPORT PIPE SEAT INSIDE | 1 | $131.52 USD | View product → | |
| 27 | 64317-LEE8-E00 | STAY RADIATOR | 2 | $76.50 USD | View product → | |
| 28 | 90651-LCA5-E00 | CLIP FENDER | 1 | $4.92 USD | View product → | |
| 29 | 90653-LEE8-E00 | BAND 77 AIR/C CONN TUBE | 1 | $32.01 USD | View product → | |
| 30 | 90653-LKM5-E00 | BAND | 1 | $31.44 USD | View product → | |
| 31 | 90656-KUDU-900-N1R | BAND HARNESS WIRE (Black) | 1 | $4.92 USD | View product → | |
| 32 | 93404-06016-06 | BOLT WASHER 6*16 | 14 | $7.89 USD | View product → | |
| 33 | 94050-06080 | NUT FLANGE 6MM | 4 | $2.31 USD | View product → | |
| 34 | 94102-12800 | WASHER PLAIN 12MM | 4 | $1.86 USD | View product → | |
| 35 | 94251-14000 | PIN LOCK 14MM | 2 | $5.94 USD | View product → | |
| 36 | 95002-02070 | CLIP B7 TUBE | 1 | $1.86 USD | View product → | |
| 37 | 95002-02100 | CLIP B15 TUBE | 1 | $4.92 USD | View product → | |
| 38 | 95002-45000 | CLIP C8 TUBE | 1 | $4.53 USD | View product → | |
| 39 | 95002-70000 | CLIP C11 TUBE | 1 | $4.92 USD | View product → | |
| 40 | 95004-LBA7-900 | TUBE DRAIN | 1 | $16.41 USD | View product → | |
| 41 | 95701-06014-06 | BOLT FLANGE 6*14 | 4 | $1.65 USD | View product → | |
| 42 | 95701-08016-06 | BOLT FLANGE 8*16 | 3 | $4.53 USD | View product → |
