E04 — Right Crankcase Cover ● Water Pump

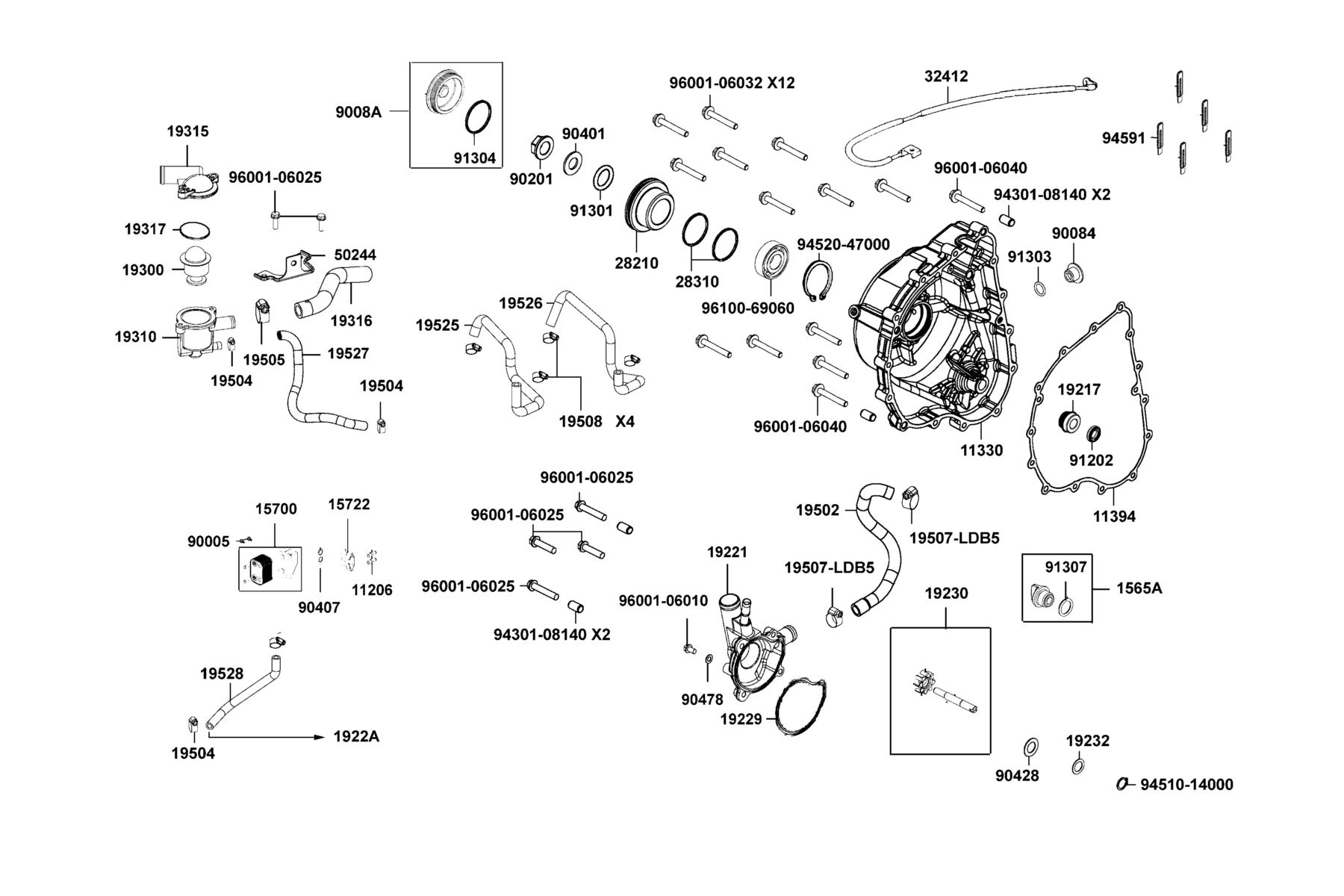

The Right Crankcase Cover ● Water Pump diagram contains 51 genuine OEM parts for the KYMCO UXV 700I (OFF ROAD) 2025 EPA. Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 11206-LEE8-E00 | OIL COOLER BOLT 12X12 | 2 | $42.84 USD | View product → | |
| 2 | 11330-LKM5-E00 | COVER COMP R CRANK CASE | 1 | $333.51 USD | View product → | |
| 3 | 11394-LKM5-E00 | GASKET. R. COVER A | 1 | $77.52 USD | View product → | |
| 4 | 1565A-PWA1-900 | GAUGE OIL LEVEL ASSY | 1 | $53.43 USD | View product → | |
| 5 | 15700-LBA2-E0A | OIL WATER HEAT EXCHANGER | 1 | $341.52 USD | View product → | |
| 6 | 15722-LEE8-E00 | COUPLE OIL COOLER | 1 | $48.54 USD | View product → | |
| 7 | 19217-ZPA3-E01 | SEAL MECHANICAL | 1 | $72.24 USD | View product → | |
| 8 | 19221-LKM5-E00 | COVER. WATER PUMP | 1 | $62.61 USD | View product → | |
| 9 | 19229-LKM5-E00 | O-RING. WATER PUMP | 1 | $36.24 USD | View product → | |
| 10 | 19230-LKM5-E00 | ASSY WATER PUMP | 1 | $108.87 USD | View product → | |
| 11 | 19232-LBA2-E00 | WASHER 21*13.8*1.5 | 1 | $12.09 USD | View product → | |
| 12 | 19300-LBA2-E00 | THERMOSTAT ASSY | 1 | $129.00 USD | View product → | |
| 13 | 19310-LKM5-E00 | CASE COMP THERMOSTAT | 1 | $96.90 USD | View product → | |
| 14 | 19315-LBA2-E00 | COVER THERMOSTAT | 1 | $39.00 USD | View product → | |
| 15 | 19316-LKM8-E00 | HOSE THERMOSTAT | 1 | $116.04 USD | View product → | |
| 16 | 19317-LBA2-E00 | RING 48.3X2 | 1 | $9.39 USD | View product → | |
| 17 | 19502-LKM5-E00 | HOSE. WATER B | 1 | $104.91 USD | View product → | |
| 18 | 19504-LBA2-E00 | CLAMP D16.8 | 4 | $13.95 USD | View product → | |
| 19 | 19505-LBA2-E00 | CLAMP WATER HOSE | 1 | $15.06 USD | View product → | |
| 20 | 19507-PRA1-E00 | CLAMP D28(ZNS3) | 2 | — | Part details → | |
| 21 | 19508-LEE8-E00 | CLAMP 20.0 | 4 | $15.63 USD | View product → | |
| 22 | 19525-LKM8-E00 | OIL COOLER HOSE OIL IN | 1 | $112.89 USD | View product → | |
| 23 | 19526-LKM8-E00 | OIL COOLER HOSE OIL EX | 1 | $115.17 USD | View product → | |
| 24 | 19527-LKM8-E00 | TUBE IN | 1 | $28.74 USD | View product → | |
| 25 | 19528-LKM8-E00 | OIL COOLER HOSE WATER EX. | 1 | $42.60 USD | View product → | |
| 26 | 28210-LKM5-E00 | BOSS RACHET | 1 | $105.66 USD | View product → | |
| 27 | 28310-LDB5-E00 | RING OIL PATH | 2 | $74.67 USD | View product → | |
| 28 | 32412-LEE8-E00 | CABLE EARTH | 1 | $123.81 USD | View product → | |
| 29 | 50244-LEE8-E00 | BRKT THERMOSTAT | 1 | $19.26 USD | View product → | |
| 30 | 90005-LBA2-E00 | BOLT C OIL PASS | 2 | $35.61 USD | View product → | |
| 31 | 90084-4H28-001-NJA | CAP ACG (Silver) | 1 | $0.78 USD | View product → | |
| 32 | 9008A-LKM5-E00 | CAP ASSY | 1 | $61.14 USD | View product → | |
| 33 | 90201-KHR8-75A | NUT FLANGE 14MM | 1 | $9.39 USD | View product → | |
| 34 | 90401-KKJ9-001 | WASHER THRUST 14*28*2 | 1 | $5.67 USD | View product → | |
| 35 | 90407-LBA2-E00 | SEALING WASHER OIL PIPE | 4 | $5.67 USD | View product → | |
| 36 | 90428-9H58-001 | WASHER THRUST 14MM B | 1 | $9.78 USD | View product → | |
| 37 | 90478-7L00-001 | WASHER A 6MM | 1 | $4.92 USD | View product → | |
| 38 | 91202-KGB4-C00 | OIL SEAL 13.7*24*5 | 1 | $14.70 USD | View product → | |
| 39 | 91301-LDB5-E00 | O-RING 16MM | 1 | $4.92 USD | View product → | |
| 40 | 91303-3G77-001 | O-RING 13.8*2.5 | 1 | $4.92 USD | View product → | |
| 41 | 91304-LKM5-E00 | O-RING 17.8x2.4 | 1 | $7.80 USD | View product → | |
| 42 | 91307-0E35-001 | O RING 18*3 | 1 | $4.92 USD | View product → | |
| 43 | 94301-08140 | DOWEL PIN 8*14 | 4 | $3.00 USD | View product → | |
| 44 | 94510-14000 | CIR CLIP EX 14 | 1 | $4.92 USD | View product → | |
| 45 | 94520-47000 | CIR CLIP IN 47 | 1 | $11.31 USD | View product → | |
| 46 | 94591-LLB1-900 | CLIP 2X100 | 5 | $4.89 USD | View product → | |
| 47 | 96001-06010-02 | BOLT FLANGE SH 6*10 | 1 | $3.00 USD | View product → | |
| 48 | 96001-06025-06 | BOLT FLANGE SH 6*25 | 1 | $2.61 USD | View product → | |
| 49 | 96001-06032-06 | BOLT FLANGE SH 6*32 | 1 | $11.46 USD | View product → | |
| 50 | 96001-06040-06 | BOLT FLANGE SH 6*40 | 1 | $12.12 USD | View product → | |
| 51 | 96100-69060-00 | BEARING BALL RADIAL 6906 | 1 | $101.67 USD | View product → |
