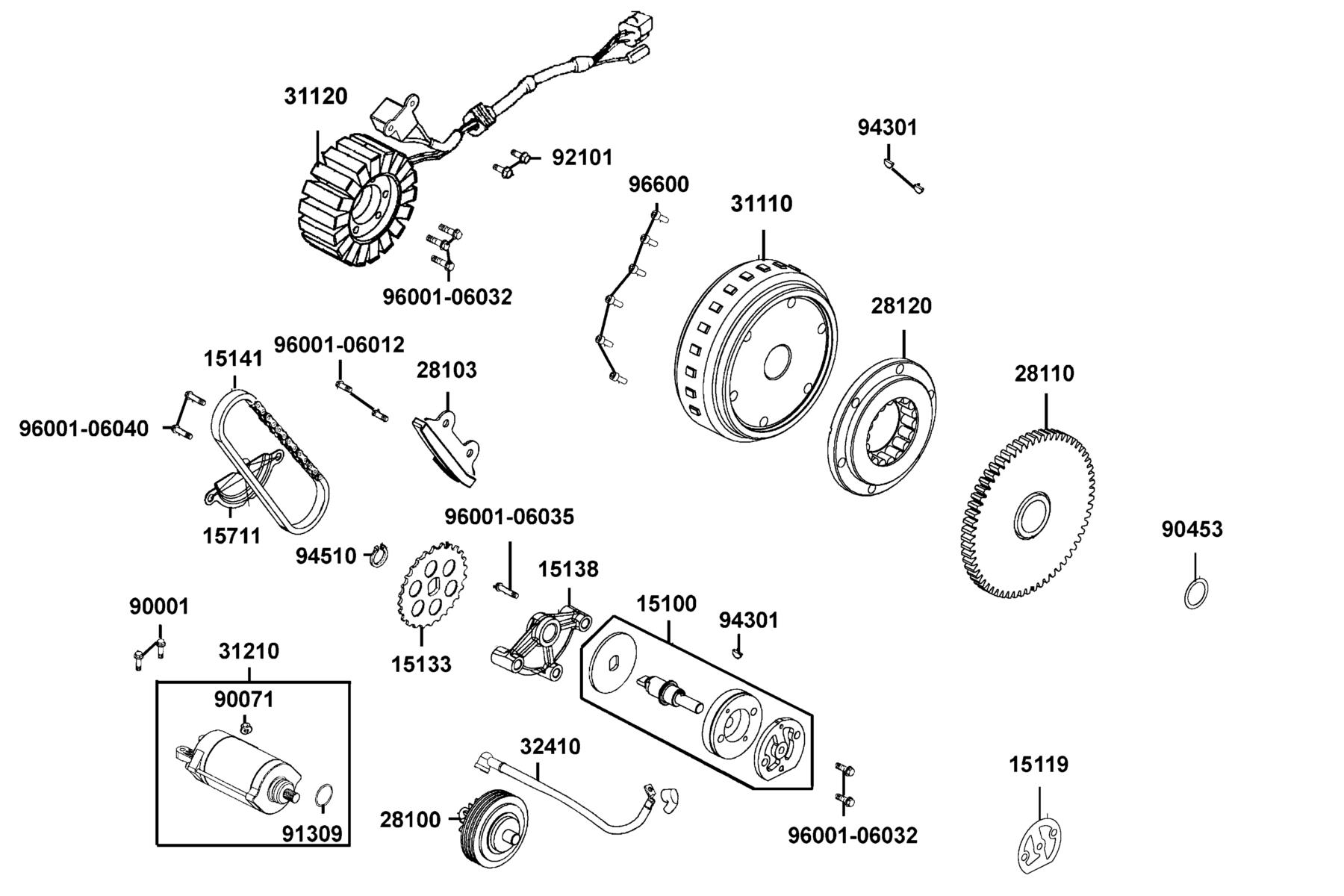

E06 — Starting Motor ● Generator
The Starting Motor ● Generator diagram contains 26 genuine OEM parts for the KYMCO UXV 700I (OFF ROAD) 2025 EPA. Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 15100-LDB5-E00 | PUMP ASSY OIL | 1 | $123.69 USD | View product → | |
| 2 | 15119-LKM5-E00 | GASKET OIL PUMP BODY | 1 | $9.78 USD | View product → | |
| 3 | 15133-LBA2-E00 | SPROCKET OIL PUMP DRIVE | 1 | $25.56 USD | View product → | |
| 4 | 15138-LDB5-E00 | HOLDER OIL PUMP SHAFT | 1 | $41.73 USD | View product → | |
| 5 | 15141-LDB5-E00 | CHAIN OIL PUMP | 1 | $75.36 USD | View product → | |
| 6 | 15711-LDB5-E00 | SEPARATOR OIL | 1 | $9.39 USD | View product → | |
| 7 | 28100-LKM5-E01 | SHAFT COMP REDUCTION | 1 | $255.42 USD | View product → | |
| 8 | 28103-LKM5-E00 | GUIDE OIL PUMP CHAIN | 1 | $61.14 USD | View product → | |
| 9 | 28110-LKA8-E00 | GEAR COMP.STARTING CLUTCH | 1 | $176.55 USD | View product → | |
| 10 | 28120-KKE5-E0A | ONE WAY CLUTCH | 1 | $434.06 USD | View product → | |
| 11 | 31110-LKM8-900 | FLYWHEEL COMP (D406) | 1 | $301.32 USD | View product → | |
| 12 | 31120-LKA8-E0A | STATOR COMP (D406) | 1 | $308.67 USD | View product → | |
| 13 | 31210-LKM5-E0A | MOTOR UNIT STARTER | 1 | $235.38 USD | View product → | |
| 14 | 32410-LEE8-E00 | CABLE STARTER MOTOR | 1 | $135.78 USD | View product → | |
| 15 | 90001-GBHB-661 | BOLT FLANGE SH 6*22 | 2 | $4.92 USD | View product → | |
| 16 | 90071-MLB0-001 | NUT WASH 6MM | 2 | $4.92 USD | View product → | |
| 17 | 90453-LKM5-E00 | WASHER 27.2*36*0.5 | 1 | $25.35 USD | View product → | |
| 18 | 91309-4E25-004 | O-RING 24.4*3.1 | 1 | $4.92 USD | View product → | |
| 19 | 92101-05012-0G | BOLT HEX 5X12 | 1 | $11.46 USD | View product → | |
| 20 | 94301-08140 | DOWEL PIN 8*14 | 2 | $3.00 USD | View product → | |
| 21 | 94510-10000 | CIR CLIP EX 10MM | 1 | $4.92 USD | View product → | |
| 22 | 96001-06012-06 | BOLT FLANGE SH 6*12 | 1 | $1.95 USD | View product → | |
| 23 | 96001-06032-06 | BOLT FLANGE SH 6*32 | 1 | $11.46 USD | View product → | |
| 24 | 96001-06035-06 | BOLT FLANGE SH 6*35 | 1 | $3.93 USD | View product → | |
| 25 | 96001-06040-06 | BOLT FLANGE SH 6*40 | 1 | $12.12 USD | View product → | |
| 26 | 96600-08015-16 | SOCKET BOLT 8*15 | 1 | $21.60 USD | View product → |
