F25 — Emblem ● Stripe

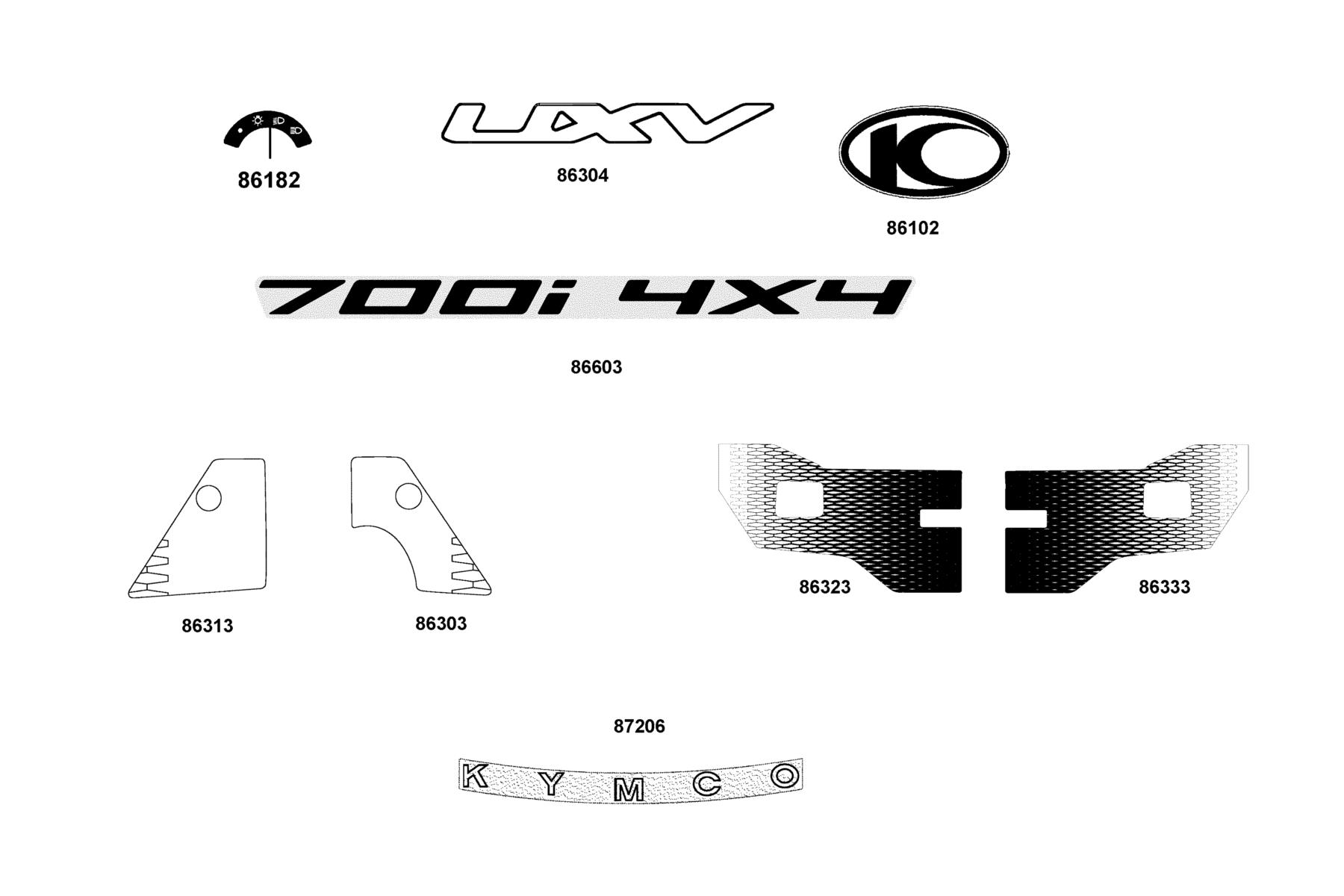

The Emblem ● Stripe diagram contains 9 genuine OEM parts for the KYMCO UXV 700I (OFF ROAD) 2025 EPA. Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 86102-ALC1-E01-T01 | STRIPE K-LOGO | 1 | — | Part details → | |
| 2 | 86182-AGA5-M30-T01 | SW LABEL | 1 | $3.93 USD | View product → | |
| 3 | 86303-AGA5-M00-T05 | STRIPE SIDE COVER | 1 | $41.40 USD | View product → | |
| 4 | 86304-AFB9-M00-T02 | EMB SIDE COVER-UXV | 2 | $51.18 USD | View product → | |
| 5 | 86313-AGA5-M00-T05 | STRIPE B SIDE COVER | 1 | $41.64 USD | View product → | |
| 6 | 86323-AGA5-M00-T05 | STRIPE R SIDE COVER | 1 | $145.98 USD | View product → | |
| 7 | 86333-AGA5-M00-T05 | STRIPE L SIDE COVER | 1 | $224.25 USD | View product → | |
| 8 | 86603-AGA5-M30-T03 | STRIPE RR FENDER | 2 | $24.03 USD | View product → | |
| 9 | 87206-AGA6-M30-T01 | EMB MARK KYMCO | 1 | $52.05 USD | View product → |
