F05 — Box Assy Luggage● Panel Assy R/L Footrest

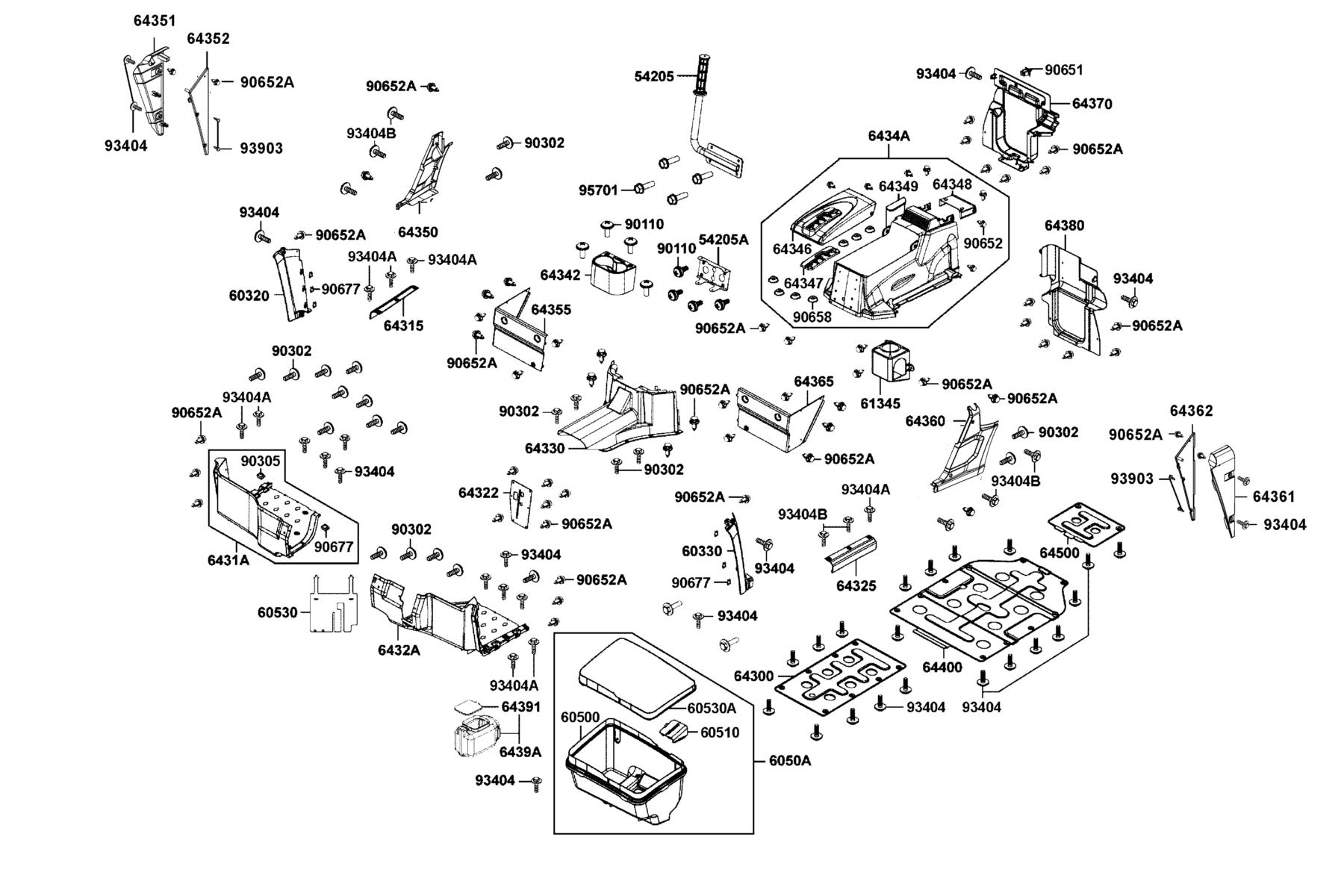

The Box Assy Luggage● Panel Assy R/L Footrest diagram contains 50 genuine OEM parts for the KYMCO UXV 700I (OFF ROAD) 2025 EPA. Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 54205-AGA5-M00 | HANDLE PASSENGER | 1 | $134.40 USD | View product → | |
| 2 | 54205-LKC3-900 | STAY DRINK HOLDER | 1 | $66.03 USD | View product → | |
| 3 | 60320-AGA5-M00-N1R | SIDE PANEL R FRONT (Black) | 1 | $100.23 USD | View product → | |
| 4 | 60330-AGA5-M00-N1R | SIDE PANEL L FRONT (Black) | 1 | $53.19 USD | View product → | |
| 5 | 60500-AGA5-M00-N1R | BOX LUGGAGE (Black) | 1 | $96.81 USD | View product → | |
| 6 | 6050A-AGA5-M00-N1R | BOX ASSY LUGGAGE (Black) | 1 | $115.83 USD | View product → | |
| 7 | 60510-LKM8-900 | COVER MASTER CYLINDER | 1 | $5.49 USD | View product → | |
| 8 | 60530-LEE8-E00 | PLATE SPLASH GUARD | 1 | $38.76 USD | View product → | |
| 9 | 60530-LKM8-900 | CAP LUGGAGE BOX | 1 | $59.61 USD | View product → | |
| 10 | 61345-LEE8-E00-N1R | CHAMBER L COVER DUCT B (Black) | 1 | $16.11 USD | View product → | |
| 11 | 64300-LEE8-E01-N1R | COVER UNDER (Black) | 1 | $93.03 USD | View product → | |
| 12 | 64315-LEE8-E01-N1R | SIDE PANEL R FOOTREST (Black) | 1 | $58.59 USD | View product → | |
| 13 | 6431A-AGA5-M00-N1R | PANEL ASSY R FOOTREST (Black) | 1 | $280.98 USD | View product → | |
| 14 | 64322-LEE8-E00 | PLATE PEDAL | 1 | $13.47 USD | View product → | |
| 15 | 64325-LEE8-E01-N1R | SIDE PANEL L FOOTREST (Black) | 1 | $58.59 USD | View product → | |
| 16 | 6432A-AGA5-M00-N1R | PANEL ASSY L FOOTREST (Black) | 1 | $286.08 USD | View product → | |
| 17 | 64330-AGA5-M00-N1R | COVER TUNNEL (Black) | 1 | $78.99 USD | View product → | |
| 18 | 64342-LKC3-900-N1R | HOLDER.DRINK (Black) | 1 | $45.33 USD | View product → | |
| 19 | 64346-AKC2-M00 | COVER SHIFT LEVER | 1 | $67.32 USD | View product → | |
| 20 | 64347-LKM8-900 | PLATE SHIFT LEVER | 1 | $19.92 USD | View product → | |
| 21 | 64348-AKC2-M00 | COVER PROTECTOR | 1 | $28.26 USD | View product → | |
| 22 | 64349-AKC2-M00 | COVER PLUG MAINTAIN | 1 | $25.14 USD | View product → | |
| 23 | 6434A-AKC2-M00-N1R | COVER ASSY ARMREST (Black) | 1 | $256.11 USD | View product → | |
| 24 | 64350-AGA5-M00-N1R | PANEL R SIDE (Black) | 1 | $122.70 USD | View product → | |
| 25 | 64351-AGA5-M00-N1R | COVER OUT R FOOTREST (Black) | 1 | $51.03 USD | View product → | |
| 26 | 64352-AGA5-M00-N1R | COVER INNER R FOOTREST (Black) | 1 | — | Part details → | |
| 27 | 64355-LEE8-E01-N1R | SUPPORT,R SIDE PANEL (Black) | 1 | $72.15 USD | View product → | |
| 28 | 64360-AGA5-M00-N1R | PANEL L SIDE (Black) | 1 | $121.59 USD | View product → | |
| 29 | 64361-AGA5-M00-N1R | COVER OUT L FOOTREST (Black) | 1 | — | Part details → | |
| 30 | 64362-AGA5-M00-N1R | COVER INNER L FOOTREST (Black) | 1 | — | Part details → | |
| 31 | 64365-LEE8-E01-N1R | SUPPORT,L SIDE PANEL (Black) | 1 | $51.00 USD | View product → | |
| 32 | 64370-LEE8-E01-N1R | PROTECTOR???FUEL TANK (Black) | 1 | $65.34 USD | View product → | |
| 33 | 64380-LEE8-E01-N1R | PROTECTOR SIDE (Black) | 1 | $105.78 USD | View product → | |
| 34 | 64391-LEE8-E01 | CAP LUGGAGE BOX | 1 | $39.69 USD | View product → | |
| 35 | 6439A-LEE8-E01-N1R | BOX ASSY LUGGAGE (Black) | 1 | $127.95 USD | View product → | |
| 36 | 64400-LEE8-E01-N1R | GUARD ENGINE (Black) | 1 | $260.07 USD | View product → | |
| 37 | 64500-LEE8-E01-N1R | GUARD BOOT (Black) | 1 | $41.43 USD | View product → | |
| 38 | 90110-LLB1-800 | SCREW SPECIAL 6*16 | 8 | $5.88 USD | View product → | |
| 39 | 90302-PWB1-900 | BOLT-WASH 5*22 | 22 | $4.92 USD | View product → | |
| 40 | 90305-GHK8-001 | NUT CLIP 6MM | 6 | $4.92 USD | View product → | |
| 41 | 90651-ALH3-700 | CLIP WIRE HARN | 1 | $0.93 USD | View product → | |
| 42 | 90652-LCA4-E00 | CLIP MUDGUARD | 7 | $4.92 USD | View product → | |
| 43 | 90652-LEE8-E00 | RIVET | 55 | $4.92 USD | View product → | |
| 44 | 90658-PWA2-900 | NUT STAMPED | 4 | $6.06 USD | View product → | |
| 45 | 90677-GAR1-004 | NUT CLIP 5MM | 13 | $3.00 USD | View product → | |
| 46 | 93404-06016-06 | BOLT WASHER 6*16 | 42 | $7.89 USD | View product → | |
| 47 | 93404-06020-06 | BOLT WASHER 6X20 | 6 | $3.00 USD | View product → | |
| 48 | 93404-06025-06 | BOLT WASHER 6*25 | 8 | $4.17 USD | View product → | |
| 49 | 93903-35260 | SCREW TAPPING 5*12 | 4 | $4.92 USD | View product → | |
| 50 | 95701-08020-06 | BOLT FLANGE 8*20 | 4 | $3.78 USD | View product → |
