E03 — Right Crankcase cover

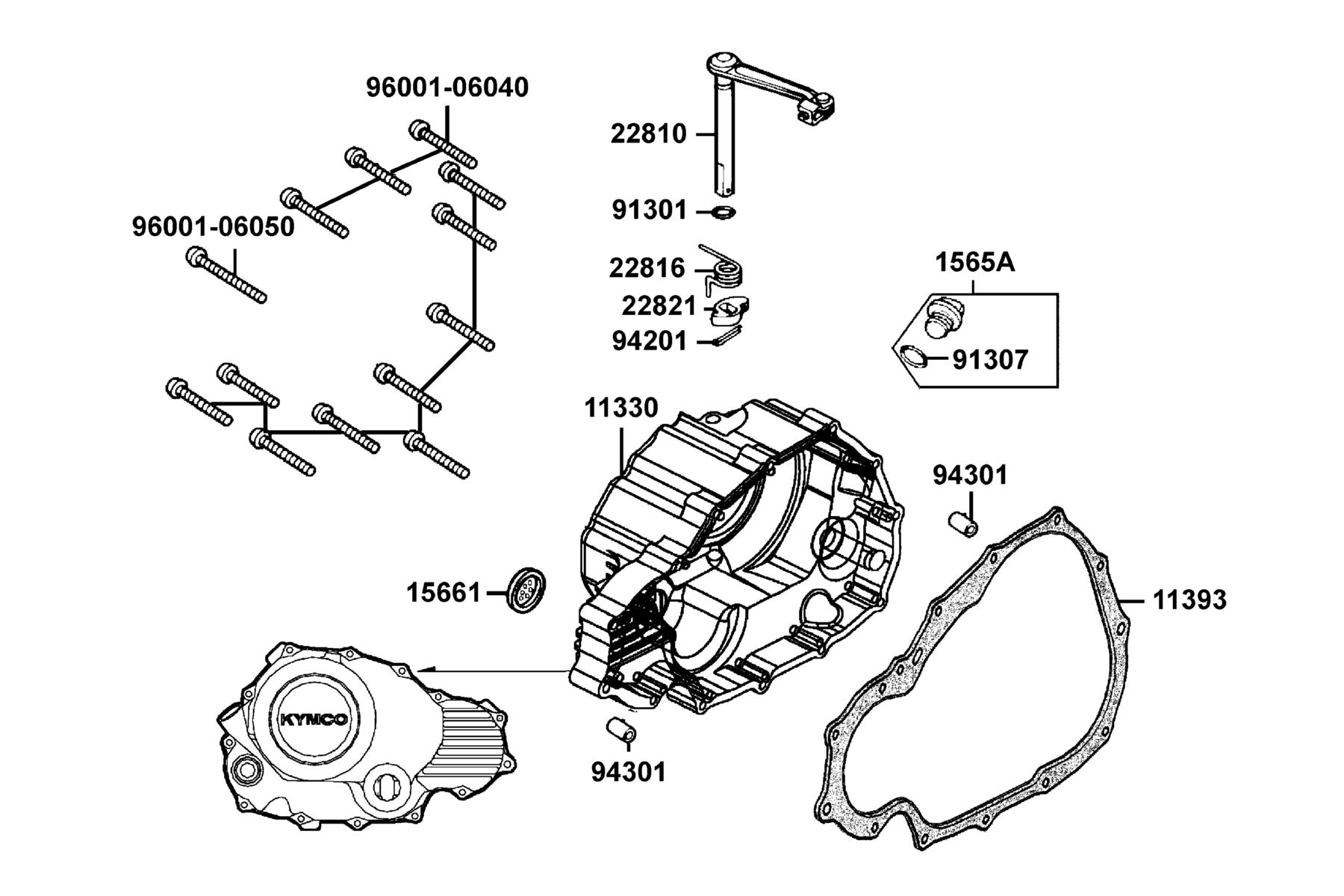

The Right Crankcase cover diagram contains 13 genuine OEM parts for the KYMCO SPADE 150 FI(2020). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 11330-LEC8-E00-MLA | COVER COMP R CRANK CASE | 1 | $275.58 USD | View product → | |
| 2 | 11393-KEC2-980 | GASKET R CRANK CASE | 1 | $30.72 USD | View product → | |
| 3 | 1565A-KKAK-900 | GAUGE OIL LEVEL ASSY | 1 | $37.29 USD | View product → | |
| 4 | 15661-LBA7-900 | FINDER OIL LEVEL | 1 | $32.73 USD | View product → | |
| 5 | 22810-ALH3-900 | LEVER COMP CLUTCH | 1 | $62.22 USD | View product → | |
| 6 | 22816-3E55-001 | SPRING CLUTCH LEVER | 1 | $9.78 USD | View product → | |
| 7 | 22821-3E55-001 | CAM CLUTCH LIFTER | 1 | $19.59 USD | View product → | |
| 8 | 91301-KBE2-710 | O-RING 6.8*1.9 | 1 | $4.92 USD | View product → | |
| 9 | 91307-0E35-001 | O RING 18*3 | 1 | $4.92 USD | View product → | |
| 10 | 94201-20150 | PIN SPLIT 2*15 | 1 | $2.61 USD | View product → | |
| 11 | 94301-08140 | DOWEL PIN 8*14 | 2 | $3.00 USD | View product → | |
| 12 | 96001-06040-02 | BOLT FLANGE SH 6*40 | 12 | $3.60 USD | View product → | |
| 13 | 96001-06050-02 | BOLT FLANGE SH 6*50 | 1 | $2.97 USD | View product → |
