E05 — Clutch

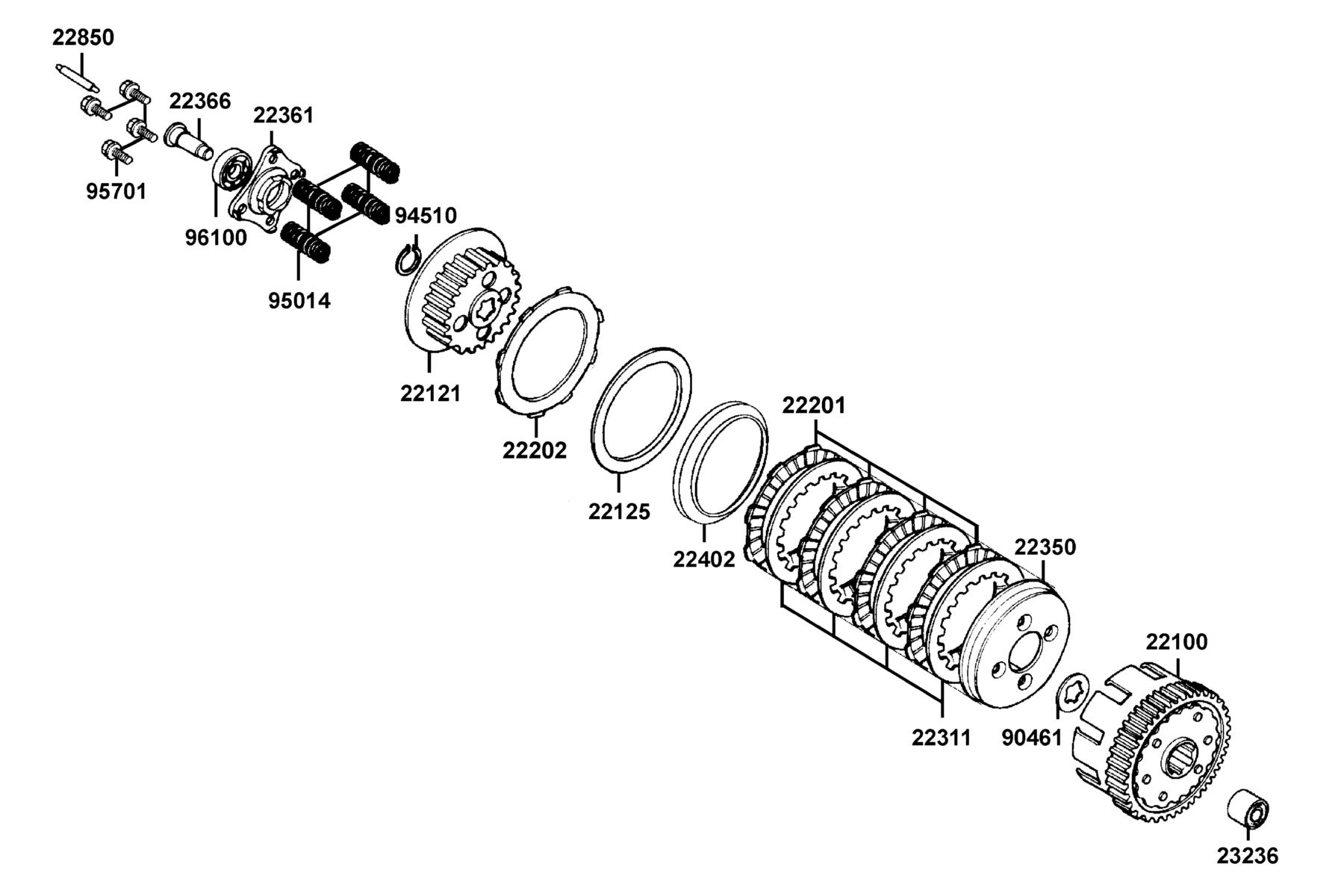

The Clutch diagram contains 17 genuine OEM parts for the KYMCO SPADE 150 FI(2020). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 22100-3D24-001 | OUTER COMP CLUTCH | 1 | $167.88 USD | View product → | |
| 2 | 22121-1G07-011 | CENTER CLUTCH | 1 | $116.25 USD | View product → | |
| 3 | 22125-KKAK-900 | SEAT ADJUSTER SPG | 1 | $41.97 USD | View product → | |
| 4 | 22201-KKAK-90A | DISK CLUTCH FRICTION | 1 | $49.20 USD | View product → | |
| 5 | 22202-KKAK-90A | DISK CLUTCH FRICTION | 1 | $66.45 USD | View product → | |
| 6 | 22311-1G07-001 | PLATE CLUTCH | 4 | $17.82 USD | View product → | |
| 7 | 22350-1G07-012 | PLATE CLUTCH PRESSURE | 1 | $106.08 USD | View product → | |
| 8 | 22361-1G07-001 | PLATE CLUTCH LIFTER | 1 | $37.41 USD | View product → | |
| 9 | 22366-3C83-001 | GUIDE PIN CLUTCH LIFTER | 1 | $27.39 USD | View product → | |
| 10 | 22402-KKAK-900 | SPR ADJUSTER | 1 | $37.41 USD | View product → | |
| 11 | 22850-3E55-001 | ROD CLUTCH LIFTER | 1 | $12.09 USD | View product → | |
| 12 | 23236-KEC2-900 | COLLAR CLUTCH | 1 | $37.41 USD | View product → | |
| 13 | 90461-ALH3-900 | WASHER SPLINE 20MM | 1 | $22.23 USD | View product → | |
| 14 | 94510-20000 | CIR CLIP EX 20 | 1 | $6.39 USD | View product → | |
| 15 | 95014-75110 | SPRING CLUTCH | 4 | $16.08 USD | View product → | |
| 16 | 95701-06022-06 | BOLT FLANGE 6*22 | 1 | $4.26 USD | View product → | |
| 17 | 96100-60010-00 | BEARING RADIAL BALL 6001 | 1 | $48.24 USD | View product → |
