E10 — Gearshift Drum●Gearshift Spindle

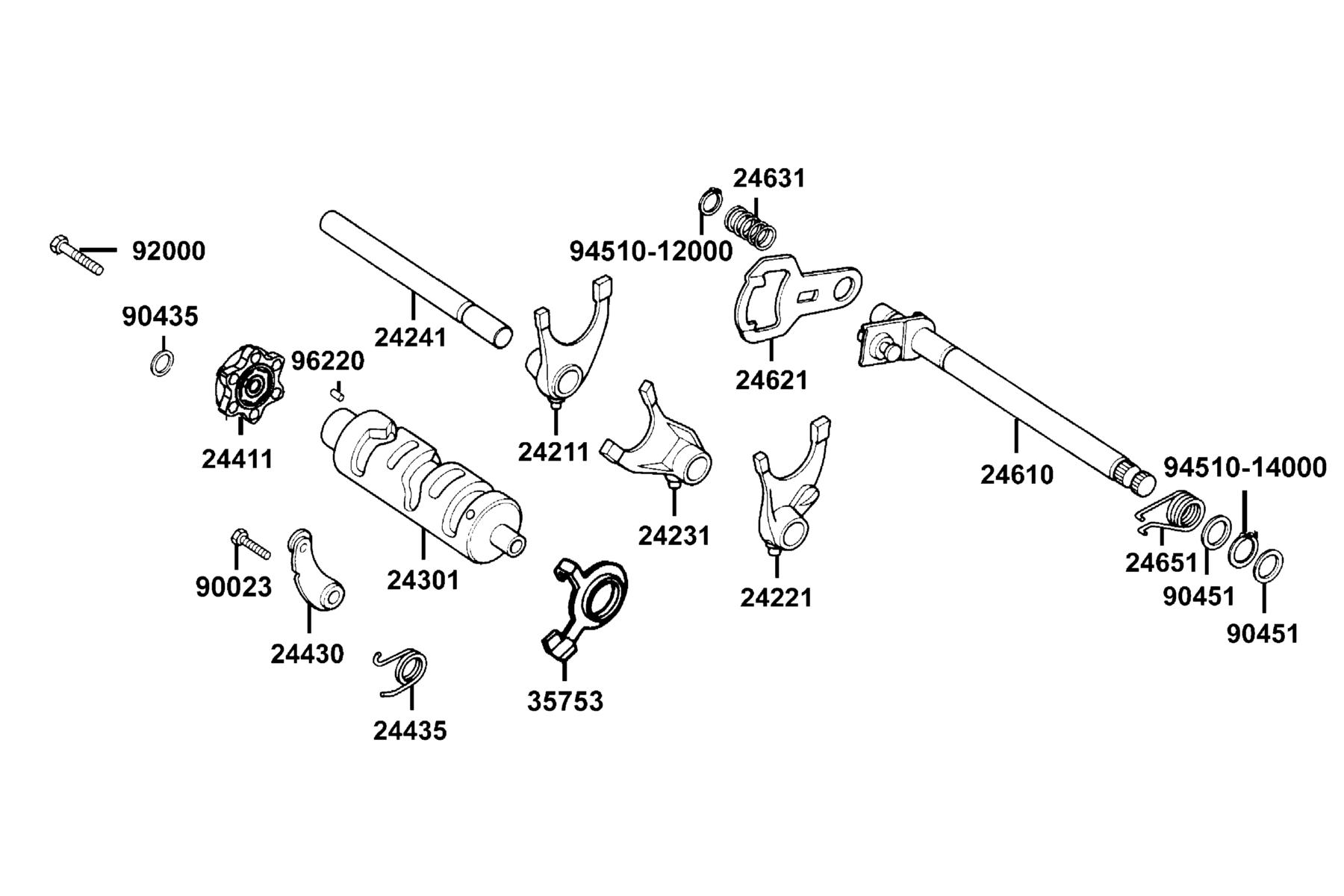

The Gearshift Drum●Gearshift Spindle diagram contains 20 genuine OEM parts for the KYMCO SPADE 150 FI(2020). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 24211-1G07-002 | FORK RIGHT GEAR SHIFT | 1 | $136.50 USD | View product → | |
| 2 | 24221-3E55-002 | FORK LEFT GEAR SHIFT | 1 | $132.18 USD | View product → | |
| 3 | 24231-1G07-011 | FORK CENTER GEAR SHIFT | 1 | $127.02 USD | View product → | |
| 4 | 24241-1G07-001 | SHAFT GEAR SHIFT FORK GUIDE | 1 | $21.99 USD | View product → | |
| 5 | 24301-KKAK-900 | DRUM GEAR SHIFT | 1 | $128.76 USD | View product → | |
| 6 | 24411-KKAK-900 | CAM GEAR SHIFT | 1 | $41.97 USD | View product → | |
| 7 | 24430-3D24-001 | STOPPER COMP GEAR SHIFT DRUM | 1 | $27.39 USD | View product → | |
| 8 | 24435-ALH3-900 | SPG SHIFT DRUM STOPPER | 1 | $4.92 USD | View product → | |
| 9 | 24610-KFC6-001 | SPINDLE COMP GEAR SHIFT | 1 | $56.67 USD | View product → | |
| 10 | 24621-1G07-761 | PLATE GEAR SHIFT | 1 | $55.29 USD | View product → | |
| 11 | 24631-1G07-001 | SPRING GEAR SHIFT PLATE | 1 | $9.78 USD | View product → | |
| 12 | 24651-3H98-941 | SPRING GEAR SHIFT RETURN | 1 | $17.82 USD | View product → | |
| 13 | 35753-0H28-602 | ROTOR NEUTROL SWITCH | 1 | $12.09 USD | View product → | |
| 14 | 90023-GBN2-001 | BOLT SEAT LOCK 6X13.5 | 1 | $6.06 USD | View product → | |
| 15 | 90435-KGAG-900 | WASHER 6.1MM | 1 | $4.26 USD | View product → | |
| 16 | 90451-0A01-001 | WASHER THRUST 14M/M | 2 | $1.95 USD | View product → | |
| 17 | 92000-06025-0G | BOLT HEX 6X25 | 1 | $11.79 USD | View product → | |
| 18 | 94510-12000 | CIR CLIP EXTERNAL 12 | 1 | $4.92 USD | View product → | |
| 19 | 94510-14000 | CIR CLIP EX 14 | 1 | $4.92 USD | View product → | |
| 20 | 96220-40100 | ROLLER 4*10 | 1 | $9.78 USD | View product → |
