E09 — Transmission●Kick Starter

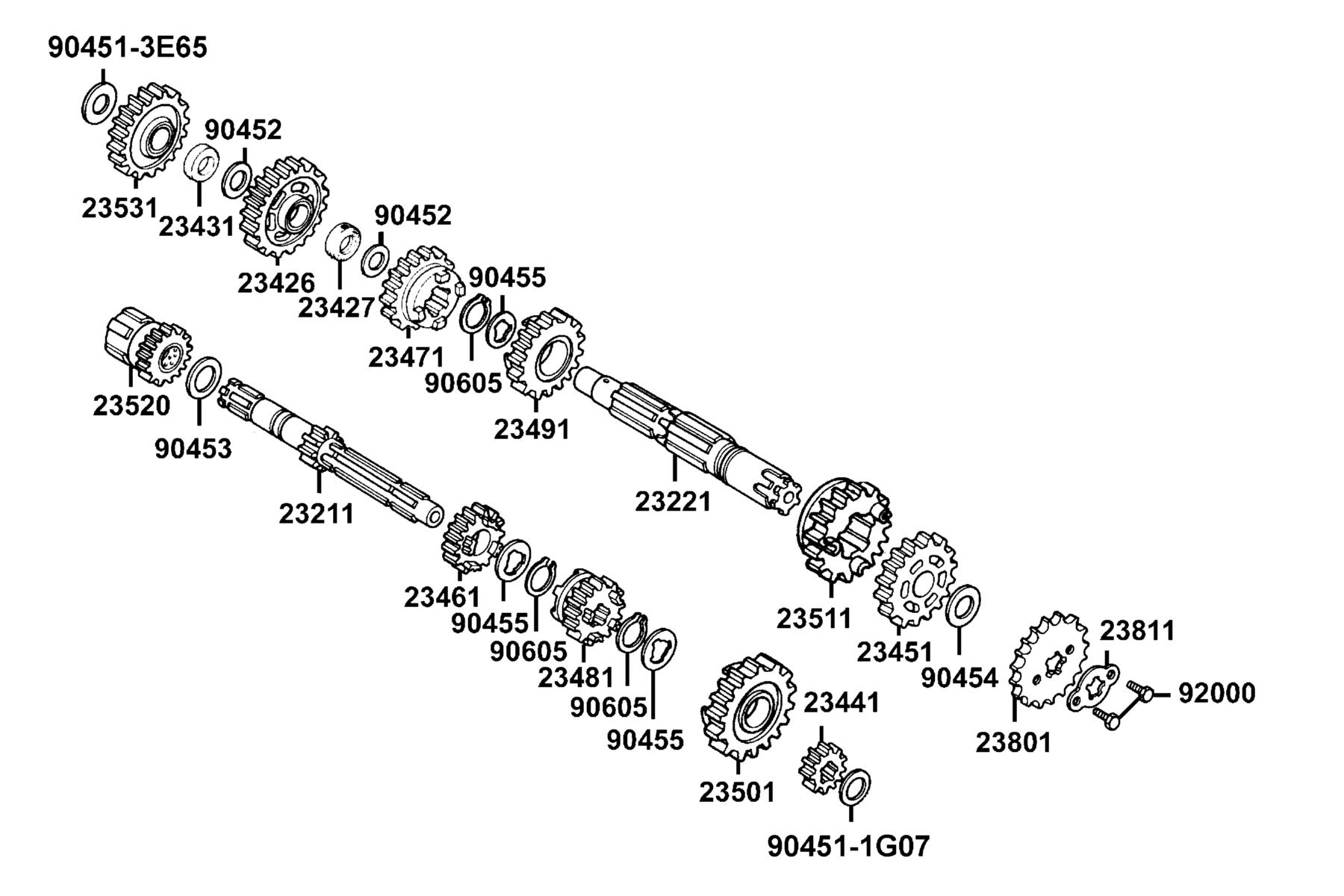

The Transmission●Kick Starter diagram contains 25 genuine OEM parts for the KYMCO SPADE 150 FI(2020). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 23211-KEC2-900 | SHAFT MAIN TRANSMISSION | 1 | $111.39 USD | View product → | |
| 2 | 23221-KKAK-900 | SHAFT COUNTER TRANSMISSION | 1 | $160.14 USD | View product → | |
| 3 | 23426-KKAK-900 | GEAR COUNTER SHAFT LOW | 1 | $80.52 USD | View product → | |
| 4 | 23427-4K39-001 | COLLAR COUNTER SHAFT LOW GEAR | 1 | $21.99 USD | View product → | |
| 5 | 23431-4K39-001 | COLLAR IDLE STARTER GEAR | 1 | $21.99 USD | View product → | |
| 6 | 23441-4K39-001 | GEAR M-2 | 1 | $81.48 USD | View product → | |
| 7 | 23451-4K39-901 | GEAR C-2 (32T) | 1 | $110.82 USD | View product → | |
| 8 | 23461-4K39-001 | GEAR M-3 (20T) | 1 | $91.08 USD | View product → | |
| 9 | 23471-4K39-001 | GEAR C-3 (28T) | 1 | $130.32 USD | View product → | |
| 10 | 23481-4K39-001 | GEAR M-4 (23T) | 1 | $124.38 USD | View product → | |
| 11 | 23491-4K39-001 | GEAR C-4 (26T) | 1 | $102.78 USD | View product → | |
| 12 | 23501-KKA8-900 | MAIN SHAFT FIFTH 26T | 1 | $106.08 USD | View product → | |
| 13 | 23511-KKA8-900 | GEAR C-5 (24T) | 1 | $118.41 USD | View product → | |
| 14 | 23520-KEC2-900 | GEAR COMP STARTER | 1 | $116.25 USD | View product → | |
| 15 | 23531-4K39-001 | GEAR ONLY IDLE STARTER | 1 | $73.62 USD | View product → | |
| 16 | 23801-KKAK-900 | SPROCKET DRIVE | 1 | $74.28 USD | View product → | |
| 17 | 23811-KCR3-601 | PLATE A2 FIXING | 1 | $4.98 USD | View product → | |
| 18 | 90451-1G07-001 | WASHER THRUST 15MM | 1 | $4.77 USD | View product → | |
| 19 | 90451-3E65-001 | WASHER THRUST 15M/M | 1 | $5.22 USD | View product → | |
| 20 | 90452-1G07-001 | WASHER THRUST 16.5M/M | 2 | $5.22 USD | View product → | |
| 21 | 90453-1G07-001 | WASHER THRUST 20M/M | 1 | $2.61 USD | View product → | |
| 22 | 90454-1G07-001 | WASHER THRUST 20MM B | 1 | $2.61 USD | View product → | |
| 23 | 90455-1G07-001 | WASHER SPLINE 20M/M A | 3 | $6.24 USD | View product → | |
| 24 | 90605-2L00-001 | SET RING 20MM | 3 | $5.22 USD | View product → | |
| 25 | 92000-06010-0G | BOLT HEX 6*10 (G) | 1 | $12.60 USD | View product → |
