F04 — Steering Handle●Stem

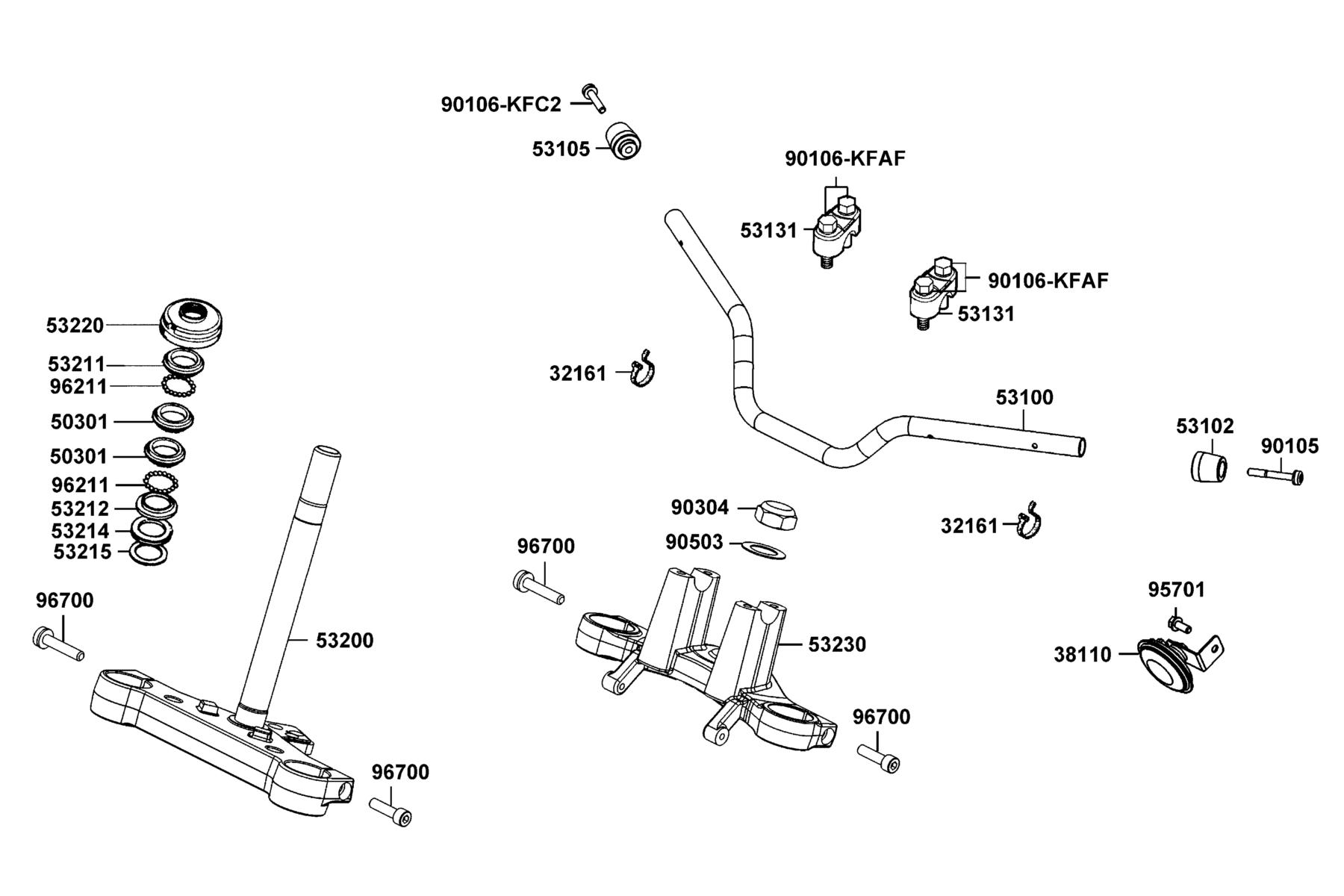

The Steering Handle●Stem diagram contains 23 genuine OEM parts for the KYMCO SPADE 150 FI(2020). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 32161-4D04-001 | BAND BI WIRE | 2 | $4.53 USD | View product → | |
| 2 | 38110-ALH3-900 | HORN COMP. | 1 | $128.13 USD | View product → | |
| 3 | 50301-0A41-011 | RACE STEERING BALL | 2 | $25.35 USD | View product → | |
| 4 | 53100-ALH3-900-M2S | HANDLE PIPE STEERING | 1 | $128.28 USD | View product → | |
| 5 | 53102-KEC8-900-F1S | END HANDLE | 1 | $42.18 USD | View product → | |
| 6 | 53105-LBB5-E00-F1S | END R STRG HANDLE | 1 | $42.18 USD | View product → | |
| 7 | 53131-LBF3-800-M2A | HOLDER HNDL PIPE | 2 | $47.52 USD | View product → | |
| 8 | 53200-ALH3-900 | STEM COMP STEERING | 1 | $395.04 USD | View product → | |
| 9 | 53211-0H28-011 | RACE STRG TOP CONE | 1 | $37.41 USD | View product → | |
| 10 | 53212-0L30-011 | RACE STRG BOTTOM CONE | 1 | $37.41 USD | View product → | |
| 11 | 53214-0A01-011 | DUST SEAL STRG HEAD | 1 | $6.06 USD | View product → | |
| 12 | 53215-0A01-001 | WASH STRG HDL DUST-SEAL | 1 | $6.06 USD | View product → | |
| 13 | 53220-LBE8-900 | THREAD COMP STRG HD TOP | 1 | $36.36 USD | View product → | |
| 14 | 53230-ALH3-900-NEA | BRIDGE FORK TOP | 1 | $434.82 USD | View product → | |
| 15 | 90105-KHB4-900 | BOLT WASH M8*60 | 1 | $21.21 USD | View product → | |
| 16 | 90106-KFAF-900 | BOLT SPECIAL 8*32 | 4 | $7.56 USD | View product → | |
| 17 | 90106-KFAF-900-invalid | BOLT SPECIAL 8*32 | 4 | $9.84 USD | View product → | |
| 18 | 90106-KFC2-900 | BOLT-WASH 8MM | 1 | $10.80 USD | View product → | |
| 19 | 90304-KHBH-900 | NUT STRG STEM | 1 | $38.94 USD | View product → | |
| 20 | 90503-0A51-870 | WASHER STEERING STEM NUT | 1 | $1.86 USD | View product → | |
| 21 | 95701-08012-06 | BOLT FLANGE 8*12 | 1 | $6.24 USD | View product → | |
| 22 | 96211-06000 | BALL STEEL #6 | 42 | $1.83 USD | View product → | |
| 23 | 96700-LCA1-E00 | BOLT SOCKET 8x30 (G) | 4 | $9.51 USD | View product → |
