F08 — Front Wheel

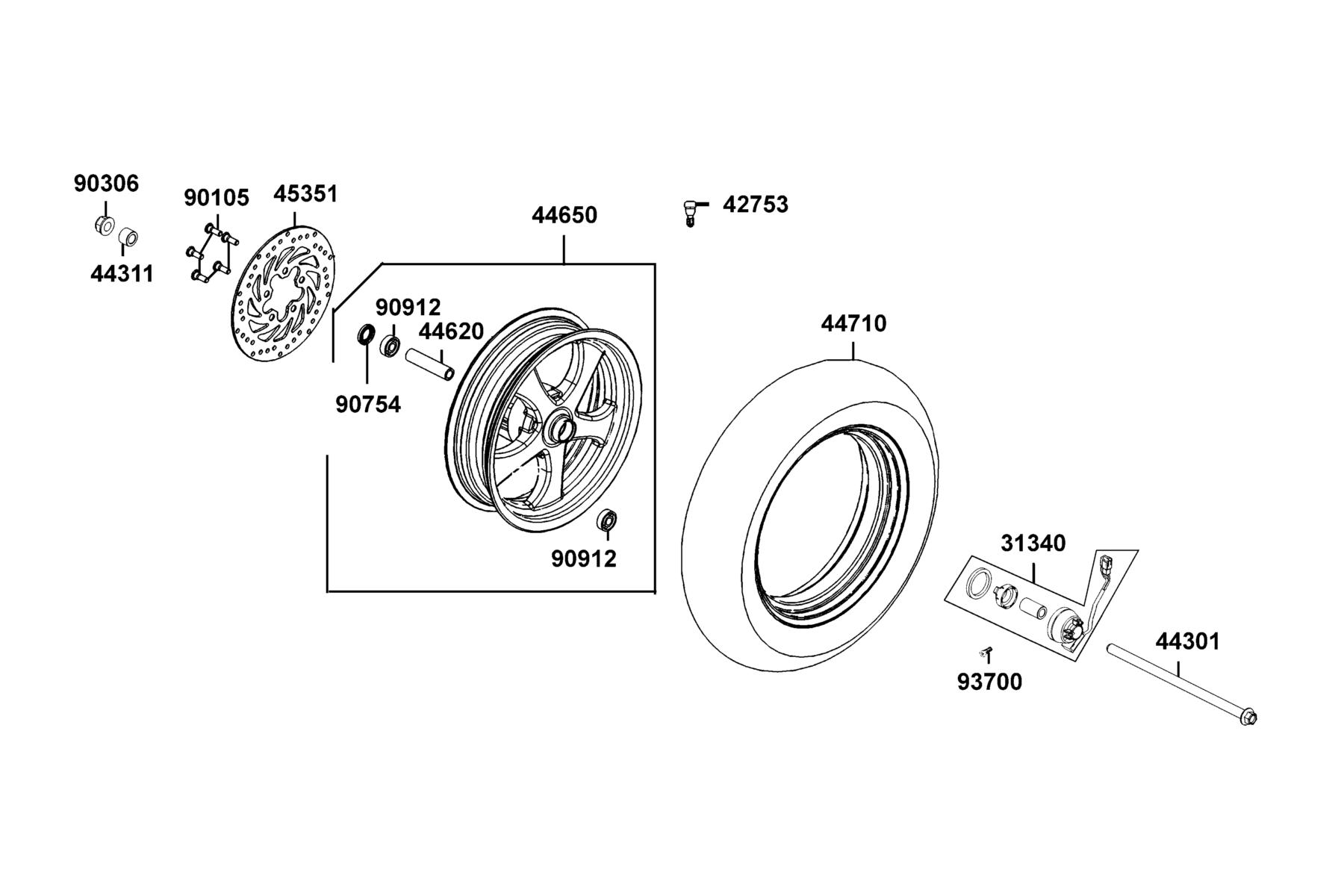

The Front Wheel diagram contains 14 genuine OEM parts for the KYMCO SPADE 150 FI(2020). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 31340-ALH3-900 | SPEED SENSOR???ASSY | 1 | $227.04 USD | View product → | |
| 2 | 42753-KNBN-90B | VALVE RIM (TR412) | 1 | $17.70 USD | View product → | |
| 3 | 44301-LKE6-900 | AXLE FR WHEEL M12*245MM | 1 | $55.95 USD | View product → | |
| 4 | 44311-GAR1-950 | COLLAR FR WHEEL SIDE | 1 | $15.51 USD | View product → | |
| 5 | 44620-KHD8-900 | COLLAR FR AXLE DISTANCE | 1 | $18.42 USD | View product → | |
| 6 | 44650-ALH3-306-NEA | WHEEL SET FR | 1 | $449.92 USD | View product → | |
| 7 | 44710-ALH3-900 | TIRE ASSY FR (120/80-12 65P) | 1 | $547.41 USD | View product → | |
| 8 | 45351-KHE7-E00 | DISK RR BRAKE | 1 | $153.21 USD | View product → | |
| 9 | 90105-KCR3-001 | BOLT FR DISK 8*24 | 5 | $11.94 USD | View product → | |
| 10 | 90105-KCR3-001-invalid | BOLT FR DISK 8*24 | 5 | $15.51 USD | View product → | |
| 11 | 90306-LFE2-900 | NUT FLANGE 12MM | 1 | $15.63 USD | View product → | |
| 12 | 90754-GHC8-00A | SEAL DUST 20*32*5 | 1 | $3.51 USD | View product → | |
| 13 | 90912-KFLF-00D | BEARING 6201 LLU | 2 | $18.03 USD | View product → | |
| 14 | 93700-05016-0H | SCREW OVAL 5X16 | 1 | $2.31 USD | View product → |
