E04 — Oil Pump

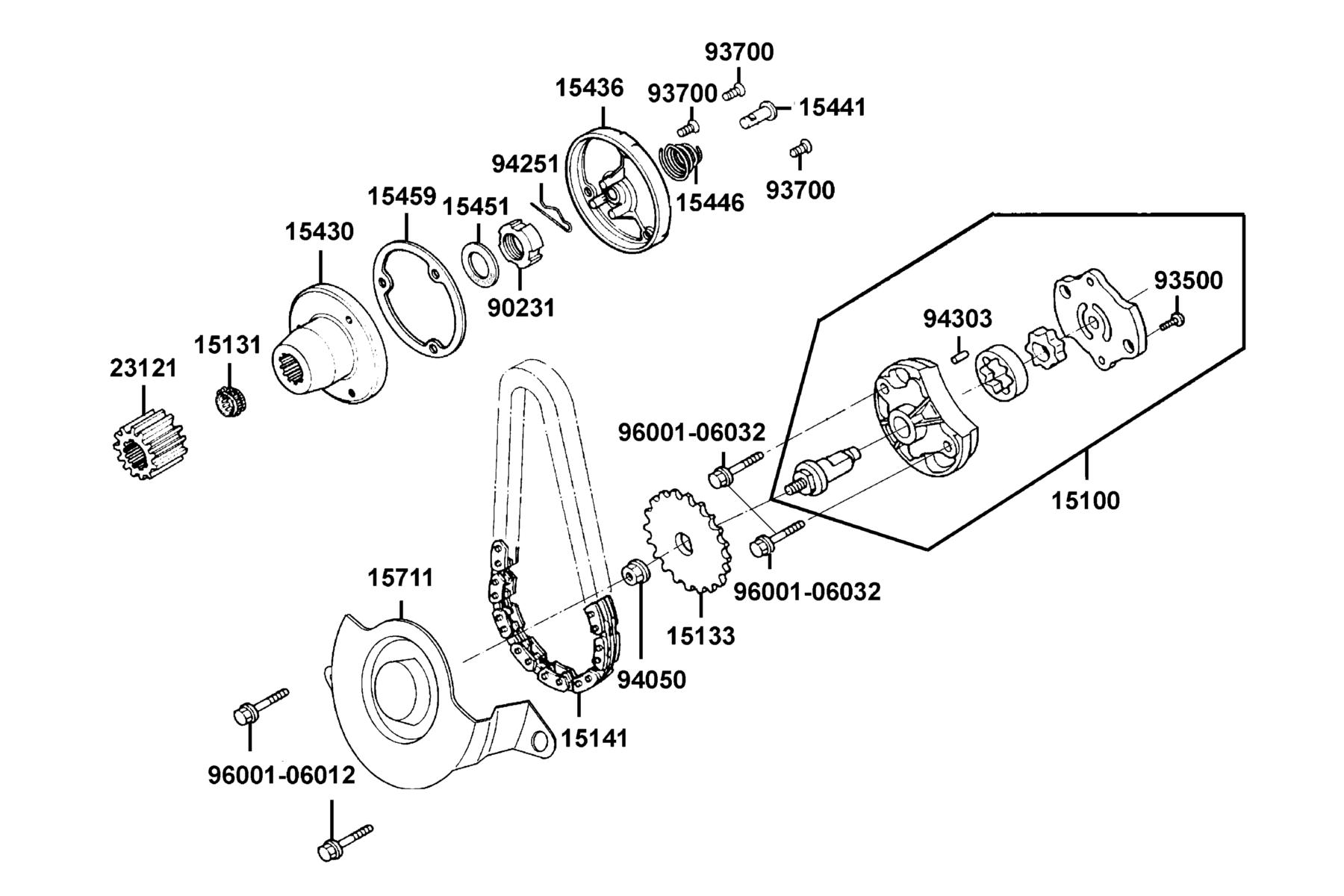

The Oil Pump diagram contains 19 genuine OEM parts for the KYMCO SPADE 150 FI(2020). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 15100-LBE8-900 | PUMP ASSY OIL | 1 | $116.25 USD | View product → | |
| 2 | 15131-KEC2-900 | SPROCKET OIL PUMP DRIVE | 1 | $83.31 USD | View product → | |
| 3 | 15133-GFY6-901 | SPROCKET OIL PUMP DRIVE | 1 | $23.40 USD | View product → | |
| 4 | 15141-KEC2-900 | CHAIN OIL PUMP | 1 | $79.86 USD | View product → | |
| 5 | 15430-KKAK-910 | ROTER COMP OIL FILTER | 1 | $48.24 USD | View product → | |
| 6 | 15436-1G07-001 | CAP OIL FILTER ROTOR | 1 | $37.41 USD | View product → | |
| 7 | 15441-1G07-001 | OIL THROUGH | 1 | $17.55 USD | View product → | |
| 8 | 15446-1G07-001 | SPRING OIL THROUGH | 1 | $9.78 USD | View product → | |
| 9 | 15451-1G07-001 | WASHER LOCK OIL FILTER ROTOR | 1 | $6.06 USD | View product → | |
| 10 | 15459-1G07-980 | GASKET OIL FILTER ROTOR CAP | 1 | $4.92 USD | View product → | |
| 11 | 15711-KEC2-900 | SEPARATOR OIL | 1 | $19.59 USD | View product → | |
| 12 | 23121-KEC2-900 | GEAR PRIMARY DRIVE | 1 | $60.66 USD | View product → | |
| 13 | 90231-2L00-011 | NUT LOCK 16MM | 1 | $16.08 USD | View product → | |
| 14 | 93700-05012-0F | SCREW OVAL 5*12 | 1 | $11.79 USD | View product → | |
| 15 | 94050-06080 | NUT FLANGE 6MM | 1 | $2.31 USD | View product → | |
| 16 | 94251-08400 | PIN LOCK 8MM | 1 | $4.92 USD | View product → | |
| 17 | 94303-04065 | DOWEL PIN 4X6.5 | 1 | $5.43 USD | View product → | |
| 18 | 96001-06012-06 | BOLT FLANGE SH 6*12 | 1 | $1.95 USD | View product → | |
| 19 | 96001-06032-06 | BOLT FLANGE SH 6*32 | 1 | $11.46 USD | View product → |
