F06 — Front Fork

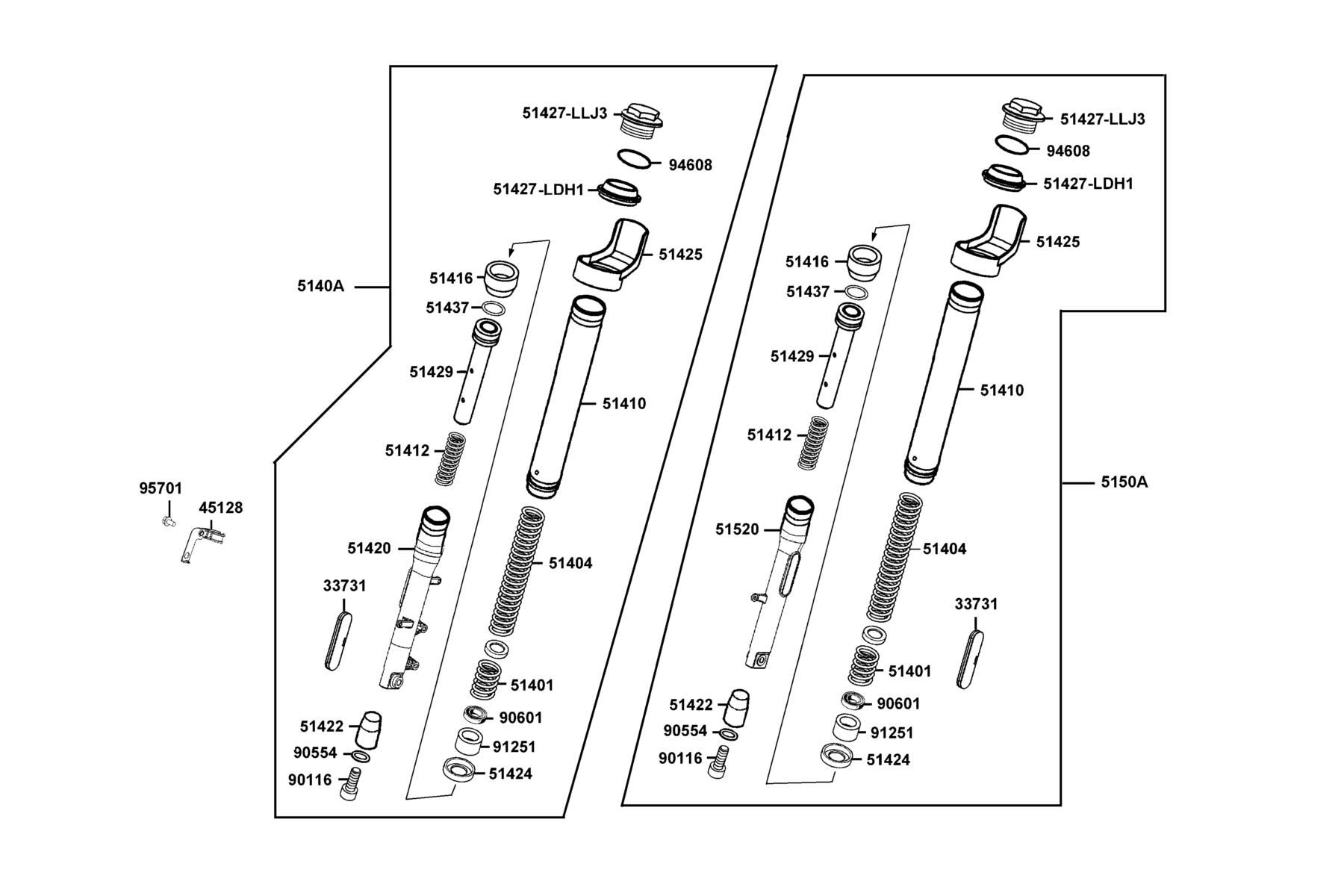

The Front Fork diagram contains 23 genuine OEM parts for the KYMCO SPADE 150 FI(2020). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 33731-ALH3-900 | REFLEX REFLECTOR. SIDE | 2 | $37.92 USD | View product → | |
| 2 | 45128-LBA2-920 | CLAMPER FR BRK HOSE | 1 | $22.92 USD | View product → | |
| 3 | 51401-ALH3-900 | SPRING | 2 | $50.34 USD | View product → | |
| 4 | 51404-LGL7-E00 | SPRING COLLAR | 2 | $51.18 USD | View product → | |
| 5 | 5140A-ALH3-900-NJA | FORK SET???A FRONT RIGHT (Silver) | 1 | $490.24 USD | View product → | |
| 6 | 51410-ALH3-900 | FORK PIPE COMP | 2 | $486.63 USD | View product → | |
| 7 | 51412-LLJ3-E00 | REBOUND SPRING | 2 | $9.39 USD | View product → | |
| 8 | 51416-LLJ3-E00 | GUIDE BUSH | 2 | $81.48 USD | View product → | |
| 9 | 51420-ALH3-900-NJA | BOTTOM CASE R (Silver) | 1 | $318.39 USD | View product → | |
| 10 | 51422-KED9-900 | OIL LOCK PIECE | 2 | $18.72 USD | View product → | |
| 11 | 51424-LLJ3-E00 | SPACER | 2 | $21.03 USD | View product → | |
| 12 | 51425-LGL7-E00 | DUST COVER | 2 | $35.64 USD | View product → | |
| 13 | 51427-LDH1-E00 | DUST SEAL | 2 | $14.31 USD | View product → | |
| 14 | 51427-LLJ3-E00 | FORK BOLT SET | 2 | $9.84 USD | View product → | |
| 15 | 51429-ALH3-900 | PIPE SEAT COMP | 1 | $105.12 USD | View product → | |
| 16 | 51437-LGL7-E00 | PISTON RING | 2 | $21.03 USD | View product → | |
| 17 | 5150A-ALH3-900-NJA | FORK SET FR L (Silver) | 1 | $490.24 USD | View product → | |
| 18 | 90116-3C83-72A | BOLT | 2 | $5.22 USD | View product → | |
| 19 | 90554-2C83-001 | PACKING | 2 | $2.25 USD | View product → | |
| 20 | 90601-LLJ3-E00 | OIL SEAL STOPPER RING | 2 | $8.10 USD | View product → | |
| 21 | 91251-LLJ3-E00 | OIL SEAL | 2 | $74.91 USD | View product → | |
| 22 | 94608-LLJ3-E00 | O-RING | 2 | $4.92 USD | View product → | |
| 23 | 95701-06012-06 | BOLT FLANGE 6X12 | 1 | $1.86 USD | View product → |
