E06 — Generator●Starting Motor

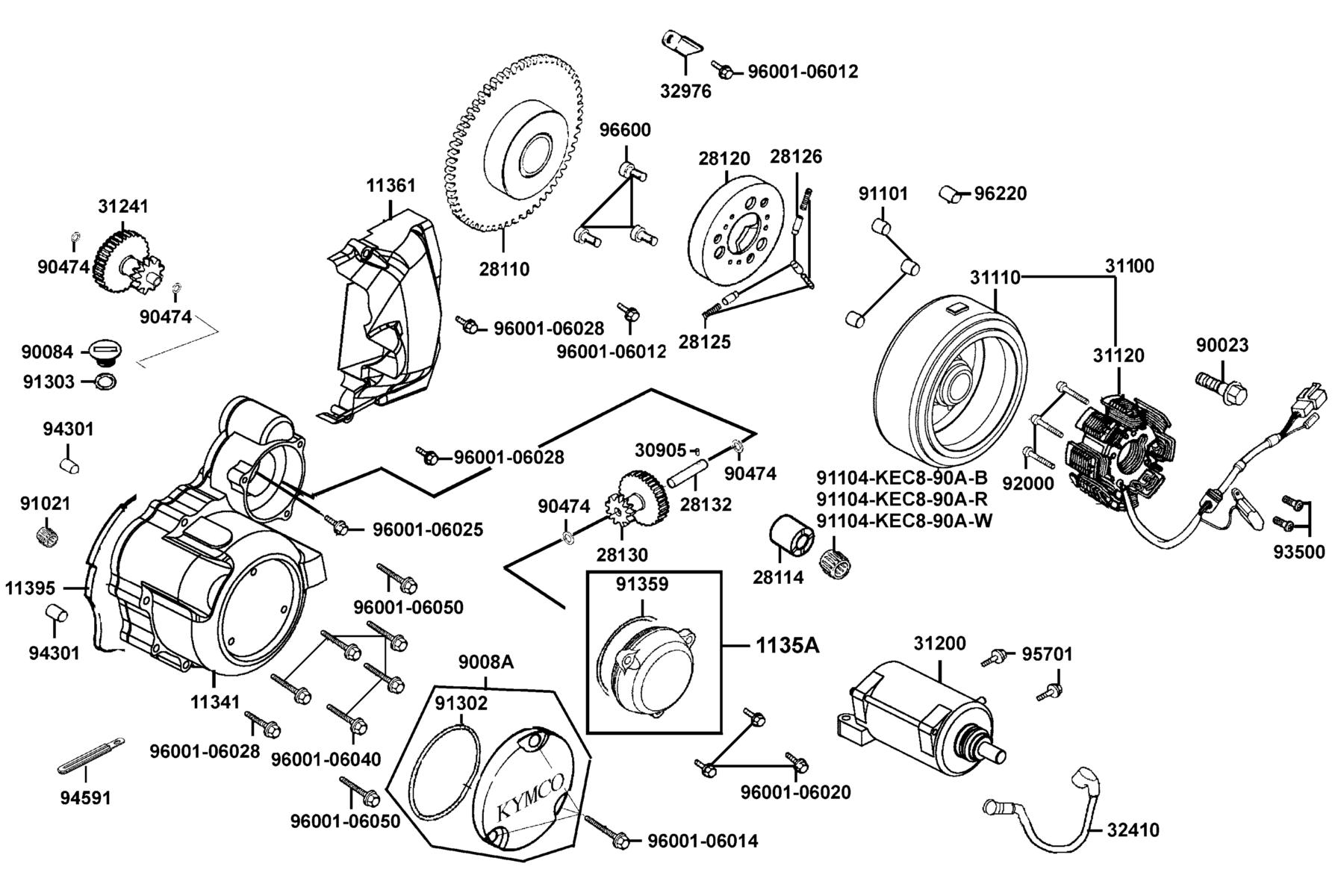

The Generator●Starting Motor diagram contains 45 genuine OEM parts for the KYMCO SPADE 150 FI(2020). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 11341-LBE8-900-MLA | COVER LEFT CRANK CASE | 1 | $202.35 USD | View product → | |
| 2 | 1135A-LBF3-800-NEA | COVER REDUCTION GEAR ASSY | 1 | $98.28 USD | View product → | |
| 3 | 11361-LBF3-900-NEP | COVER LEFT REAR CRANK CASE | 1 | $116.34 USD | View product → | |
| 4 | 11395-KEC2-980 | GASKET LEFT CRANK CASE | 1 | $14.19 USD | View product → | |
| 5 | 28110-KKA7-900 | GEAR COMP STARTING DRIVEN | 1 | $132.18 USD | View product → | |
| 6 | 28114-KKA7-900 | BOSS STARTING GEAR COMP | 1 | $49.20 USD | View product → | |
| 7 | 28120-GFY6-315 | OUTER COMP STARTING CLUTCH | 1 | $109.80 USD | View product → | |
| 8 | 28125-4F26-001 | SPRING ROLLER STARTER CLUTCH | 3 | $3.84 USD | View product → | |
| 9 | 28125-4F26-001(wrong) | SPRING ROLLER STARTER CLUTCH | 3 | $4.98 USD | View product → | |
| 10 | 28126-KUDU-900 | CAP STARTING ROLLER SPRING | 3 | $11.31 USD | View product → | |
| 11 | 28130-KBE2-981 | GEAR COMP REDUCTION | 1 | $105.96 USD | View product → | |
| 12 | 28132-KGG7-001 | SHAFT REDUCTION GEAR | 1 | $21.99 USD | View product → | |
| 13 | 30905-2F16-001 | KNOCK PIN 3*5.2 | 1 | $8.49 USD | View product → | |
| 14 | 31100-ALH3-90B | AC GEN ASSY | 1 | $315.06 USD | View product → | |
| 15 | 31110-LGM5-90B | FLYWHEEL COMP (D406) | 1 | $322.98 USD | View product → | |
| 16 | 31120-ALH3-90B | STATOR COMP (D406) | 1 | $499.35 USD | View product → | |
| 17 | 31200-LBF3-800-NEA | MOTOR ASSY STARTER | 1 | $555.12 USD | View product → | |
| 18 | 31241-KBE2-981 | SHAFT STARTER GEAR | 1 | $127.38 USD | View product → | |
| 19 | 32410-KKC4-900 | CABLE STARTER MOTOR | 1 | $56.46 USD | View product → | |
| 20 | 32976-1G07-001 | CLAMPER WIRE HARNESS | 1 | $6.06 USD | View product → | |
| 21 | 90023-KGG7-001 | BOLT ROTOR SETTING | 1 | $15.84 USD | View product → | |
| 22 | 90084-KKF9-901-NEA | CAP ACG | 1 | $18.57 USD | View product → | |
| 23 | 9008A-LBF3-800-NEA | CAP ASSY | 1 | $88.50 USD | View product → | |
| 24 | 90474-1G47-001 | WASHER 10.5MM | 4 | $2.61 USD | View product → | |
| 25 | 91021-1H48-005 | BEARING NEEDLE 1010 | 1 | $42.72 USD | View product → | |
| 26 | 91101-1K79-711 | ROLLER 10*10 | 3 | $6.78 USD | View product → | |
| 27 | 91104-KEC8-90B-B | BEARING NEEDLE 22*28*17V2 (-0.002~-0.004) | 1 | — | Part details → | |
| 28 | 91104-KEC8-90B-W | BEARING NEEDLE 22*28*17V2 (-0.004~-0.006) | 1 | — | Part details → | |
| 29 | 91302-5G67-004 | O-RING 27.4*2.4 | 1 | $10.14 USD | View product → | |
| 30 | 91303-3G77-001 | O-RING 13.8*2.5 | 1 | $4.92 USD | View product → | |
| 31 | 91359-3A71-004 | O-RING 63*3.0 | 1 | $4.92 USD | View product → | |
| 32 | 92000-05032-0G | BOLT HEX 5X32 | 1 | $11.79 USD | View product → | |
| 33 | 93500-05016-0F | SCREW PAN 5*16 | 1 | $11.79 USD | View product → | |
| 34 | 94301-10140 | DOWEL PIN 10*14 | 2 | $6.06 USD | View product → | |
| 35 | 94591-LEA7-E01 | CLIP 2X150 | 1 | $13.95 USD | View product → | |
| 36 | 95701-06028-02 | BOLT FLANGE 6*28 | 2 | $6.24 USD | View product → | |
| 37 | 96001-06012-06 | BOLT FLANGE SH 6*12 | 1 | $1.95 USD | View product → | |
| 38 | 96001-06014-02 | BOLT FLANGE 6*14 | 3 | $3.27 USD | View product → | |
| 39 | 96001-06020-02 | BOLT FLANGE SH 6*20 | 3 | $3.54 USD | View product → | |
| 40 | 96001-06025-06 | BOLT FLANGE SH 6*25 | 1 | $2.61 USD | View product → | |
| 41 | 96001-06028-02 | BOLT FLANGE SH 6*28 | 3 | $6.24 USD | View product → | |
| 42 | 96001-06040-02 | BOLT FLANGE SH 6*40 | 5 | $3.60 USD | View product → | |
| 43 | 96001-06050-02 | BOLT FLANGE SH 6*50 | 2 | $2.97 USD | View product → | |
| 44 | 96220-60100 | ROLLER 6X10 | 1 | $4.92 USD | View product → | |
| 45 | 96600-08015-16 | SOCKET BOLT 8*15 | 1 | $21.60 USD | View product → |
