F16 — Pedal●Stand

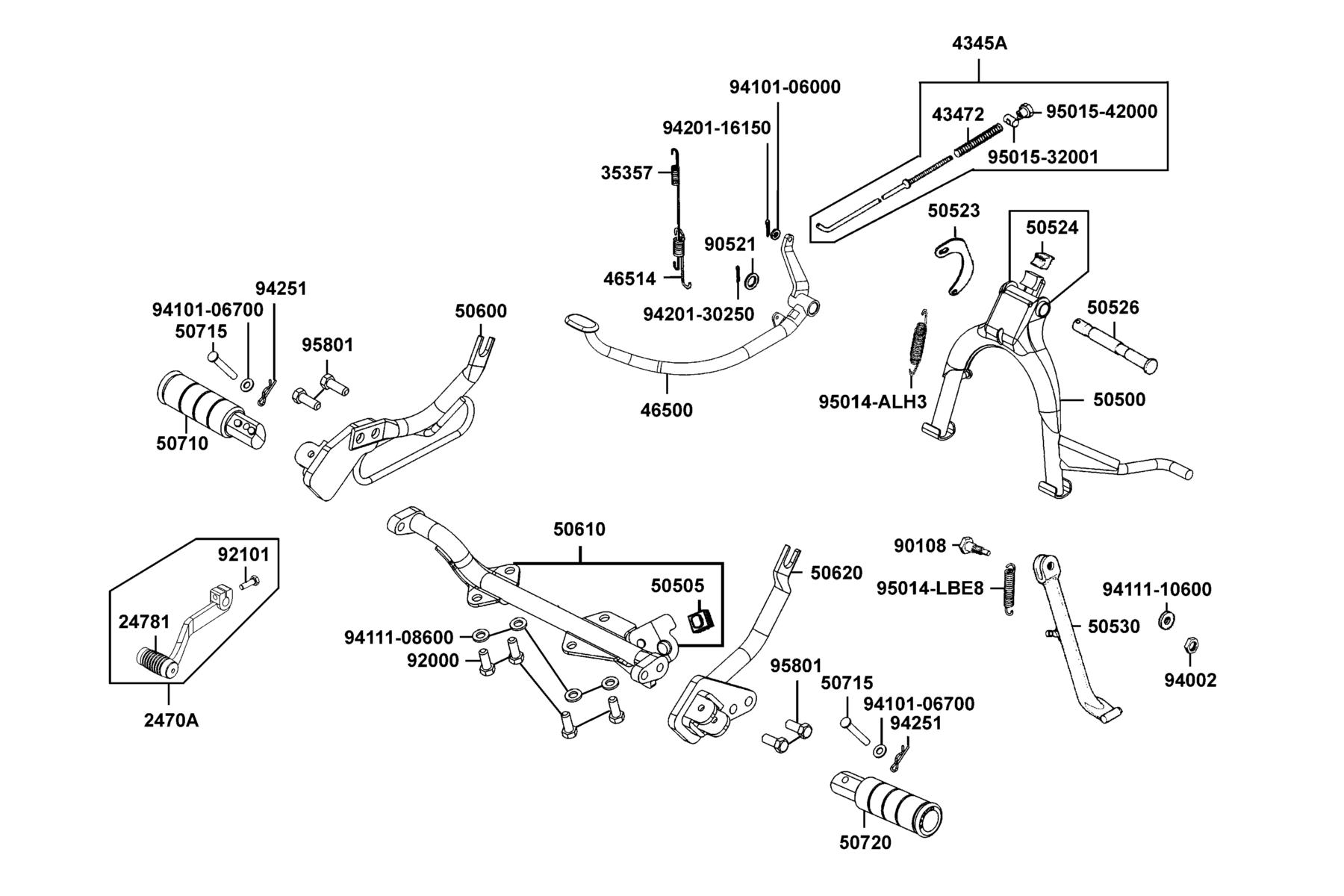

The Pedal●Stand diagram contains 36 genuine OEM parts for the KYMCO SPADE 150 FI(2020). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 2470A-ALH3-900 | PEDAL ASSY CHANGE | 1 | $134.97 USD | View product → | |
| 2 | 24781-4K49-001 | RUBBER PEDAL CHANGE | 1 | $9.51 USD | View product → | |
| 3 | 35357-LBE8-900 | SPRING STOP SWITCH | 1 | $9.51 USD | View product → | |
| 4 | 4345A-ALH3-900 | ROD RR.BRAKE ASSY | 1 | $132.87 USD | View product → | |
| 5 | 43472-LBE8-900 | RR BRK ROD SPRING | 1 | $9.51 USD | View product → | |
| 6 | 46500-ALH3-900 | PEDAL COMP RR BRAKE | 1 | $190.74 USD | View product → | |
| 7 | 46514-LBE8-900 | SPRING RR PEDAL | 1 | $9.51 USD | View product → | |
| 8 | 50500-ALH3-900 | STAND MAIN | 1 | $259.77 USD | View product → | |
| 9 | 50505-KUDU-900 | STOPPER RUBBER STAND | 1 | $5.67 USD | View product → | |
| 10 | 50523-LBE8-900 | HOOK MAIN STAND SPRING | 1 | $22.23 USD | View product → | |
| 11 | 50524-3G97-001 | RUB STAND STOPPER | 1 | $6.06 USD | View product → | |
| 12 | 50526-LBE8-900 | SHAFT MAIN STAND PIVOT | 1 | $43.23 USD | View product → | |
| 13 | 50530-ALH3-900 | BAR (COMP) SIDE STAND | 1 | $95.64 USD | View product → | |
| 14 | 50600-ALH3-900-NES | STAY R STEP BAR | 1 | $169.65 USD | View product → | |
| 15 | 50610-ALH3-900-NES | BAR COMP STEP | 1 | $260.43 USD | View product → | |
| 16 | 50620-ALH3-900-NES | STAY L STEP BAR | 1 | $138.39 USD | View product → | |
| 17 | 50710-ALH3-Y00 | BAR PILLION STEP R | 1 | $76.98 USD | View product → | |
| 18 | 50715-LEC8-E00 | PIN RR STEP | 2 | $19.59 USD | View product → | |
| 19 | 50720-ALH3-Y00 | BAR PILLION STEP L | 1 | $104.58 USD | View product → | |
| 20 | 90108-LBE8-900 | PIVOT SCREW SIDE STAND | 1 | $9.51 USD | View product → | |
| 21 | 90521-0H28-001 | DIA WASHER 17*22 | 1 | $4.92 USD | View product → | |
| 22 | 92000-08020-0G | BOLT HEX 8X20 | 1 | $2.31 USD | View product → | |
| 23 | 92101-06020-06 | BOLT HEX 6X20 | 1 | $11.79 USD | View product → | |
| 24 | 94002-10060-0S | NUT HEX 10MM | 1 | $4.26 USD | View product → | |
| 25 | 94101-06000 | WASHER PLAIN 6MM | 1 | $4.92 USD | View product → | |
| 26 | 94101-06700 | WASHER PLAIN 6MM | 2 | $4.92 USD | View product → | |
| 27 | 94111-08600 | WASHER SPG 8MM | 6 | $2.31 USD | View product → | |
| 28 | 94111-10600 | WASHER SPG 10MM | 1 | $2.31 USD | View product → | |
| 29 | 94201-16150 | PIN SPLIT 1.6*15 | 1 | $1.86 USD | View product → | |
| 30 | 94201-30250 | PIN SPLIT 3X25 | 1 | $4.92 USD | View product → | |
| 31 | 94251-06100 | PIN LOCK 6MM | 2 | $7.23 USD | View product → | |
| 32 | 95014-ALH3-900 | SPG B MAIN STAND | 1 | $22.23 USD | View product → | |
| 33 | 95014-LBE8-900 | SPG A SIDE STAND | 1 | $9.51 USD | View product → | |
| 34 | 95015-32001 | JOINT B BRAKE ARM | 1 | $3.00 USD | View product → | |
| 35 | 95015-42000 | NUT B ADJUST | 1 | $3.78 USD | View product → | |
| 36 | 95801-08025-06 | BOLT FLANGE 8*25 | 4 | $4.59 USD | View product → |
