F10 — Rear Wheel

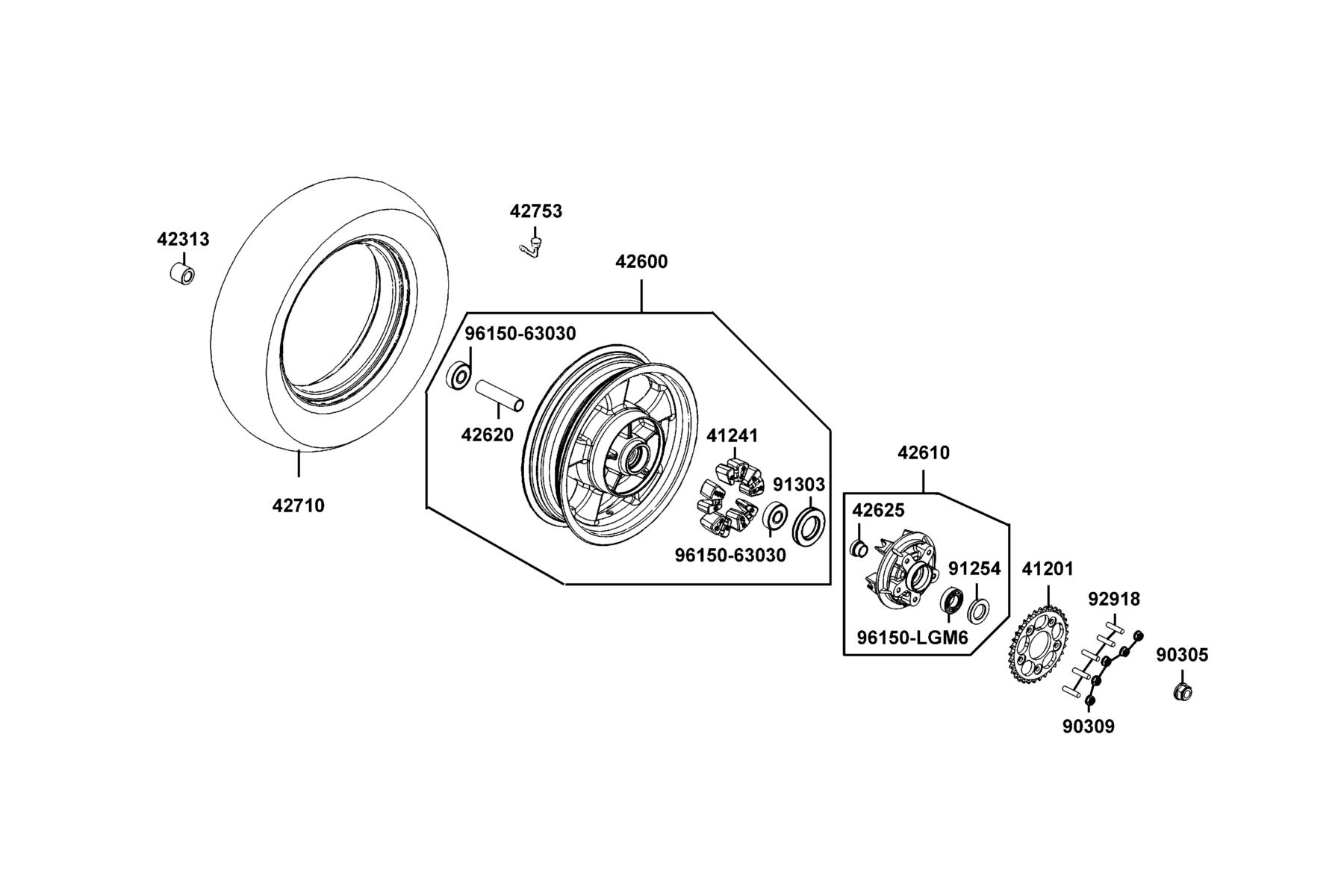

The Rear Wheel diagram contains 16 genuine OEM parts for the KYMCO SPADE 150 FI(2020). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 41201-ALH3-900 | SPRKT FINAL DRIVEN (33T) | 1 | $167.16 USD | View product → | |
| 2 | 41241-LGM6-920 | DAMPER RR WHEEL | 5 | $30.63 USD | View product → | |
| 3 | 42313-KYCY-500 | COLLAR RR HUB SIDE | 1 | $30.63 USD | View product → | |
| 4 | 42600-ALH3-307-NEA | WHEEL ASSY RR | 1 | $476.00 USD | View product → | |
| 5 | 42610-LGM6-305-NEA | FLANGE SET FINAL DRIVEN | 1 | $430.86 USD | View product → | |
| 6 | 42620-LGM8-920 | COLLAR REAR AXLE DISTANCE | 1 | $16.77 USD | View product → | |
| 7 | 42625-LGM6-920 | Collar B, RR Axle Dist | 1 | $28.62 USD | View product → | |
| 8 | 42710-ALH3-900 | TIRE ASSY REAR (130/70-12 56P) | 1 | $339.60 USD | View product → | |
| 9 | 42753-0D04-900 | RIM VALVE (PVR 70) | 1 | $20.58 USD | View product → | |
| 10 | 90305-KKAK-900 | NUT U 16MM | 1 | $22.38 USD | View product → | |
| 11 | 90309-GLW0-90A | NUT U FLANGE 8MM | 5 | $6.06 USD | View product → | |
| 12 | 91254-KGC4-E01 | DUST SEAL 27X45X7 | 1 | $14.43 USD | View product → | |
| 13 | 91303-KED9-900 | O-RING 60.04*1.78 | 1 | $4.71 USD | View product → | |
| 14 | 92918-LGM6-920 | BOLT STUD II 8*12 | 5 | $16.77 USD | View product → | |
| 15 | 96150-63030-10 | BEARING BALL RADIAL 6303 | 2 | $51.36 USD | View product → | |
| 16 | 96150-LGM6-920 | BRG BALL RADIAL 60/22LLU | 1 | $100.38 USD | View product → |
