F20 — Winker

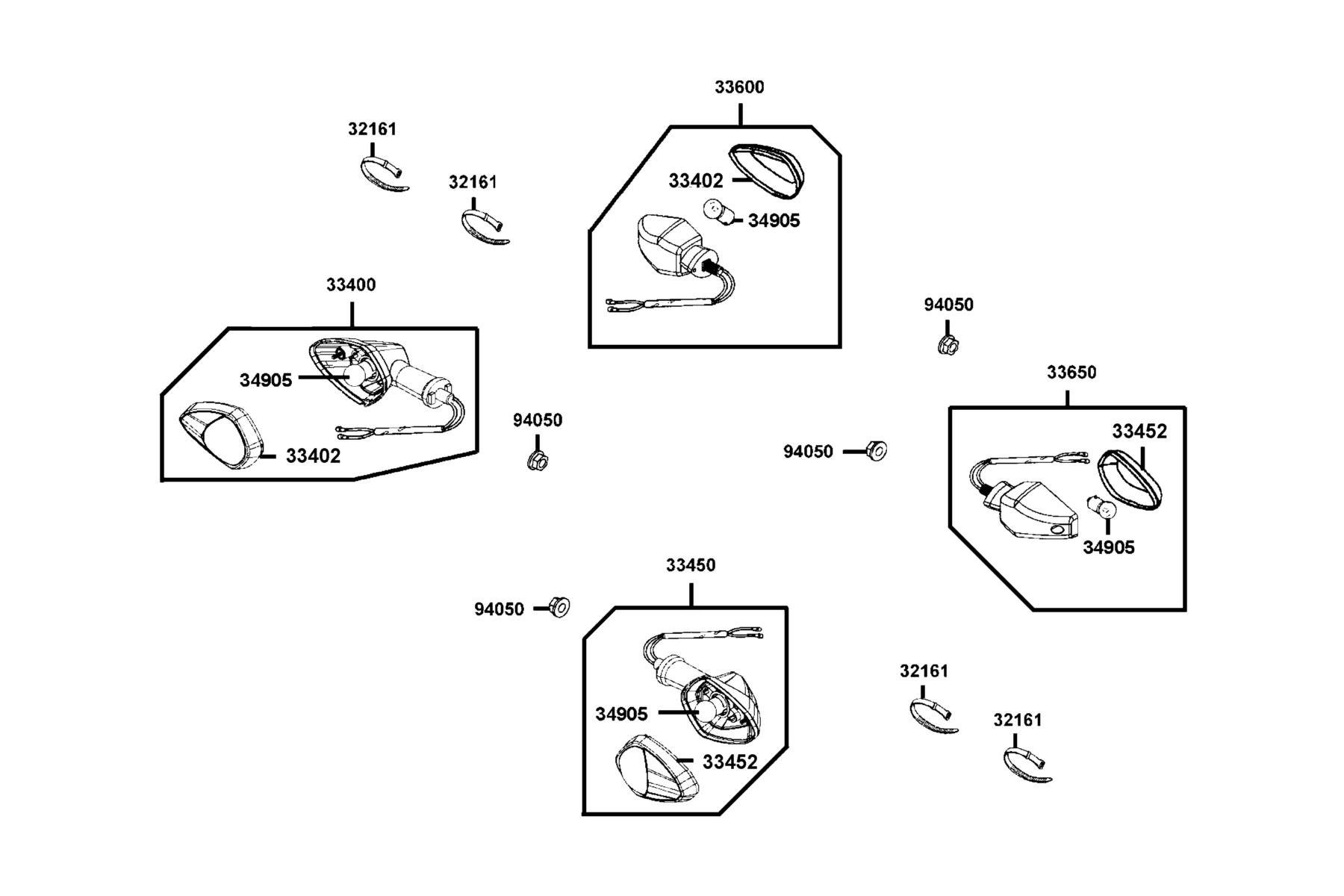

The Winker diagram contains 9 genuine OEM parts for the KYMCO SPADE 150 FI(2020). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 32161-LBA7-900 | BAND WIRE | 4 | $4.14 USD | View product → | |
| 2 | 33400-ALH3-M30 | WINKER ASSY R FR | 1 | $232.53 USD | View product → | |
| 3 | 33402-LKF5-M30 | LENS R RRWINKER | 2 | $36.78 USD | View product → | |
| 4 | 33450-ALH3-M30 | WINKER ASSY L FR | 1 | $232.53 USD | View product → | |
| 5 | 33452-LKF5-M30 | LENS L RR WINKER | 2 | $36.78 USD | View product → | |
| 6 | 33600-ALH3-M30 | WINKER ASSY R RR | 1 | $247.14 USD | View product → | |
| 7 | 33650-ALH3-M30 | WINKER ASSY L RR | 1 | $247.14 USD | View product → | |
| 8 | 34905-LBA7-E00 | BULB WINKER 12V10W | 4 | $22.71 USD | View product → | |
| 9 | 94050-10060 | NUT FLANGE 10MM | 4 | $5.67 USD | View product → |
