F01 — Head Light

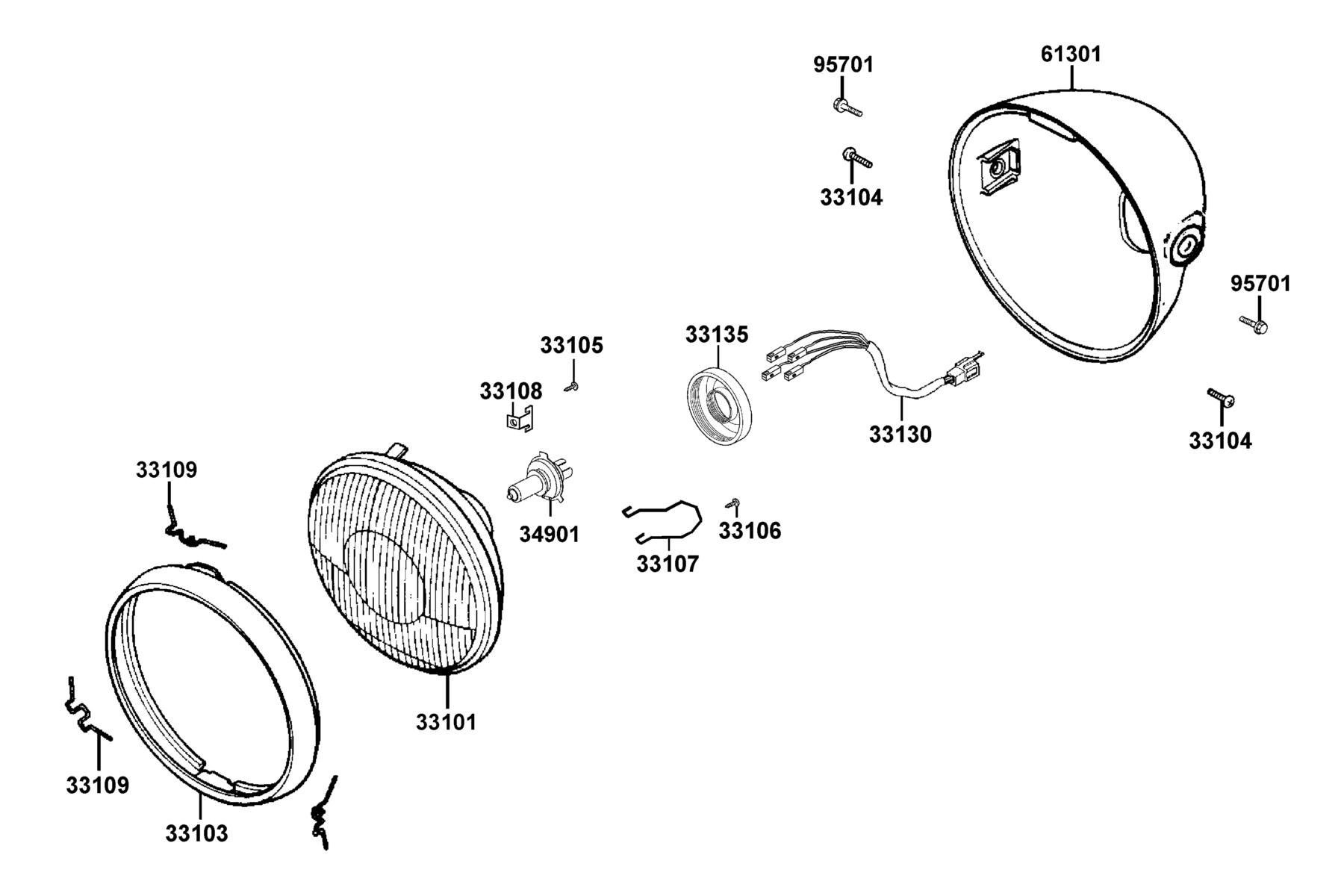

The Head Light diagram contains 13 genuine OEM parts for the KYMCO SPADE 150 FI(2020). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 33101-ALH3-M30 | LENS COMP | 1 | $160.77 USD | View product → | |
| 2 | 33103-ALH3-M30-M2S | RIM | 1 | $95.01 USD | View product → | |
| 3 | 33104-ALH3-M30 | SCREW | 2 | $4.26 USD | View product → | |
| 4 | 33105-ALH3-M30 | SCREW 3*8 | 1 | $4.26 USD | View product → | |
| 5 | 33106-ALH3-M30 | SCREW | 1 | $4.26 USD | View product → | |
| 6 | 33107-ALH3-M30 | SPRING SUPPORTER | 1 | $6.24 USD | View product → | |
| 7 | 33108-ALH3-M30 | PLATE | 1 | $5.22 USD | View product → | |
| 8 | 33109-ALH3-M30 | SPRING SUPPORTER | 1 | $6.24 USD | View product → | |
| 9 | 33130-ALH3-M30 | SOCKET COMP HEAD LIGHT | 1 | $47.52 USD | View product → | |
| 10 | 33135-ALH3-M30 | COVER RUBBER | 1 | $36.78 USD | View product → | |
| 11 | 34901-KED9-900 | BULB HEAD LIGHT (12V 60/55W12342) | 1 | $102.96 USD | View product → | |
| 12 | 61301-ALH3-M30-M2S | BASE HEAD LIGHT | 1 | $241.62 USD | View product → | |
| 13 | 95701-08020-06 | BOLT FLANGE 8*20 | 1 | $3.78 USD | View product → |
