F17 — Rear Fork●Step●Chain Case

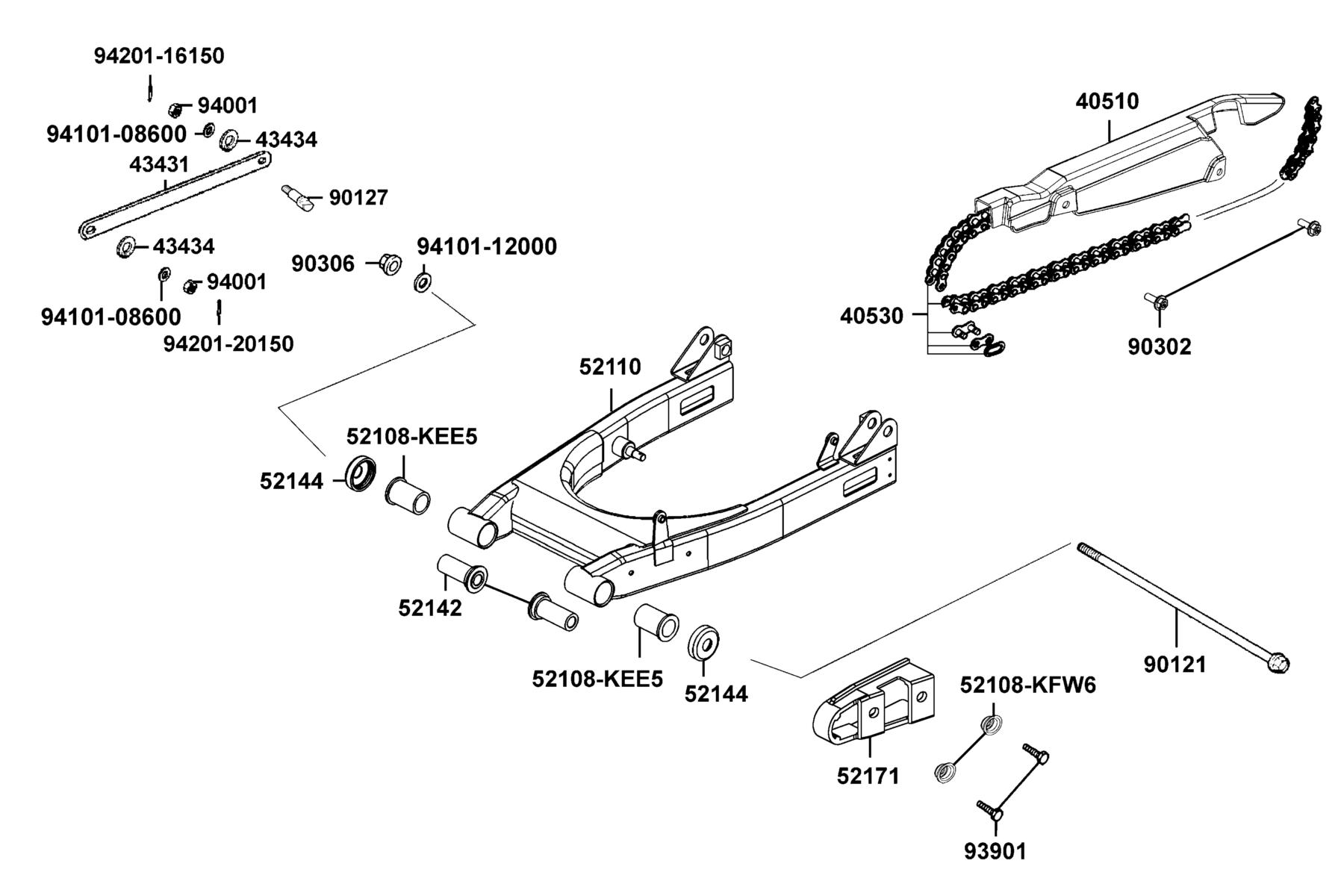

The Rear Fork●Step●Chain Case diagram contains 20 genuine OEM parts for the KYMCO SPADE 150 FI(2020). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 40510-ALH3-900 | COVER DRIVE CHAIN | 1 | $31.74 USD | View product → | |
| 2 | 40530-ALH3-900 | CHAIN DRIVE(428UO-104L) | 1 | $322.80 USD | View product → | |
| 3 | 43431-ALH3-900 | ARM REAR BRAKE STOPPER | 1 | $27.69 USD | View product → | |
| 4 | 43434-2F86-001 | RUBBER STOPPER ARM CUSHION | 2 | $4.92 USD | View product → | |
| 5 | 52108-KEE5-004 | BUSH RR FORK | 2 | $19.35 USD | View product → | |
| 6 | 52108-KFW6-901 | COLLAR CHAIN SLIDER | 2 | $6.00 USD | View product → | |
| 7 | 52110-ALH3-900-N1S | FORK COMP RR | 1 | $443.52 USD | View product → | |
| 8 | 52142-KKAK-900 | COLLAR COMP RR FORK | 2 | $42.06 USD | View product → | |
| 9 | 52144-LBA7-900 | CAP RR FORK DUST SEAL | 2 | $38.37 USD | View product → | |
| 10 | 52171-KYCY-500 | SLIDER CHAIN | 1 | $45.57 USD | View product → | |
| 11 | 90121-LBE8-900 | BOLT RR FORK PIVOT M12/280MM | 1 | $53.58 USD | View product → | |
| 12 | 90127-LBE8-900 | BOLT RR BRK PANEL STOPPER | 1 | $22.23 USD | View product → | |
| 13 | 90302-GFY6-901 | BOLT-WASH 5*12 | 2 | $3.99 USD | View product → | |
| 14 | 90306-GLW0-90A | NUT U FLANGE 12MM(C) | 1 | $17.55 USD | View product → | |
| 15 | 93901-26160 | SCREW TAPPING 6*12 | 3 | $11.79 USD | View product → | |
| 16 | 94001-08060-0S | NUT HEX 8MM | 2 | $22.23 USD | View product → | |
| 17 | 94101-08600 | WASH PLAIN 8MM | 2 | $2.25 USD | View product → | |
| 18 | 94101-12000 | WASHER PLAIN 12 MM | 3 | $2.31 USD | View product → | |
| 19 | 94201-16150 | PIN SPLIT 1.6*15 | 1 | $1.86 USD | View product → | |
| 20 | 94201-20150 | PIN SPLIT 2*15 | 1 | $2.61 USD | View product → |
