F22 — Wire Harness

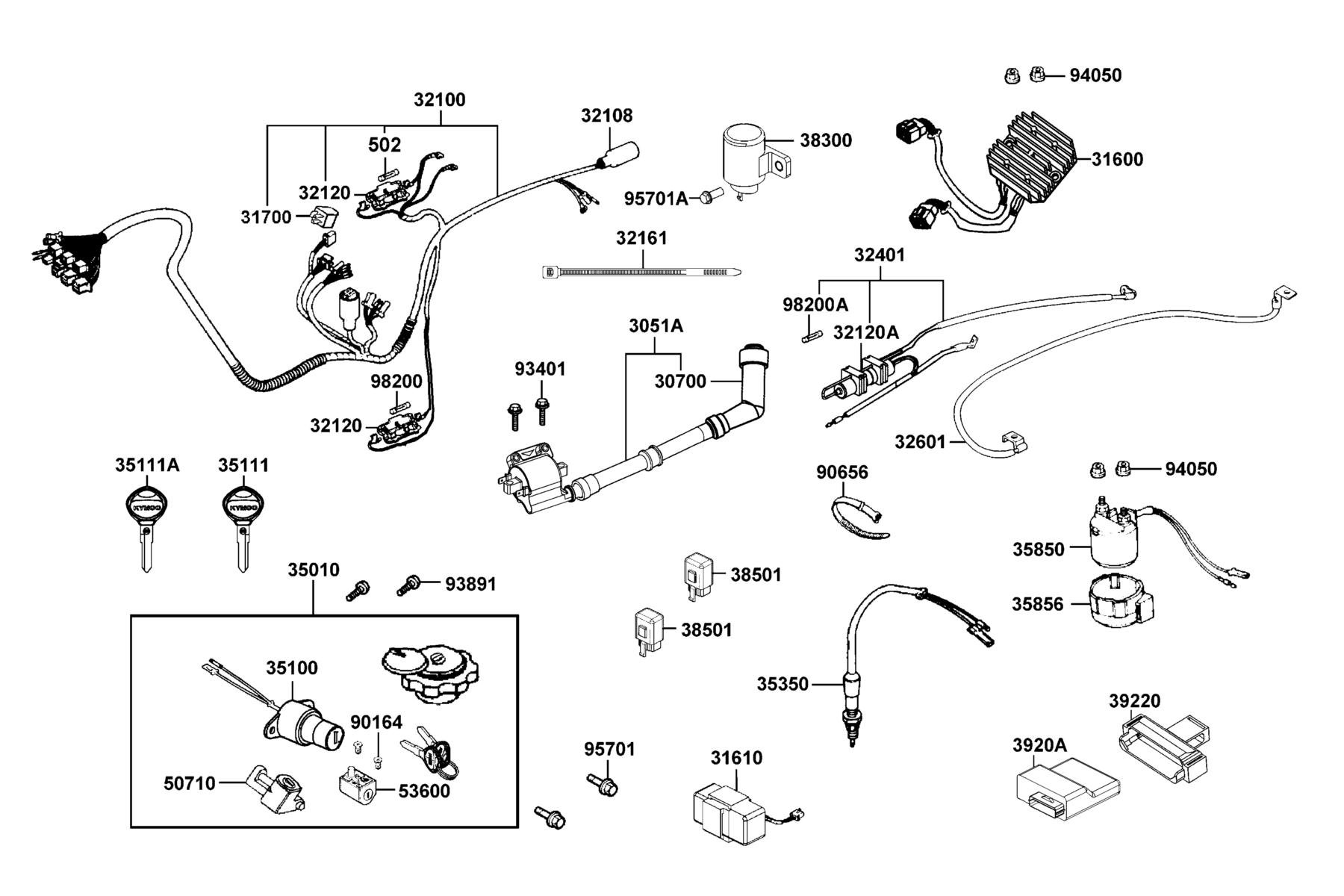

The Wire Harness diagram contains 35 genuine OEM parts for the KYMCO SPADE 150 FI(2020). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 3051A-LGM5-600 | COIL ASSY IGN | 1 | $239.82 USD | View product → | |
| 2 | 30700-LGM5-900 | CAP ASSY NOISE SUPPRESOR | 1 | $63.75 USD | View product → | |
| 3 | 31600-LKA9-910 | REG RECT COMP | 1 | $380.61 USD | View product → | |
| 4 | 31610-LBF2-900 | FILTER CAPACITOR | 1 | $95.61 USD | View product → | |
| 5 | 31700-KEC8-E00 | RECTIFIER COMP DIODE | 1 | $42.72 USD | View product → | |
| 6 | 32100-ALH3-M30 | HARNESS WIRE | 1 | $597.56 USD | View product → | |
| 7 | 32108-GAR1-711 | COVER HARNESS WIRE | 1 | $21.06 USD | View product → | |
| 8 | 32120-3C83-831 | CASE 10A FUSE | 1 | $4.92 USD | View product → | |
| 9 | 32120-KFAF-900 | CASE 15A FUSE | 1 | $5.22 USD | View product → | |
| 10 | 32161-LBA7-900 | BAND WIRE | 4 | $4.14 USD | View product → | |
| 11 | 32401-LGM5-900 | CABLE RELAY & BATTERY | 1 | $96.96 USD | View product → | |
| 12 | 32601-LGM5-900 | CORD BAT EARTH | 1 | $74.28 USD | View product → | |
| 13 | 35010-ALH3-M30 | KEY SET | 1 | $290.73 USD | View product → | |
| 14 | 35100-LGM5-305 | SW ASSY COMB | 1 | $172.98 USD | View product → | |
| 15 | 35111-KUDU-305-M1 | KEY COMP (R TANGENT PLANE SD) | 2 | $26.25 USD | View product → | |
| 16 | 35111-KUDU-306-M1 | KEY COMP (L TANGENT PLANE SD) | 2 | $26.25 USD | View product → | |
| 17 | 35350-KBE2-941 | REAR STOP SW | 1 | $31.74 USD | View product → | |
| 18 | 35850-4A31-08B | SW ASSY START MAG | 1 | $46.92 USD | View product → | |
| 19 | 35856-GAB1-940 | SHOCK RUBBER MAG | 1 | $4.92 USD | View product → | |
| 20 | 38300-ZZA6-E00 | RELAY ASSY WINKER | 1 | $124.50 USD | View product → | |
| 21 | 38501-LGL3-90E | RELAY COMP LIGHT | 2 | $87.48 USD | View product → | |
| 22 | 3920A-ALH3-900 | ASSY ECU | 1 | $708.98 USD | View product → | |
| 23 | 39220-LGM5-900 | CUSHION CASE.ECU | 1 | $30.63 USD | View product → | |
| 24 | 502-00247 | FUSE 1.25A | 1 | $1.17 USD | View product → | |
| 25 | 50710-0F86-315-M1 | HOLDER HELMET ASSY | 1 | $96.96 USD | View product → | |
| 26 | 53600-LBE8-305 | LOCK STEERING HNDL | 1 | $64.38 USD | View product → | |
| 27 | 90164-0H28-900 | SCREW FLAT U LOCK 6*12 | 2 | $4.92 USD | View product → | |
| 28 | 90656-KCBC-900 | BAND OIL HANDLE 8X146 | 1 | $3.93 USD | View product → | |
| 29 | 93401-04025-06 | BOLT WASHER 4*25 | 1 | $13.95 USD | View product → | |
| 30 | 93891-06012-06 | SCREW WASHER 6X12 | 2 | $4.26 USD | View product → | |
| 31 | 94050-06060 | NUT FLANGE 6MM | 4 | $4.92 USD | View product → | |
| 32 | 95701-06010-06 | BOLT FLANGE 6*10 | 2 | $4.92 USD | View product → | |
| 33 | 95701-06016-06 | BOLT FLANGE 6X16 | 1 | $1.65 USD | View product → | |
| 34 | 98200-11500 | FUSE 15A | 1 | $4.92 USD | View product → | |
| 35 | 98200-12500 | FUSE A25 | 1 | $2.04 USD | View product → |
