E05 — Cylinder

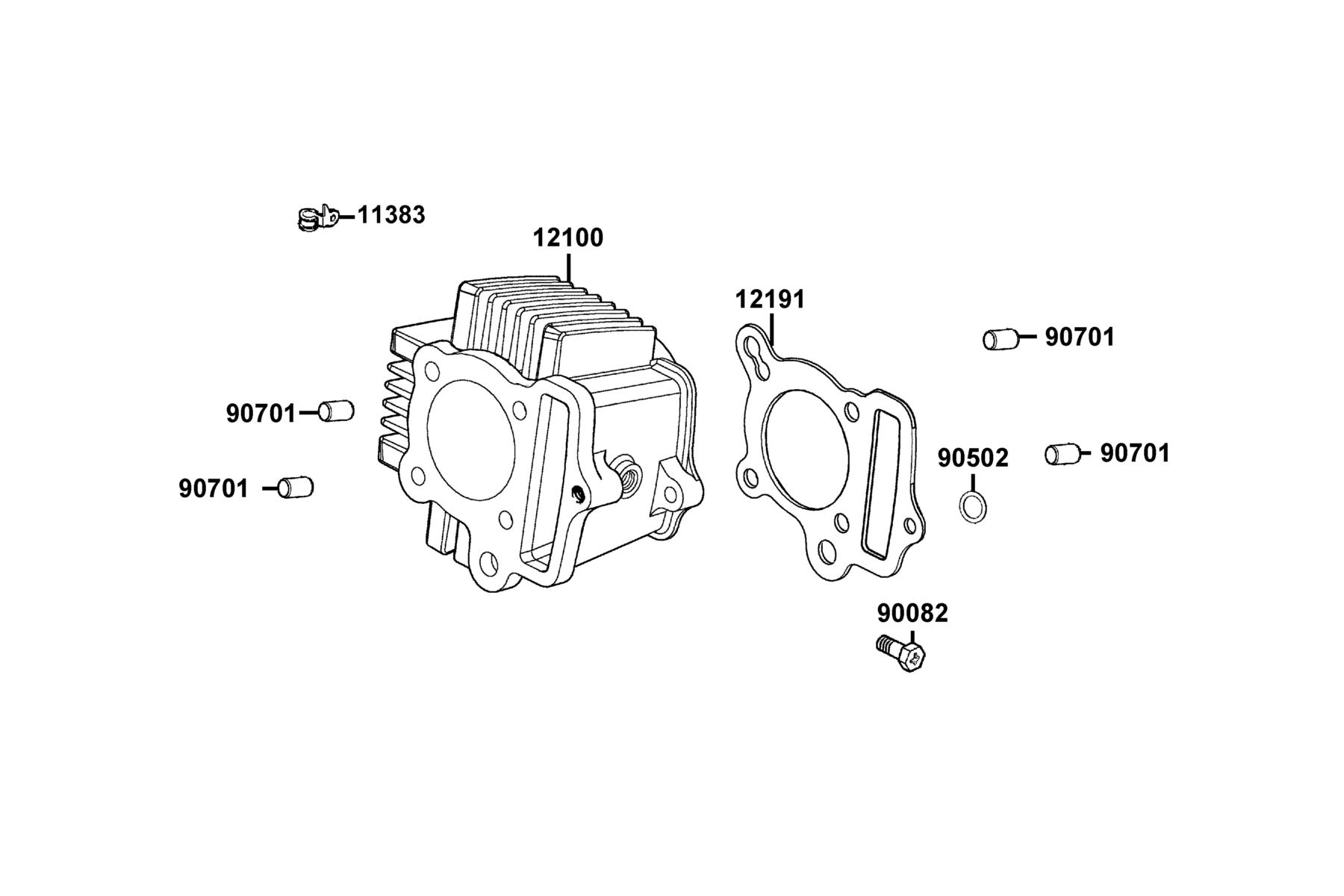

The Cylinder diagram contains 6 genuine OEM parts for the KYMCO K-PIPE 125(2019~). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 11383-LKL5-E30 | CLAMPER BREATHER | 1 | $2.97 USD | View product → | |
| 2 | 12100-LCA7-C10 | CYLINDER COMP | 1 | $176.94 USD | View product → | |
| 3 | 12191-LCA7-E90 | GASKET CYLINDER | 1 | $17.04 USD | View product → | |
| 4 | 90082-LCA7-C11 | BOLT M 6*28 (C) | 1 | $4.65 USD | View product → | |
| 5 | 90502-LBA8-C10 | RECTANGULAR RING | 1 | $9.51 USD | View product → | |
| 6 | 90701-GFF6-C00 | PIN DOWEL SPECIAL 8*14 | 4 | $0.99 USD | View product → |
