F15 — Air Cleaner

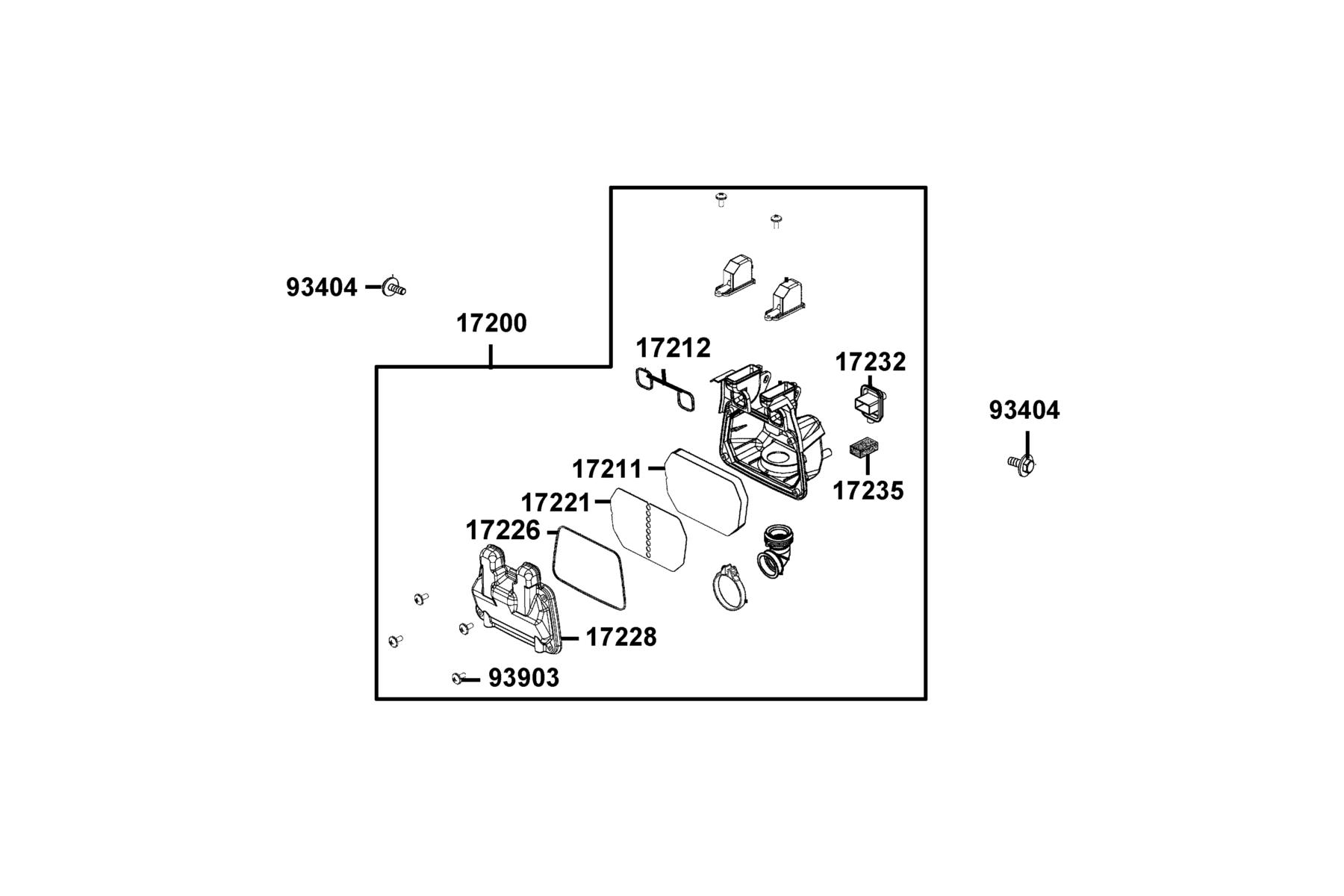

The Air Cleaner diagram contains 10 genuine OEM parts for the KYMCO K-PIPE 125(2019~). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 17200-LKL5-C00 | "AIR/C, ASSY" | 1 | $101.13 USD | View product → | |
| 2 | 17211-LEB5-C10 | ELEMENT AIR/C | 1 | $16.41 USD | View product → | |
| 3 | 17212-LEB5-C10 | SEAL AIR/C COVER | 1 | $6.54 USD | View product → | |
| 4 | 17221-LEB5-C10 | TRAP COMP | 1 | $13.77 USD | View product → | |
| 5 | 17226-LEB5-C10 | SEAL AIR/C CASE | 1 | $26.28 USD | View product → | |
| 6 | 17228-LKL5-E30 | COVER AIR/C | 1 | $37.56 USD | View product → | |
| 7 | 17232-KGC4-E00 | COVER OIL CATCH | 1 | $1.32 USD | View product → | |
| 8 | 17235-GFY6-C00 | FILTER OIL CATCH | 1 | $0.99 USD | View product → | |
| 9 | 93404-06012-07G | 0 | 2 | $1.32 USD | View product → | |
| 10 | 93903-25480 | SCREW TAPPING 5*20 **93903-25460 C.P.N. | 1 | $4.92 USD | View product → |
