F11 — Rear Wheel

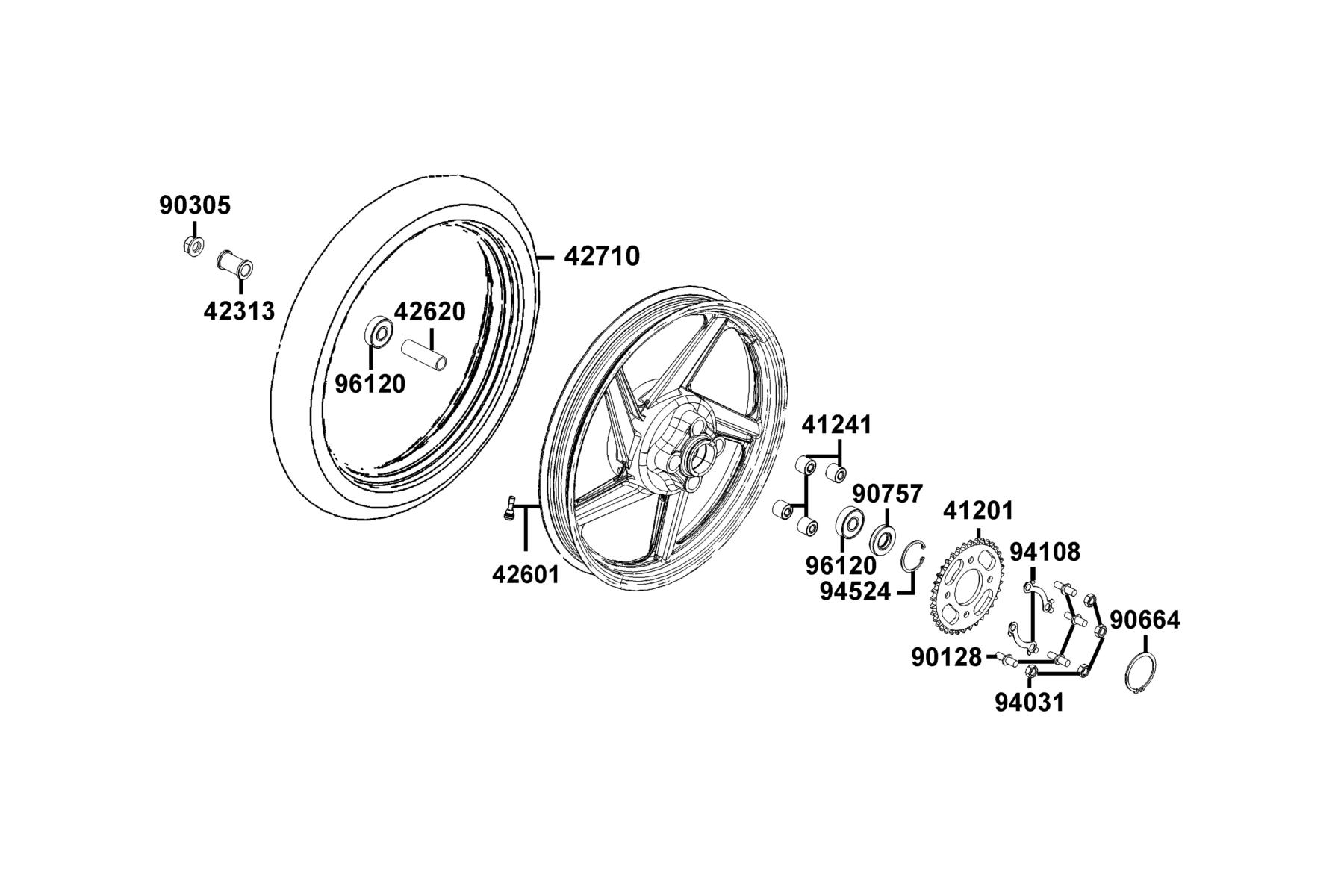

The Rear Wheel diagram contains 12 genuine OEM parts for the KYMCO K-PIPE 125(2019~). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 41201-LKL5-E30 | COLLAR RR HUB SIDE | 1 | $67.26 USD | View product → | |
| 2 | 41241-3G07-C00 | BUSH RR WHEEL DAMPER | 1 | $8.49 USD | View product → | |
| 3 | 42313-LKL5-E30 | WHEEL ASSY RR | 1 | $35.10 USD | View product → | |
| 4 | 42601-LKL5-E30-NEA | WHEEL COMP RR CAST | 1 | $595.62 USD | View product → | |
| 5 | 42620-2E35-C00 | COLLAR REAR AXLE DIST | 1 | $5.88 USD | View product → | |
| 6 | 42710-LKL5-E80 | TIRE ASSY RR | 1 | $363.06 USD | View product → | |
| 7 | 90128-KEC8-C00 | BOLT HLANGE | 4 | $6.24 USD | View product → | |
| 8 | 90305-LKL5-E31 | NUT U FLANGE 16MM(K) | 1 | $8.19 USD | View product → | |
| 9 | 90664-2F16-C00 | CIR CLIP | 1 | $15.84 USD | View product → | |
| 10 | 90757-4K39-C00 | DUST SEAL REAR WHEEL | 1 | $4.59 USD | View product → | |
| 11 | 94031-10000-G | NUT HEX 10MM | 4 | — | Part details → | |
| 12 | 96120-63030-10 | BEARING BALL RADIAL 6303Z/2A | 2 | $32.58 USD | View product → |
