F04 — Brake Master Cylinder

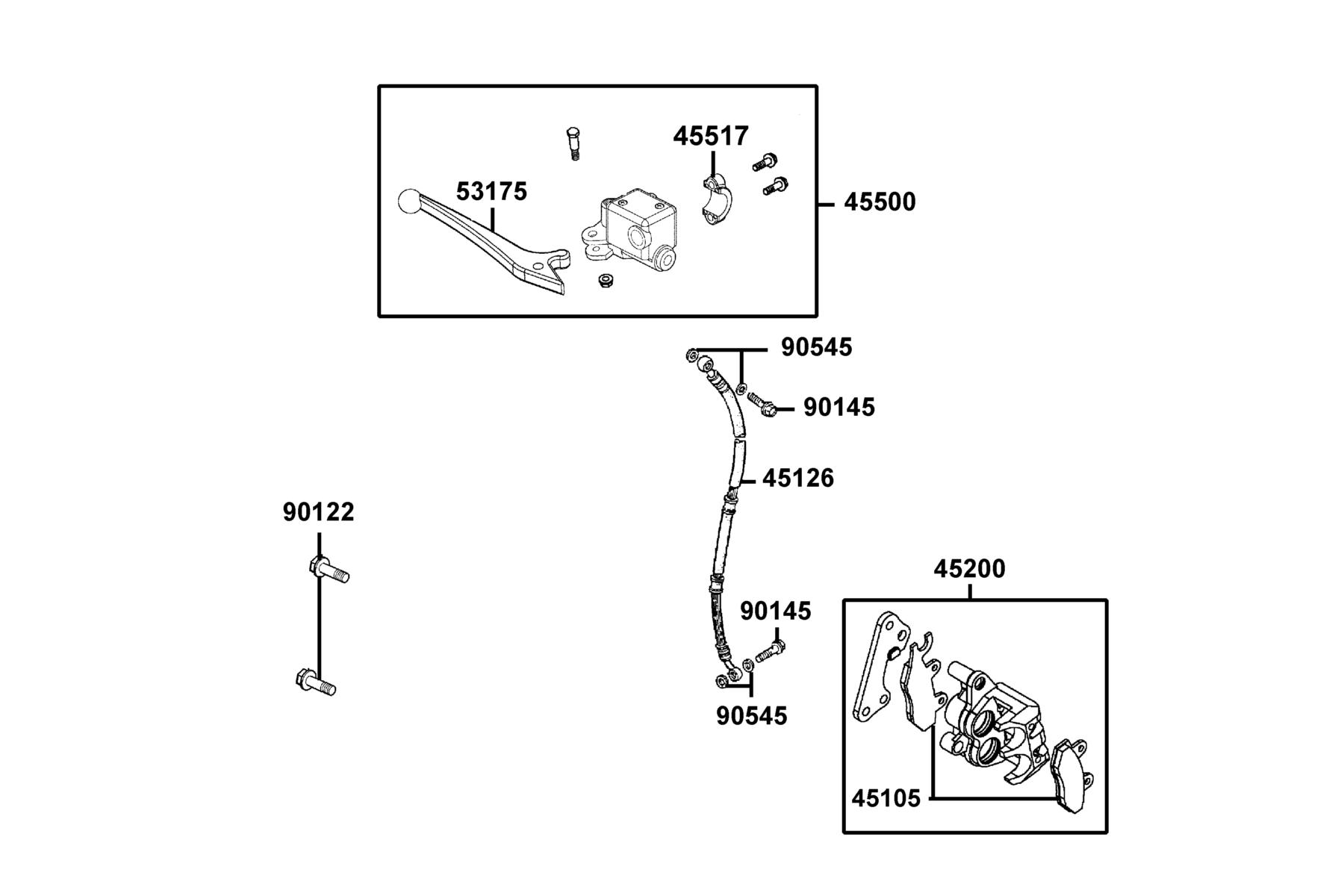

The Brake Master Cylinder diagram contains 9 genuine OEM parts for the KYMCO K-PIPE 125(2019~). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 45105-LKH3-305 | SW ASSY RR STOP | 1 | $120.45 USD | View product → | |
| 2 | 45126-ACA5-BJ0 | HOSE ASSY FR BRK | 1 | $130.98 USD | View product → | |
| 3 | 45200-LKL5-E30 | "CALIPER ASSY,FR" | 1 | $207.54 USD | View product → | |
| 4 | 45500-LKH3-C00 | "M/C ASSY, FR" | 1 | $169.08 USD | View product → | |
| 5 | 45517-KFAF-900 | HOLDER M/C | 1 | $20.91 USD | View product → | |
| 6 | 53175-LKH3-C00 | LEVEL R STRG HANDEL | 1 | $51.15 USD | View product → | |
| 7 | 90122-LKL5-E31 | BOLT FLANGE 8*25 | 2 | $8.97 USD | View product → | |
| 8 | 90145-9A61-C00 | OIL BOLT 10*22 | 2 | $7.89 USD | View product → | |
| 9 | 90545-3L00-C00 | WASHER OIL BOLT | 4 | $2.31 USD | View product → |
