E17 — Spindle Gear Shift

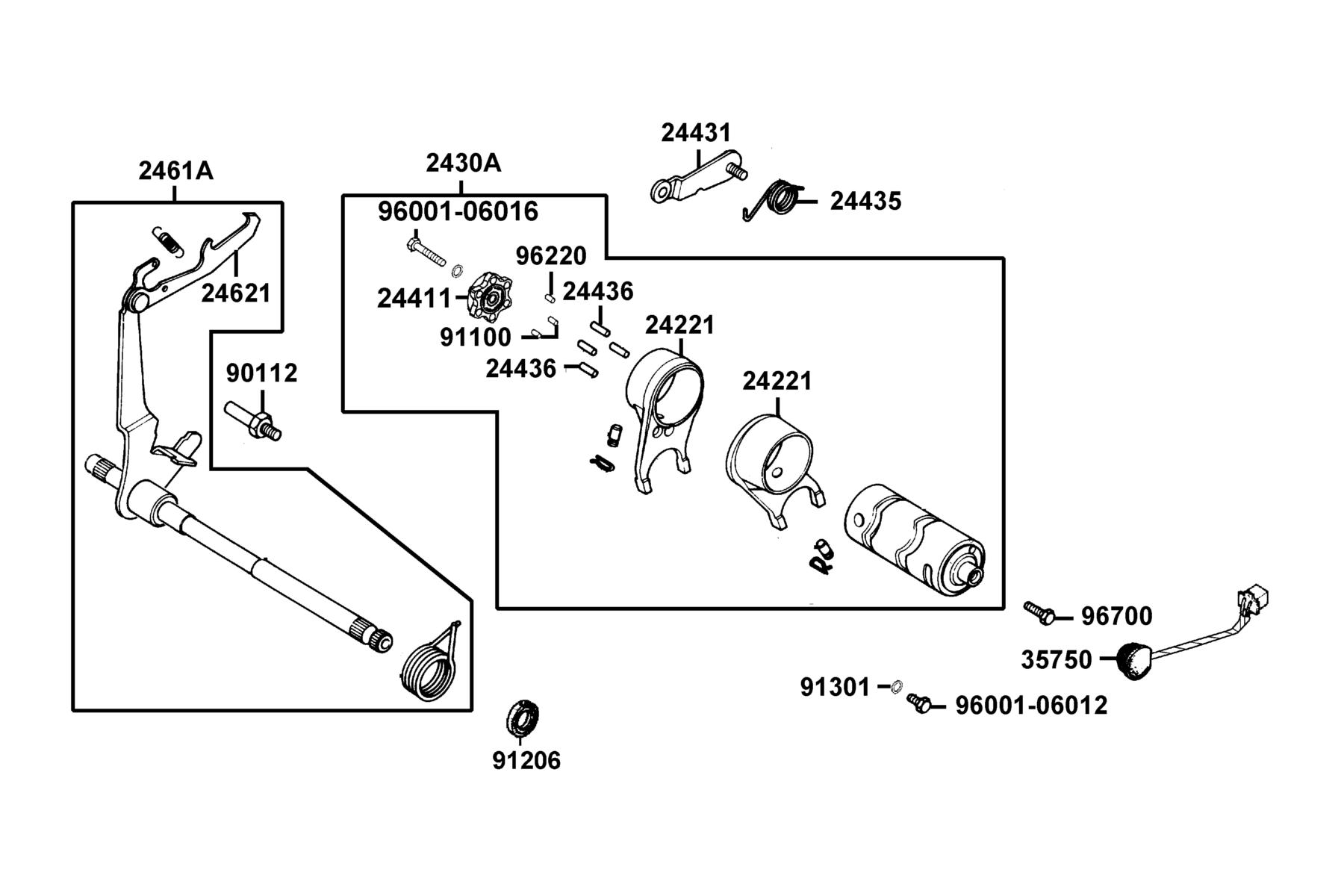

The Spindle Gear Shift diagram contains 17 genuine OEM parts for the KYMCO K-PIPE 125(2019~). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 24221-LBA8-C10 | FORK GEAR SHIFT | 1 | $23.70 USD | View product → | |
| 2 | 2430A-LCA7-C10 | GEAR SHIFT CAM ASSEMBLY | 1 | $79.92 USD | View product → | |
| 3 | 24411-3D24-C00 | CAM GEAR SHIFT | 1 | $29.61 USD | View product → | |
| 4 | 24431-LBA8-C10 | CARBURETOR ASSY | 1 | $14.73 USD | View product → | |
| 5 | 24435-LBA8-C10 | SPG SHIFT SPINDLE STOPPER | 1 | $2.97 USD | View product → | |
| 6 | 24436-LBA8-C10 | PIN | 3 | — | Part details → | |
| 7 | 2461A-LBA8-C10 | GEAR SHIFT SPINDLE ASSEMBLY | 1 | $70.20 USD | View product → | |
| 8 | 24621-LBA8-C10 | PLATE GEAR SHIFT | 1 | $34.05 USD | View product → | |
| 9 | 35750-LKL5-E30 | IWRE LEADS SET | 1 | $38.85 USD | View product → | |
| 10 | 90112-LBA8-C10 | LOCK SCREW 8*34 | 1 | $18.03 USD | View product → | |
| 11 | 91100-LBA8-C10 | ROLLER 3*8.5 | 1 | $0.66 USD | View product → | |
| 12 | 91206-LBA8-C10 | OIL SEAL 11.6X24X10 | 1 | $18.69 USD | View product → | |
| 13 | 91301-LBA8-C10 | CARBURETOR ASSY | 1 | $2.61 USD | View product → | |
| 14 | 96001-06012-08G | BOLT FLANGE SH 6X12 (C) | 1 | $0.99 USD | View product → | |
| 15 | 96001-06016-08 | BOLT FLANGE SH 6*16 | 1 | $2.61 USD | View product → | |
| 16 | 96220-40100 | ROLLER 4*10 | 1 | $9.78 USD | View product → | |
| 17 | 96700-06016-08G | BOLT FLANGE SH 6*16(C) | 1 | $4.65 USD | View product → |
