F09 — Front Wheel

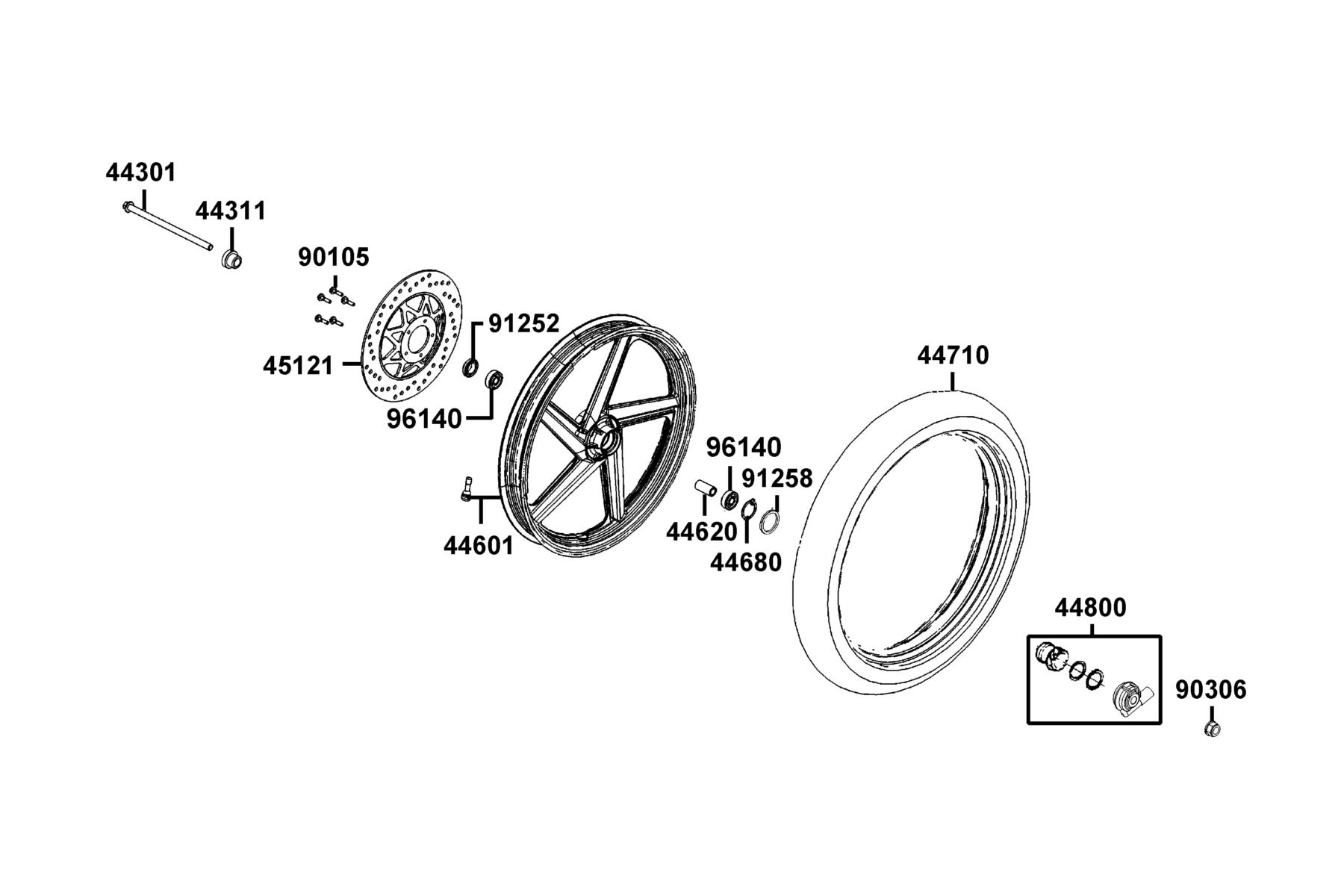

The Front Wheel diagram contains 13 genuine OEM parts for the KYMCO K-PIPE 125(2019~). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 44301-LKL5-E31 | AXLE FR WHEEL | 1 | $82.38 USD | View product → | |
| 2 | 44311-LKL5-E30 | COLLAR FR WHEEL SIDE | 1 | $16.41 USD | View product → | |
| 3 | 44601-LKL5-E30-NEA | WHEEL COMP FR CAST | 1 | $463.56 USD | View product → | |
| 4 | 44620-4L00-C00 | COLLAR FR. AXLE DIST | 1 | $8.49 USD | View product → | |
| 5 | 44680-4L10-C00 | RETAINER GEAR BOX | 1 | $24.42 USD | View product → | |
| 6 | 44710-LKL5-E80 | TIRE FR WHEEL | 1 | $529.02 USD | View product → | |
| 7 | 44800-LKL5-E30 | GEAR BOX ASSY | 1 | $59.40 USD | View product → | |
| 8 | 45121-LEC8-E00-M2S | DISK FRONT BRAKE | 1 | $168.06 USD | View product → | |
| 9 | 90105-KAR1-C00 | BOLT SPL 6*25 | 5 | $12.30 USD | View product → | |
| 10 | 90306-LKL5-E31 | NUT U FLANGE 12MM(K) | 1 | $18.96 USD | View product → | |
| 11 | 91252-0L30-C00 | OIL SEAL WHEEL 23*37*7 | 1 | $6.54 USD | View product → | |
| 12 | 91258-4L10-007 | DUST SEAL 40*50*5 | 1 | $9.78 USD | View product → | |
| 13 | 96140-63010-10 | BEARING BALL RADIAL 6301 U | 2 | $50.07 USD | View product → |
