E15 — Crankshaft ● Piston

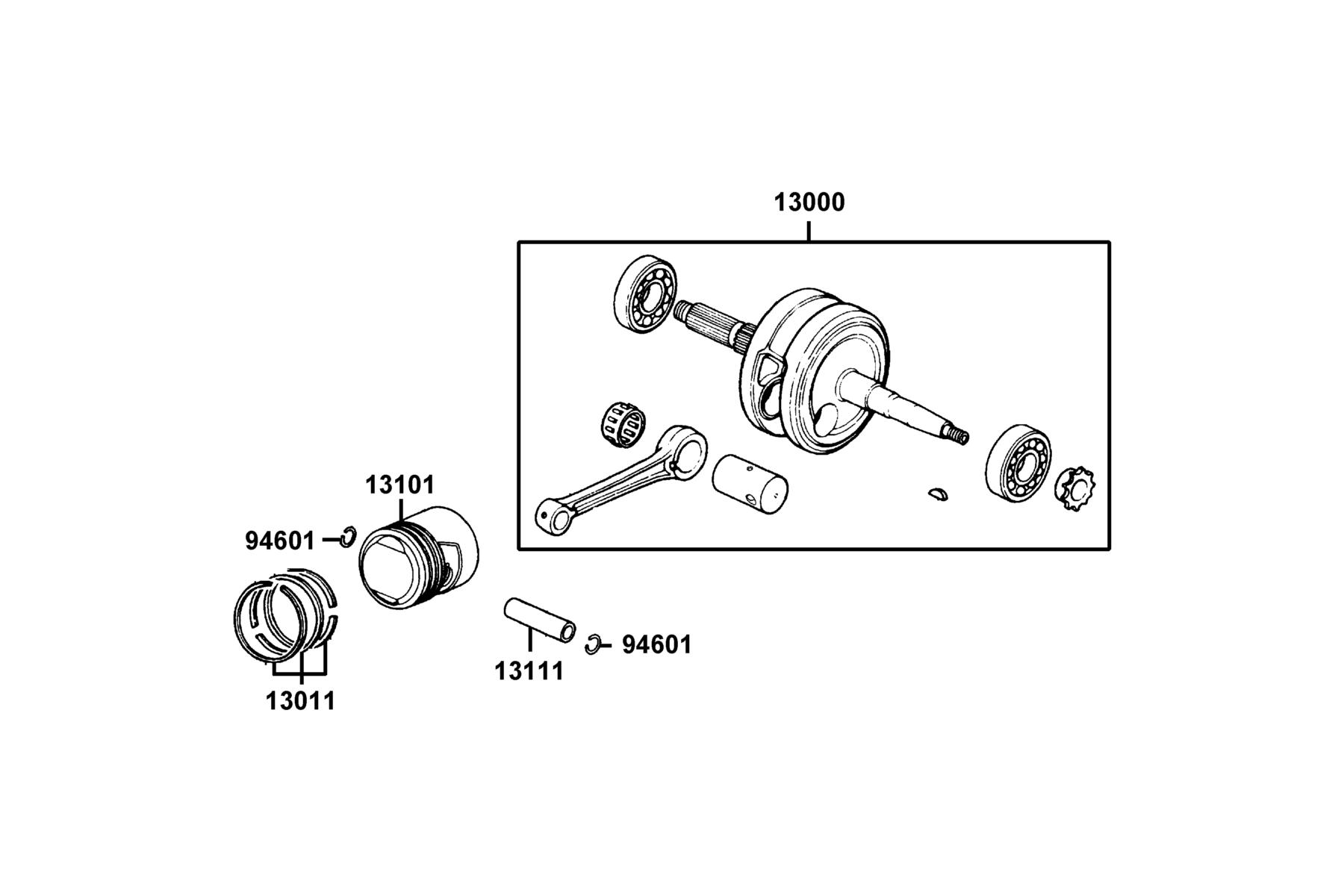

The Crankshaft ● Piston diagram contains 5 genuine OEM parts for the KYMCO K-PIPE 125(2019~). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 13000-LCA7-C10 | CRANK SHAFT COMP | 1 | $295.65 USD | View product → | |
| 2 | 13011-LCA7-C10 | PISTON RING SET | 1 | $97.14 USD | View product → | |
| 3 | 13101-LCA7-C10 | PISTON | 1 | $61.56 USD | View product → | |
| 4 | 13111-LCA7-C10 | PIN PISTON | 1 | $12.78 USD | View product → | |
| 5 | 94601-14000 | CLIP PISTON PIN 14MM | 2 | $5.67 USD | View product → |
