F01 — Head Light

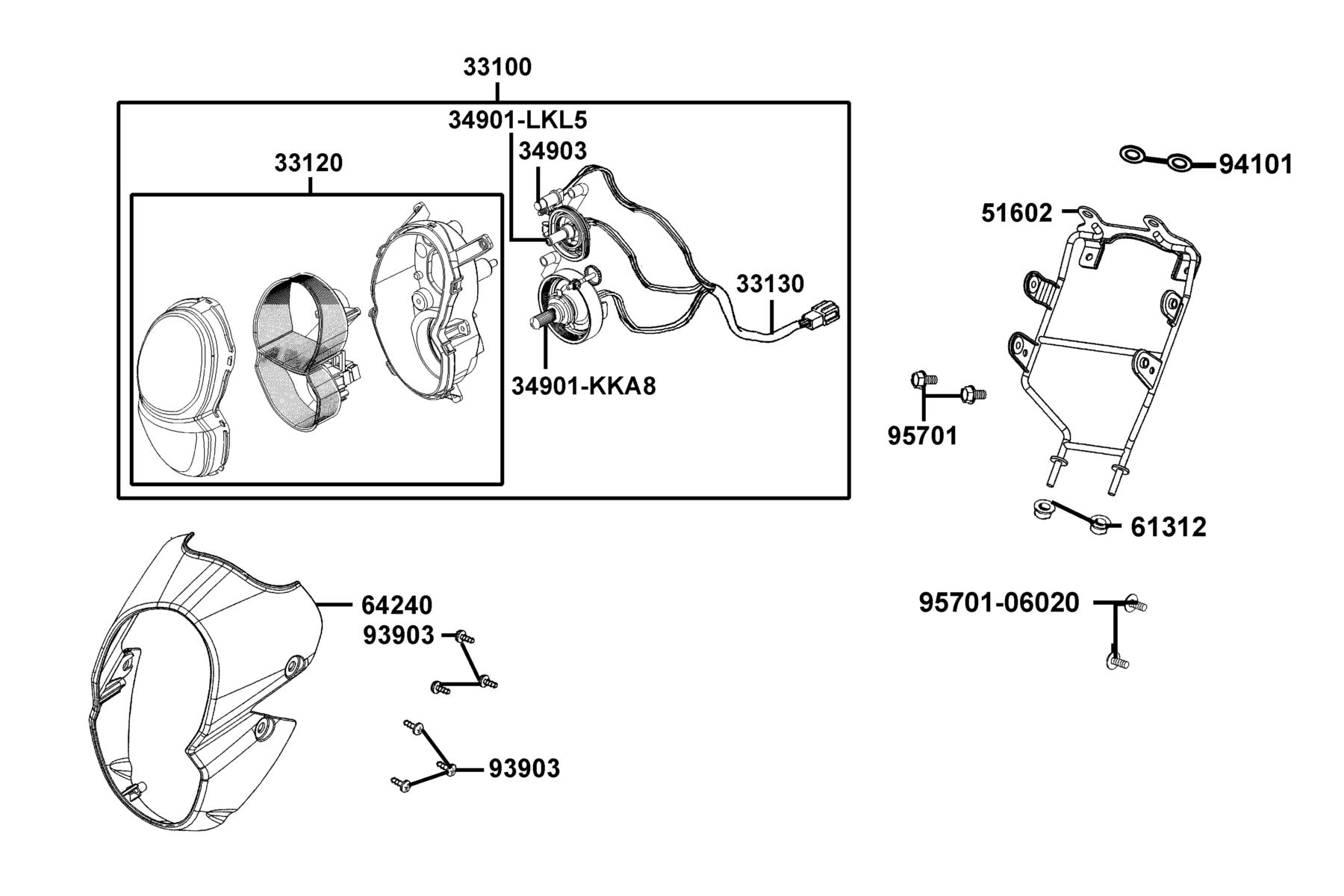

The Head Light diagram contains 14 genuine OEM parts for the KYMCO K-PIPE 125(2019~). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 044.698 | BULB POSITION LIGHT 12V5W | 1 | $4.11 USD | View product → | |
| 2 | 33100-ACA5-M30 | LIGHT ASSY HEAD | 1 | $392.97 USD | View product → | |
| 3 | 33120-LKL5-E30 | UNIT HEAD LIGHT | 1 | $174.57 USD | View product → | |
| 4 | 33130-LKL5-E30 | SOCKET ASSY HEAD LIGHT | 1 | $169.71 USD | View product → | |
| 5 | 34901-KKA8-C00 | BULB HEAD LIGHT | 1 | $53.97 USD | View product → | |
| 6 | 34901-LKL5-E30 | BULB HEAD LIGHT | 1 | $64.80 USD | View product → | |
| 7 | 44.698 | BULB POSITION LIGHT 12V5W | 1 | $4.11 USD | View product → | |
| 8 | 51602-LKL5-E30 | STAY HEAD LIGHT | 1 | $65.70 USD | View product → | |
| 9 | 61312-KHC6-C30 | BOOT R/L BRKT | 2 | $12.51 USD | View product → | |
| 10 | 64240-LKL5-E30-NEP | "COVER, FR. ADORN" | 1 | $86.91 USD | View product → | |
| 11 | 93903-35280-G | SCREW TAPPING 5*12 (K) | 10 | $0.99 USD | View product → | |
| 12 | 94101-LKL5-E32 | WASHER PLAIN 6MM | 4 | $4.65 USD | View product → | |
| 13 | 95701-06016-07G | BOLT FLANGE SH 6*16 (KG) | 2 | $0.99 USD | View product → | |
| 14 | 95701-06020-07G | BOLT FLANGE 6*20 (K) | 4 | $0.99 USD | View product → |
