E11 — Generator

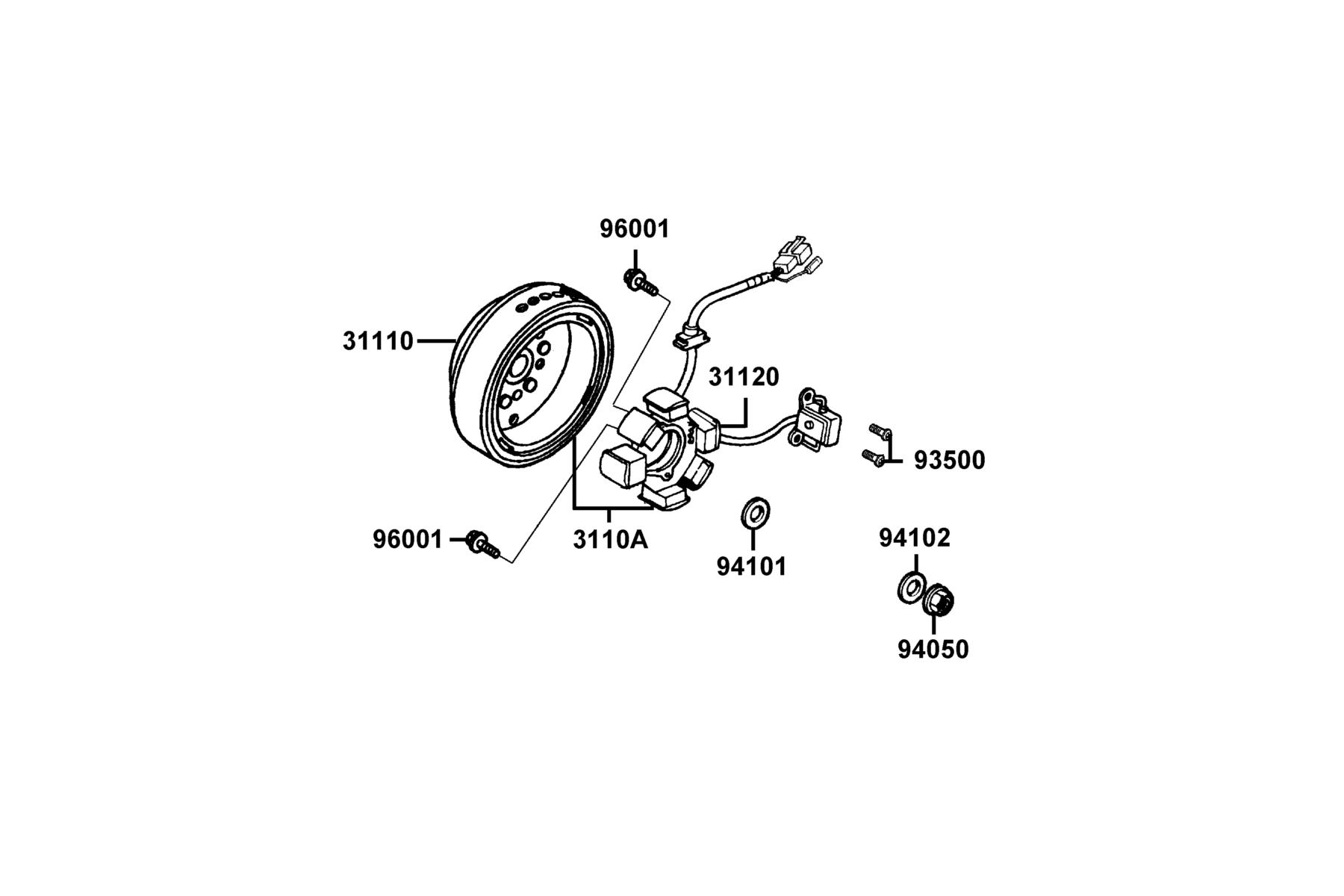

The Generator diagram contains 8 genuine OEM parts for the KYMCO K-PIPE 125(2019~). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 3110A-LKL5-E30 | ACG. & ONE WAY COMP. ASSY. | 1 | $257.25 USD | View product → | |
| 2 | 31110-LFD6-C10 | FLYWHEEL COMP | 1 | $110.82 USD | View product → | |
| 3 | 31120-LKL5-E30 | STATOR COMP | 1 | $95.22 USD | View product → | |
| 4 | 93500-05012-0HG | SCREW PAN 5*12 | 2 | $0.99 USD | View product → | |
| 5 | 94050-10080-G | NUT FLANGE 10MM | 1 | $1.95 USD | View product → | |
| 6 | 94101-06800-G | WASHER PLAN 6MM | 1 | $0.27 USD | View product → | |
| 7 | 94102-10800-G | WASHER PLAIN 10MM | 1 | $1.95 USD | View product → | |
| 8 | 96001-06020-08G | BOLT FLANGED SMALL | 2 | $2.04 USD | View product → |
