F07 — Front Fender

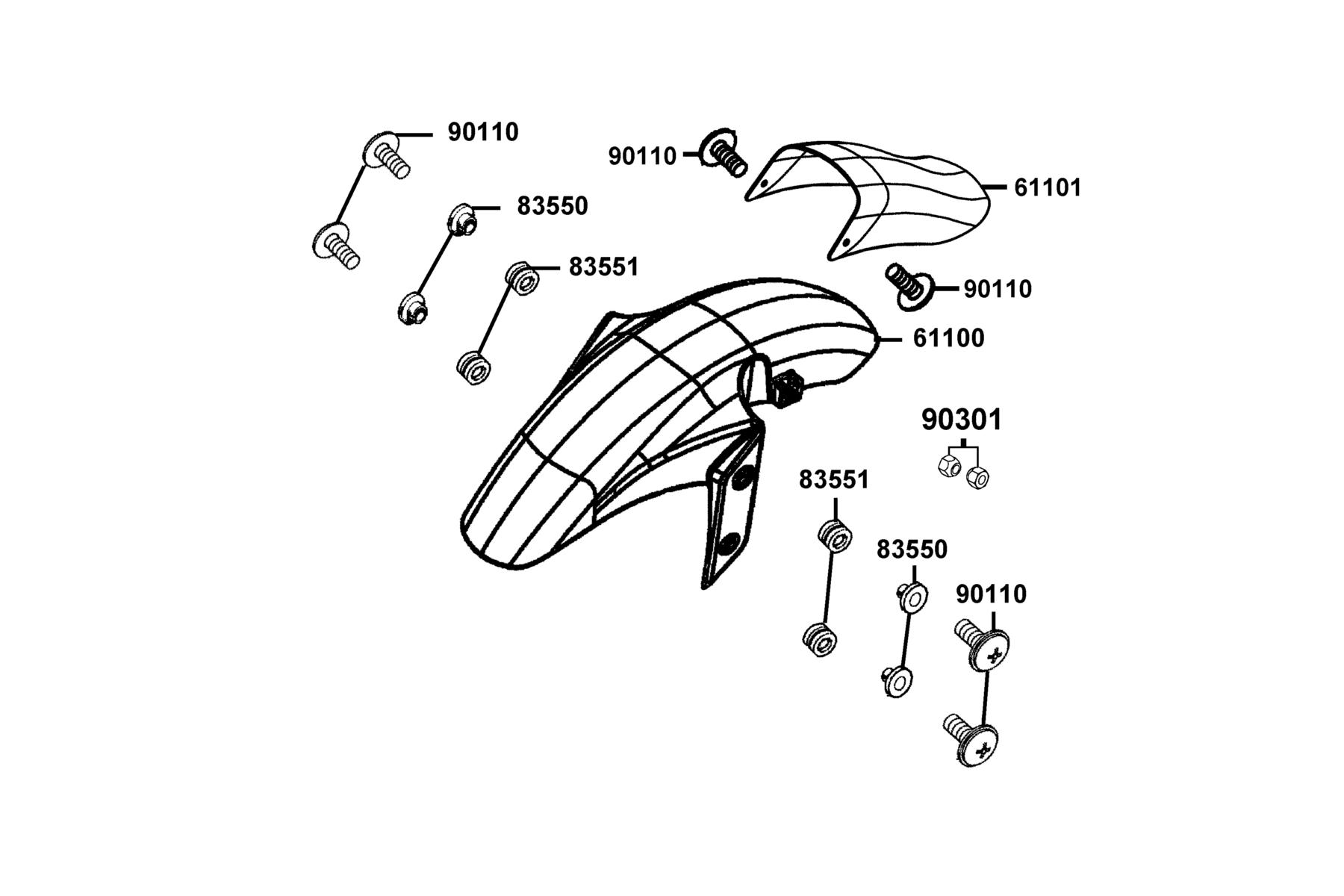

The Front Fender diagram contains 6 genuine OEM parts for the KYMCO K-PIPE 125(2019~). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 61100-LKL5-E90-NEP | FENDER FR. | 1 | $178.65 USD | View product → | |
| 2 | 61101-LKL5-E90-N1R | FENDER B FR. | 1 | $37.77 USD | View product → | |
| 3 | 83550-KEC8-C00 | COLLAR | 4 | $1.86 USD | View product → | |
| 4 | 83551-KEC8-C10 | RUBBER | 4 | $3.96 USD | View product → | |
| 5 | 90110-KEB7-C01 | SCREW SPECIAL 6*14 | 6 | $4.92 USD | View product → | |
| 6 | 90301-4C73-C01 | NUT U 6MM(C) | 2 | $19.89 USD | View product → |
