F27 — Emblem ● Stripe

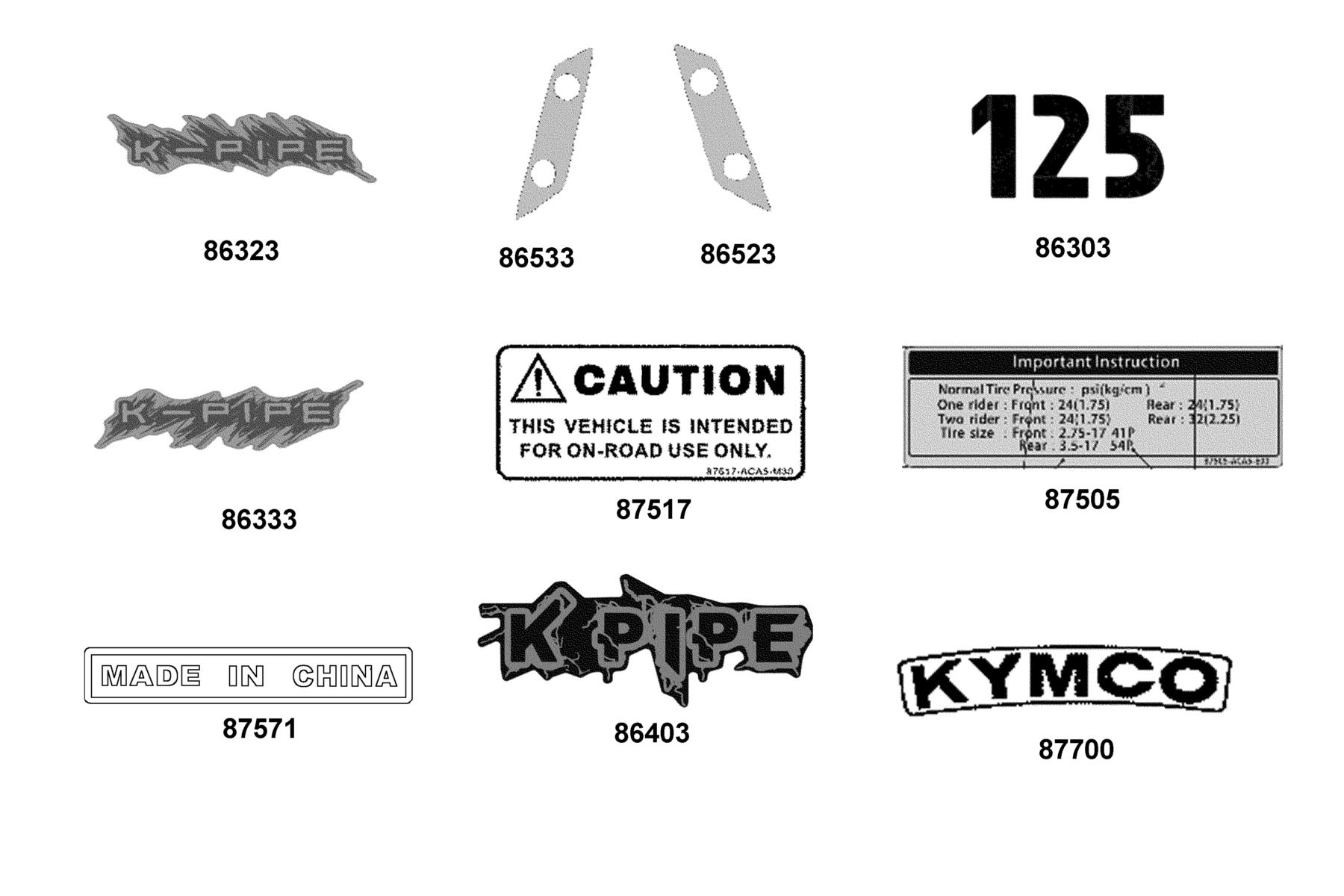

The Emblem ● Stripe diagram contains 10 genuine OEM parts for the KYMCO K-PIPE 125(2019~). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 86303-ACA5-M30-T01 | STRIPE SIDE COVER | 1 | $14.07 USD | View product → | |
| 2 | 86323-ACA5-M31-T01 | STRIPE R SIDE COVER | 1 | $37.80 USD | View product → | |
| 3 | 86333-ACA5-M31-T01 | STRIPE R SIDE COVER | 1 | $37.80 USD | View product → | |
| 4 | 86403-ACA5-M30-T01 | STRIPE BODY COVER | 1 | $37.80 USD | View product → | |
| 5 | 86523-LKL5-E30-T05 | STRIPE R FR FENDER | 1 | $26.49 USD | View product → | |
| 6 | 86533-LKL5-E30-T05 | STRIPE L FR FENDER | 1 | $26.49 USD | View product → | |
| 7 | 87505-ACA5-E00-T01 | MARK TIRE CAUTION | 1 | $9.51 USD | View product → | |
