F12 — Fuel Tank

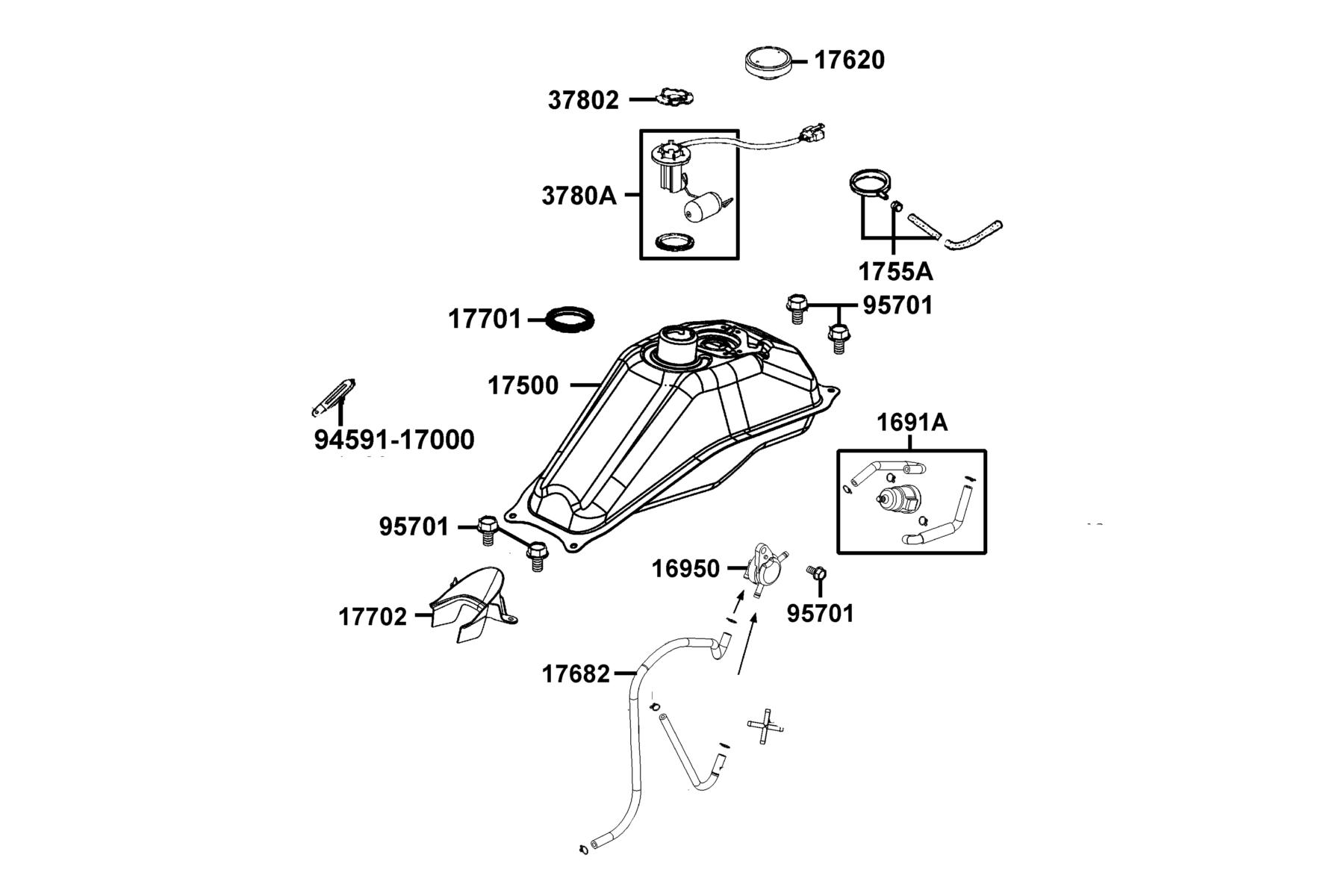

The Fuel Tank diagram contains 12 genuine OEM parts for the KYMCO K-PIPE 125(2019~). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 1691A-ACA5-M30 | "TUBE COMP FUEL.,STRAINER-CARB" | 1 | $90.21 USD | View product → | |
| 2 | 16950-LKL5-E30 | AUTO COCK ASSY FUEL | 1 | $147.45 USD | View product → | |
| 3 | 17500-LKL5-C00 | TANK COMP FUEL | 1 | $235.23 USD | View product → | |
| 4 | 1755A-LGR5-E10 | TRAY ASSY FUEL CAP | 1 | $65.37 USD | View product → | |
| 5 | 17620-LKL5-E30 | "CAP COMP.,FUEL FILLER" | 1 | $88.17 USD | View product → | |
| 6 | 17682-LKL5-C00 | TUBE FUEL (TANK TO STRAIN) | 1 | $19.20 USD | View product → | |
| 7 | 17701-LKL5-E30 | RUBBEER TANK COVER | 1 | $5.22 USD | View product → | |
| 8 | 17702-LKL5-E30-N1R | PLATE SPLASH GUARD | 1 | $7.53 USD | View product → | |
| 9 | 37802-LBA8-C10 | RT FUEL UNIT | 1 | $5.58 USD | View product → | |
| 10 | 3780A-LKL5-E30 | FUEL UNIT ASSY | 1 | $70.20 USD | View product → | |
| 11 | 94591-17000 | CLIP 1*70 | 2 | $3.18 USD | View product → | |
| 12 | 95701-06012-07G | BOLT FLANGE 6*12 (K) | 5 | $0.99 USD | View product → |
