F14 — Body Cover

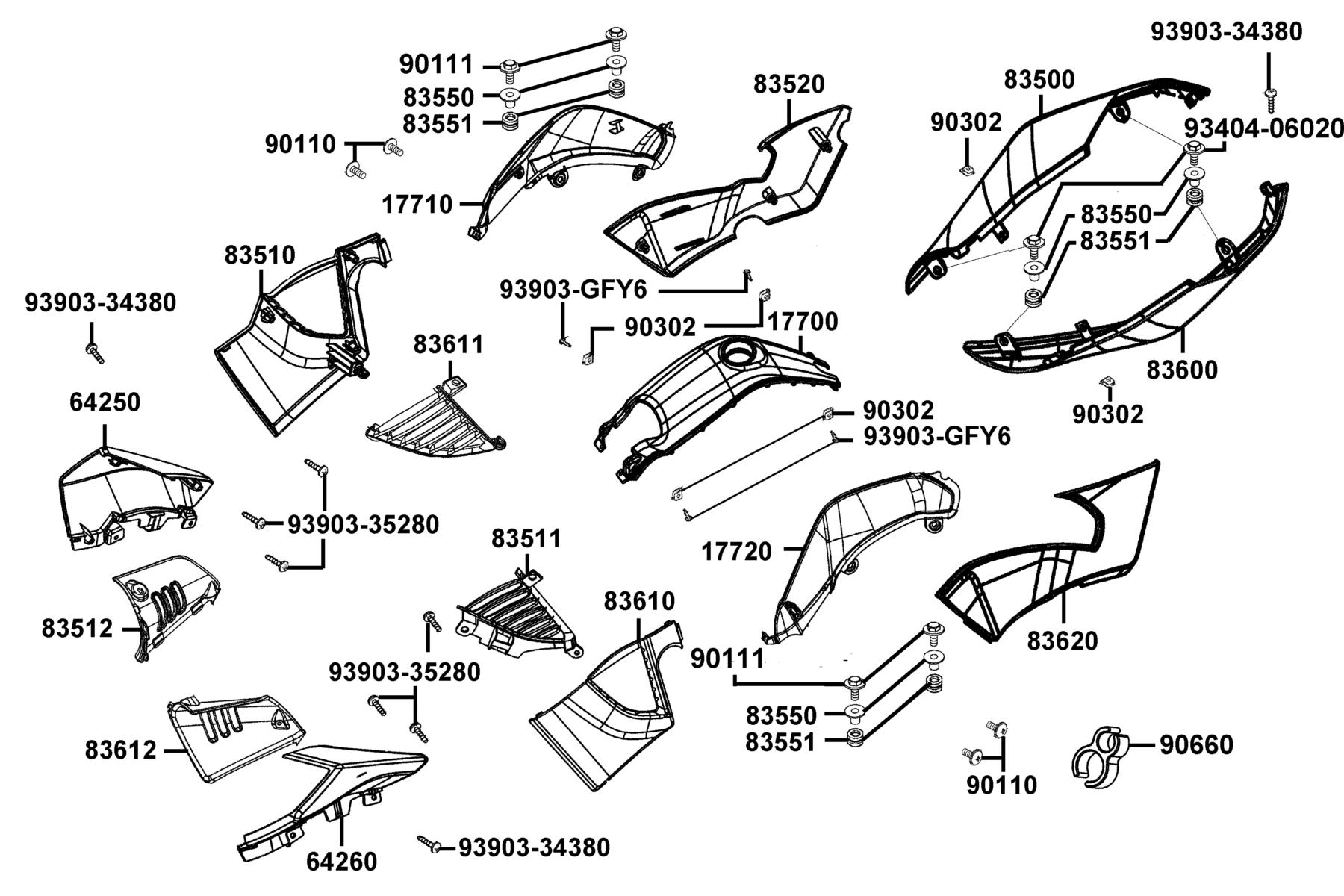

The Body Cover diagram contains 25 genuine OEM parts for the KYMCO K-PIPE 125(2019~). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 17700-LKL5-E30-NEP | "COVER,TANK" | 1 | $141.63 USD | View product → | |
| 2 | 17710-LKL5-E30-YYP | "COVER,R TANK SIDE" | 1 | $41.10 USD | View product → | |
| 3 | 17720-LKL5-E30-YYP | "COVER,L TANK SIDE" | 1 | $41.10 USD | View product → | |
| 4 | 64250-LKL5-E30-N8P | COVER R HORN | 1 | $116.01 USD | View product → | |
| 5 | 64260-LKL5-E30-N8P | COVER L HORN | 1 | $116.01 USD | View product → | |
| 6 | 83500-LKL5-E30-NEP | COVER R BODY | 1 | $98.64 USD | View product → | |
| 7 | 83510-LKL5-E30-N1R | "GRILL, R SIDE" | 1 | $15.99 USD | View product → | |
| 8 | 83511-LKL5-E30-N1P | "GRILL ,R SIDE" | 1 | $72.87 USD | View product → | |
| 9 | 83512-LKL5-E30-YYP | "COVER B ,R WINKER" | 1 | $21.39 USD | View product → | |
| 10 | 83520-LKL5-E30-N1R | COVER R SIDE | 1 | $29.49 USD | View product → | |
| 11 | 83550-KEC8-C00 | COLLAR | 8 | $1.86 USD | View product → | |
| 12 | 83551-KEC8-C10 | RUBBER | 8 | $3.96 USD | View product → | |
| 13 | 83600-LKL5-E30-NEP | COVER L BODY | 1 | $98.64 USD | View product → | |
| 14 | 83610-LKL5-E30-N1R | "GRILL, L SIDE" | 1 | $15.99 USD | View product → | |
| 15 | 83611-LKL5-E30-N1P | "GRILL ,L SIDE" | 1 | $76.50 USD | View product → | |
| 16 | 83612-LKL5-E30-YYP | "COVER B ,L WINKER" | 1 | $21.39 USD | View product → | |
| 17 | 83620-LKL5-E30-N1R | COVER L SIDE | 1 | $29.49 USD | View product → | |
| 18 | 90110-GLW0-C00 | SCREW SPECIAL 6*14(CR) | 4 | $8.16 USD | View product → | |
| 19 | 90111-06016-07G | BOLT FLANGE 6*16 (K) | 4 | $4.65 USD | View product → | |
| 20 | 90302-SDA4-C01 | NUT SPRING 4MM | 6 | $0.99 USD | View product → | |
| 21 | 90660-KNBN-C00 | CLAMPER TUBE | 2 | $4.65 USD | View product → | |
| 22 | 93404-06020-07G | BOLT-WASH 6x20 | 4 | $3.18 USD | View product → | |
| 23 | 93903-34380-G | SCREW TAPPING 4*12 (KG) | 3 | $2.73 USD | View product → | |
| 24 | 93903-35280-G | SCREW TAPPING 5*12 (K) | 6 | $0.99 USD | View product → | |
| 25 | 93903-GFY6-C01 | SCREW TAPPING 4*14(K) | 4 | $4.92 USD | View product → |
