F21 — Rear Cushion

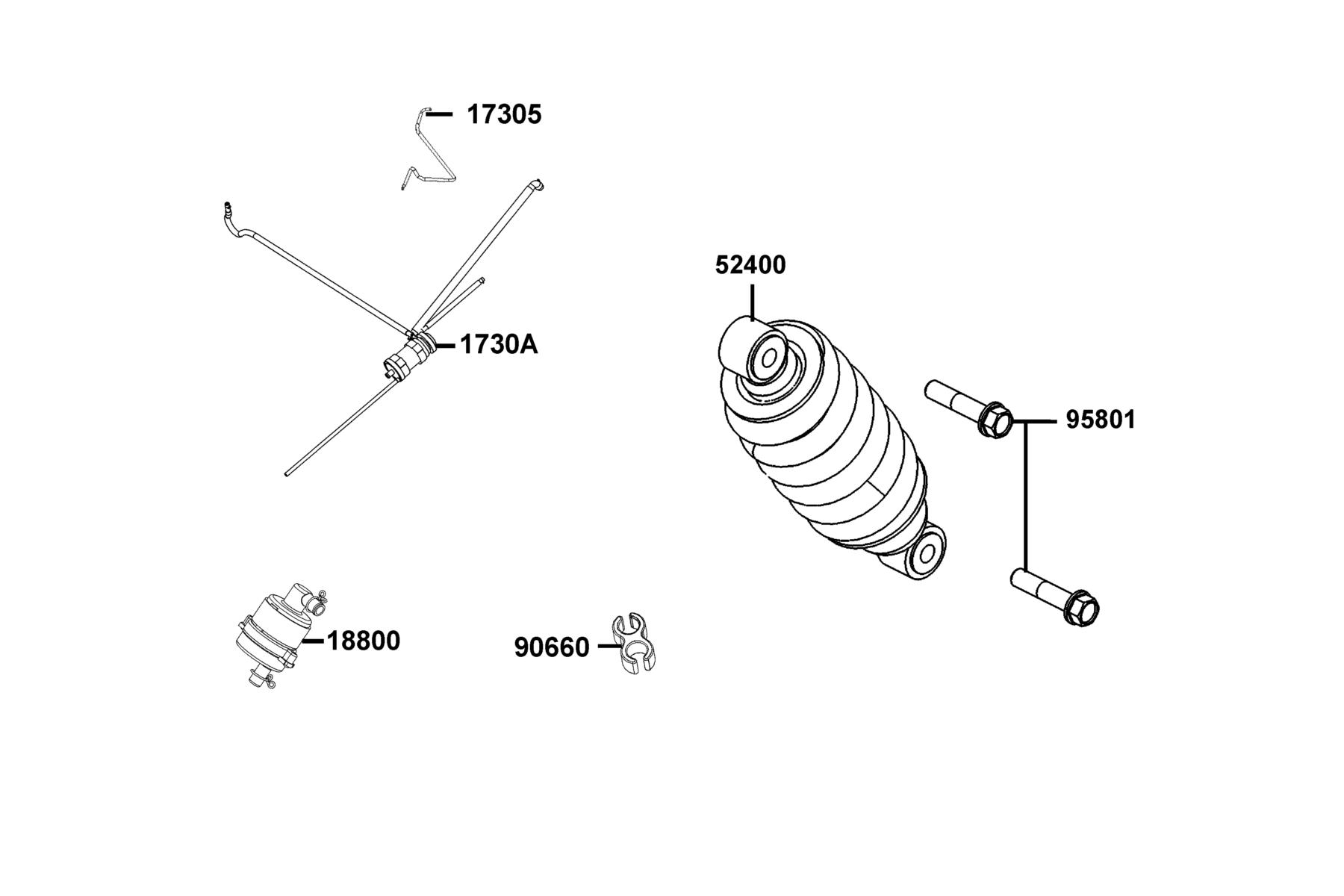

The Rear Cushion diagram contains 6 genuine OEM parts for the KYMCO K-PIPE 125(2019~). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 17305-ACA5-M30 | TUBE ASSY FUEL | 1 | — | Part details → | |
| 2 | 1730A-ACA5-M30 | CANISTER-PCV ASSY | 1 | $143.04 USD | View product → | |
| 3 | 18800-LKL5-C00 | AI CLEANER ASSY | 1 | $84.21 USD | View product → | |
| 4 | 52400-LKL5-E30-N1S | CUSHION ASSY REAR | 1 | $424.38 USD | View product → | |
| 5 | 90660-KGBG-C00 | CLAMPER TUBE | 1 | $0.99 USD | View product → | |
| 6 | 95801-10045-07G | BOLT FLANGE 10*45 | 2 | $13.77 USD | View product → |
