F17 — Starter Kick

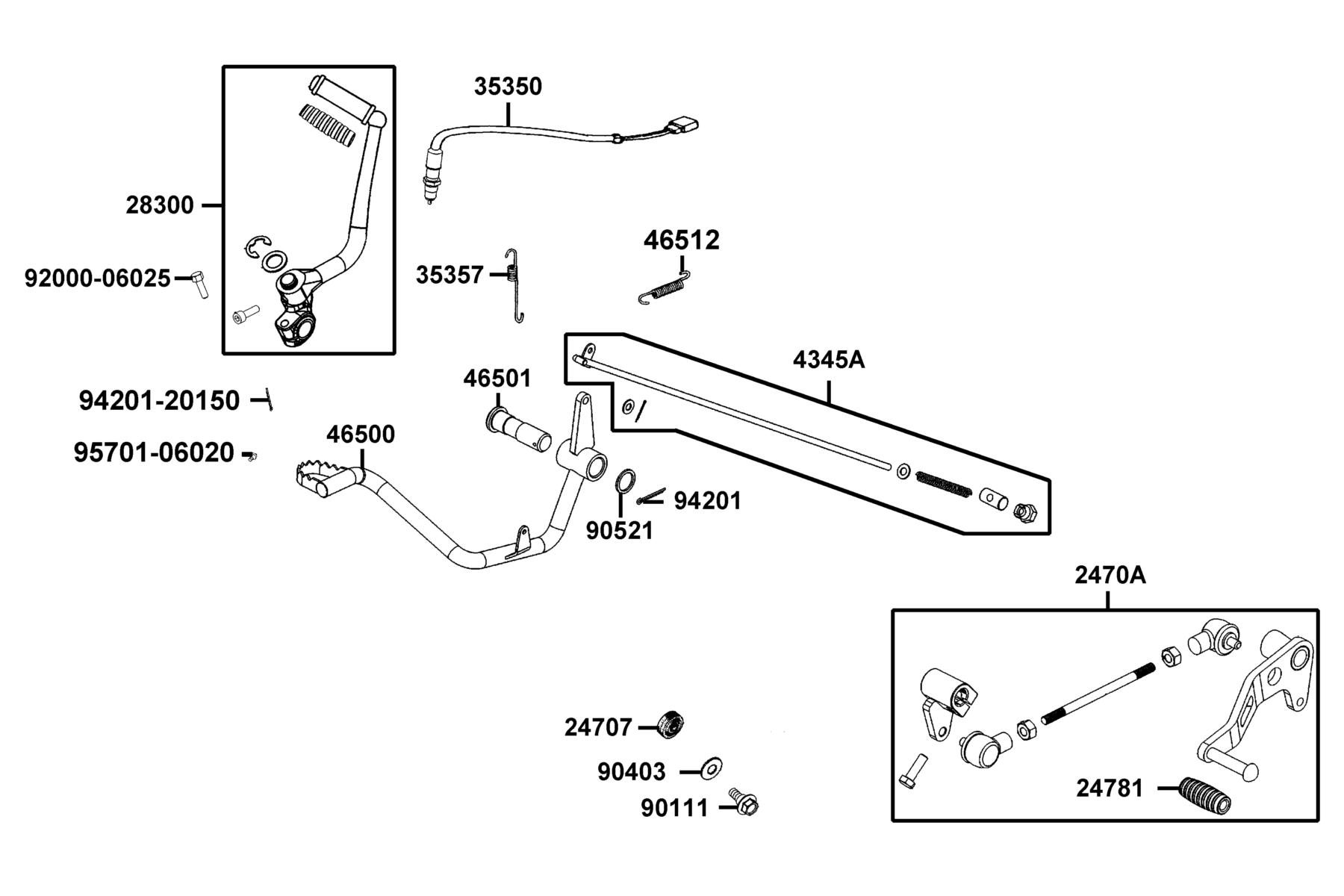

The Starter Kick diagram contains 17 genuine OEM parts for the KYMCO K-PIPE 125(2019~). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 24707-LKL5-E30 | RUBBER TANK COVER | 1 | $1.26 USD | View product → | |
| 2 | 2470A-ACA5-M30 | PEDAL ASSY CHANGE | 1 | $95.61 USD | View product → | |
| 3 | 24781-4K49-C00 | RUBBER CHANGE PEDAL | 1 | $3.75 USD | View product → | |
| 4 | 28300-LKL5-E30 | ARM ASSY KICK STARTER | 1 | $93.30 USD | View product → | |
| 5 | 35350-LKL5-E30 | SW ASSY RR STOP | 1 | $33.15 USD | View product → | |
| 6 | 35357-LBA8-C10 | SPG STOP SW | 1 | $9.84 USD | View product → | |
| 7 | 4345A-ACA5-BJ0 | ROD ASSY RR BRAKE | 1 | $25.56 USD | View product → | |
| 8 | 46500-ACA5-BJ0 | PEDAL RR BRAKE | 1 | $58.53 USD | View product → | |
| 9 | 46501-LKL5-E30 | SHAFT RR BRK PEDAL | 1 | $35.97 USD | View product → | |
| 10 | 46512-LKL5-E30 | SPG BRK PEDAL | 1 | $10.50 USD | View product → | |
| 11 | 90111-1G87-C01 | BOLT FLANGE 6MM | 1 | $5.31 USD | View product → | |
| 12 | 90403-LKL5-E30 | WASHER | 1 | $4.65 USD | View product → | |
| 13 | 90521-LKL5-E31 | DIA WASHER 17*22 | 1 | $4.65 USD | View product → | |
| 14 | 92000-06025-07G | BOLT HEX 6*25 (K) | 1 | $4.65 USD | View product → | |
| 15 | 94201-20150-08G | PIN SPLIT 2*15 | 1 | $4.32 USD | View product → | |
| 16 | 94201-30250-07G | PIN SPLIT 3*25 | 1 | $4.65 USD | View product → | |
| 17 | 95701-06020-07G | BOLT FLANGE 6*20 (K) | 1 | $0.99 USD | View product → |
