F16 — Muffler

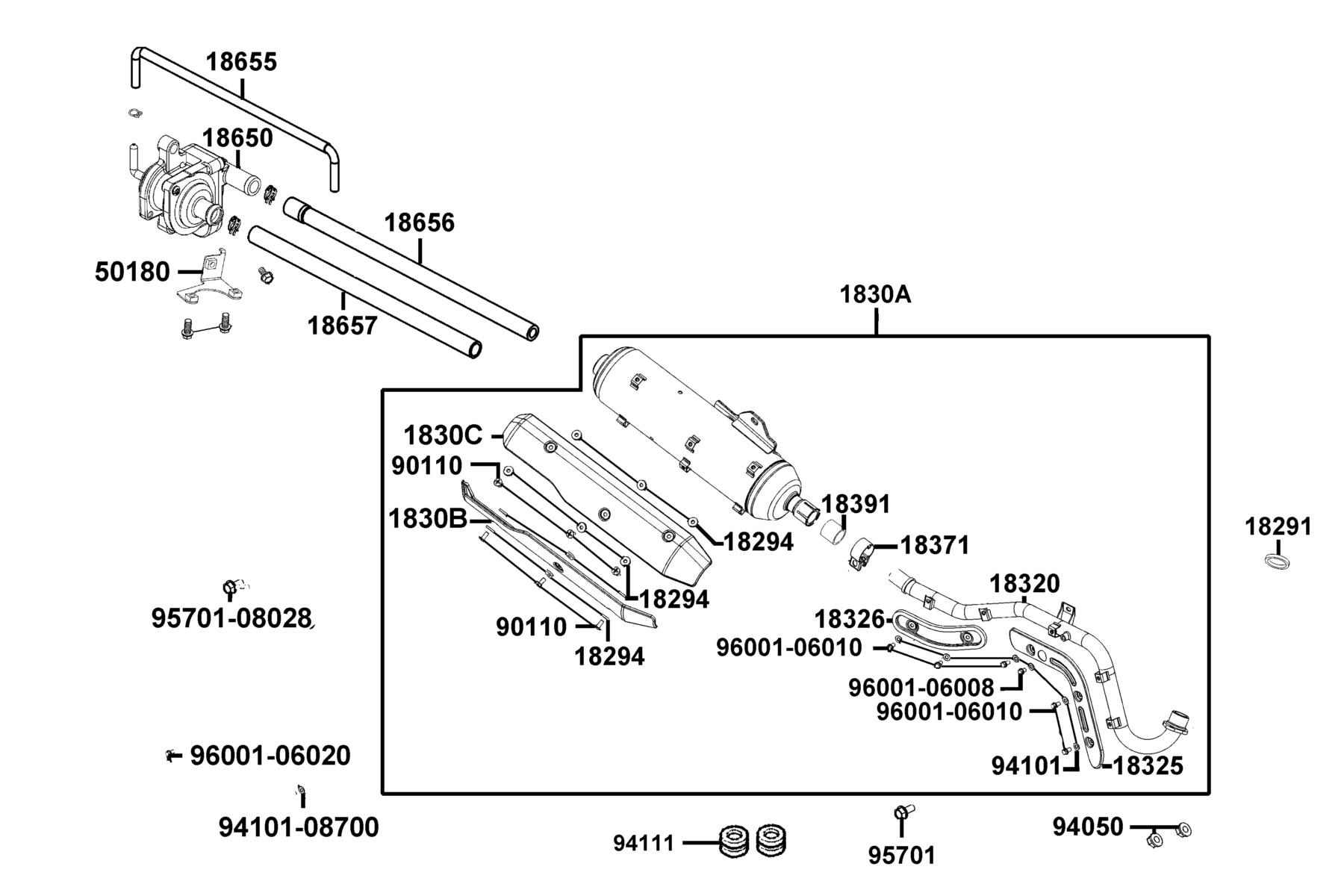

The Muffler diagram contains 25 genuine OEM parts for the KYMCO K-PIPE 125(2019~). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 18291-GHC8-C01 | GASKET EXH PIPE | 1 | $9.84 USD | View product → | |
| 2 | 18294-PUA3-B50 | PACKING INNER PROTECTOR | 12 | $4.20 USD | View product → | |
| 3 | 1830A-ACA5-M30 | MUFFLER ASSY EXH | 1 | $718.08 USD | View product → | |
| 4 | 1830B-LKL5-E30 | PROTECTOR A MUFFLER | 1 | $69.09 USD | View product → | |
| 5 | 1830C-LKL5-E30 | PROTECTOR B MUFFLER | 1 | $69.09 USD | View product → | |
| 6 | 18320-ACA5-BJ0 | PIPE EXHAUST | 1 | $41.10 USD | View product → | |
| 7 | 18325-LKL5-E30 | PROTECTOR A EXHAUST | 1 | $94.11 USD | View product → | |
| 8 | 18326-LKL5-E30 | PROTECTOR B EXHAUST | 1 | $79.32 USD | View product → | |
| 9 | 18371-KED9-900 | BAND A MUFFLER | 1 | $17.13 USD | View product → | |
| 10 | 18391-KED9-900 | PARKING MUFFLER | 1 | $68.73 USD | View product → | |
| 11 | 18650-LBA8-E80 | AICV ASSY | 1 | $111.63 USD | View product → | |
| 12 | 18655-LKL5-E30 | TUBE AIR/C-AICV | 1 | $58.56 USD | View product → | |
| 13 | 18656-LKL5-C00 | TUBE ASSY MUFF-AICV | 1 | $68.34 USD | View product → | |
| 14 | 18657-LKL5-C00 | TUBE ASSY AICV-INLET PIPE | 1 | $37.05 USD | View product → | |
| 15 | 50180-LKL5-E30 | STAY AICV | 1 | $10.50 USD | View product → | |
| 16 | 90110-GLW0-C00 | SCREW SPECIAL 6*14(CR) | 6 | $8.16 USD | View product → | |
| 17 | 94050-06070-G | NUT FLANGE 6MM | 2 | $0.99 USD | View product → | |
| 18 | 94101-06200 | WASHER PLAIN 6MM | 1 | $4.92 USD | View product → | |
| 19 | 94101-08700-G | WASHER PLAIN 8MM (K) | 1 | $4.11 USD | View product → | |
| 20 | 94111-08700-G | WASHER SPG 8MM (K) | 1 | $4.65 USD | View product → | |
| 21 | 95701-06012-07G | BOLT FLANGE 6*12 (K) | 2 | $0.99 USD | View product → | |
| 22 | 95701-08028-07G | BOLT FLANGE 8*28 (K) | 1 | $8.97 USD | View product → | |
| 23 | 96001-06008-07 | BOLT FLANGE 6X8 | 1 | $4.92 USD | View product → | |
| 24 | 96001-06010-02 | BOLT FLANGE SH 6*10 | 5 | $3.00 USD | View product → | |
| 25 | 96001-06020-07G | BOLT FLANGE SH 6*20 (G) | 5 | $0.99 USD | View product → |
